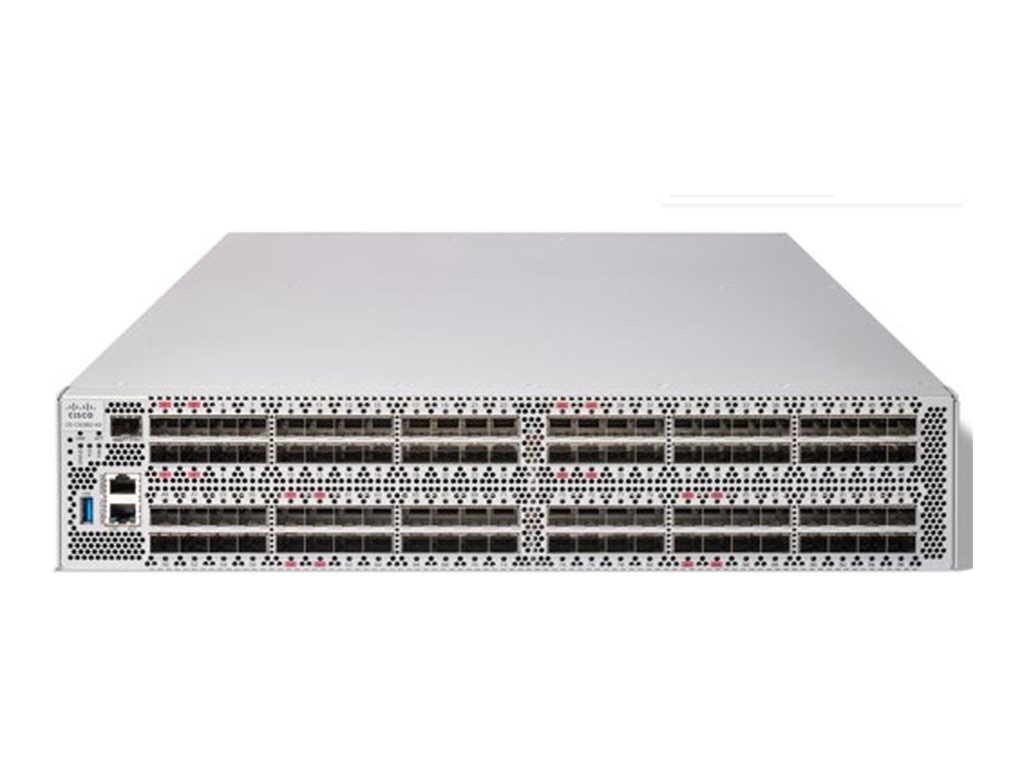

C-Series - switch - managed - 96 x 64Gb Fibre Channel SFP+ - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | HPE SN6730C 64Gb 96/96 64Gb Short Wave SFP+ Fibre Channel Switch - C-Series - switch - 96 ports - managed - rack-mountable |
| Device Type | Switch - 96 ports - managed |
| Enclosure Type | Rack-mountable 2U |
| Subtype | Fibre Channel |
| Ports | 96 x 64Gb Fibre Channel SFP+ |
| Performance | Aggregate switching bandwidth: 6 Tbps |
| Remote Management Protocol | SNMP 1, SNMP 3, HTTP, HTTPS, SSH-2, CLI, SFTP, LDAP, RMON |
| Features | NPIV technology, SPAN mode, POST, OHMS, Link Diagnostic, FCS, Address Resolution Protocol, NPV Gateway mode, REST, RSCN support |
| Power | AC 90-140/180-264 V (50/60 Hz) |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.4 in x 23.9 in x 3.4 in |
| Weight | 44.09 lbs |
| System Requirements | Cisco MDS 9000 NX-OS Release 9.4(1) |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Switch - 96 ports - managed |
| Enclosure Type | Rack-mountable 2U |
| Subtype | Fibre Channel |
| Ports | 96 x 64Gb Fibre Channel SFP+ |
| Performance | Aggregate switching bandwidth: 6 Tbps |
| Fibre Channel | FAIS, FAIS-2, FC-BB-2, FC-BB-3, FC-BB-4, FC-BB-5, FC-BB-6, FC-DA, FC-DA-2, FC-FS, FC-FS-2, FC-FS-3, FC-FS-4, FC-GS-3, FC-GS-4, FC-GS-5, FC-GS-6, FC-GS-7, FC-GS-8, FC-LS, FC-LS-2, FC-LS-3, FC-LS-4, FC-MI, FC-MI-2, FC-MI-3, FC-MSQS, FCP, FCP-2, FCP-3, FCP-4, FC-PH, FC-PH-1, FC-PH-2, FC-PH-3, FC-PI, FC-PI-6, FC-PI-7, FC-SB-2, FC-SB-3, FC-SB-4, FC-SB-5, FC-SP, FC-SP-2, FC-SW-2, FC-SW-3, FC-SW-4, FC-SW-5, FC-SW-6, FC-SW-7, FC-VI |
| Remote Management Protocol | SNMP 1, SNMP 3, HTTP, HTTPS, SSH-2, CLI, SFTP, LDAP, RMON |
| Authentication Method | RADIUS, TACACS+, FCAP |
| Features | NPIV technology, SPAN mode, POST, OHMS, Link Diagnostic, FCS, Address Resolution Protocol, NPV Gateway mode, REST, RSCN support |
| Expansion / Connectivity | |
| Interfaces | 96 x 64Gb Fibre Channel SFP+ short wave ¦ 1 x serial (RS-232) console ¦ 1 x 10/100/1000 Base-T RJ-45 out-of-band network management |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 1 year - on-site - response time: next business day |
| Miscellaneous | |
| Compliant Standards | UL 60950, CAN/CSA-C22.2 No. 60950-1, EN 60950, IEC 60950, TS001, AS/NZS 3260, IEC 60825, EN 60825, 21 CFR 1040, FCC CFR 47 Part 15 Class A, ICES-003 Class A, EN 55022 Class A, CISPR 22 Class A, AS/NZS 3548 Class A, VCCI Class A, EN55024, EN50082-1, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1 |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Power Provided | 1400 Watt |
| Voltage Required | AC 90-140/180-264 V (50/60 Hz) |
| Software / System Requirements | |
| OS Required | Cisco MDS 9000 NX-OS Release 9.4(1) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 5 - 95% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 17.4 in |
| Depth | 23.9 in |
| Height | 3.4 in |
| Weight | 44.09 lbs |
