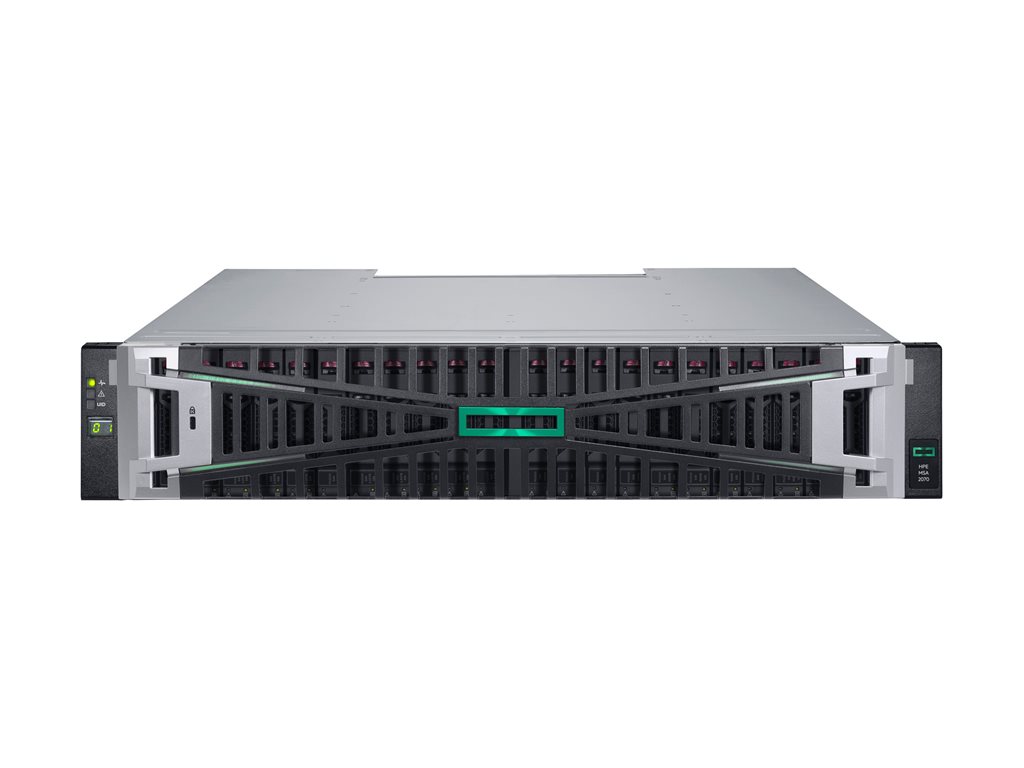

Solid state drive array - 92 TB - 24 bays (SAS-3) - SSD 7.68 TB x 12 - 16Gb Fibre Channel (external) - rack-mountable - 2U - with 4 x 16Gb SFP FC XCVR transceiver
| Main Specifications | |
|---|---|
| Product Description | HPE Modular Smart Array 2070 16Gb Fibre Channel SFF Storage - SSD array |
| Device Type | Solid state drive array |
| Enclosure Type | Rack-mountable - 2U |
| Bundled with | 4 x 16Gb SFP FC XCVR transceiver |
| Total Array Capacity | 92 TB |
| Max Supported Capacity | 737.28 TB |
| Interface | 16Gb Fibre Channel |
| Installed Devices / Modules Qty | 12 (installed) / 24 (max) |
| Supported Drives | SAS-3 |
| Storage Controller | RAID (SAS 12Gb/s) - RAID 0, 1, 5, 6, 10, MSA-DP+ |
| Storage Controller Quantity | 2 |
| Hard Drive | 12 x 7.68 TB SSD SAS 12Gb/s |
| OS Required | Microsoft Windows Server, VMware vSphere, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Oracle Linux, Citrix Hypervisor, Citrix XenServer |
| Power | AC 100-240 V 50/60 Hz |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.5 in x 20 in x 3.5 in |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Solid state drive array |
| Enclosure Type | Rack-mountable - 2U |
| Bundled with | 4 x 16Gb SFP FC XCVR transceiver |
| Expansion / Connectivity | |
| Expansion Bays | 24 (total) / 12 (free) - 2.5" SFF |
| Interfaces | 8 x 16Gb Fibre Channel ¦ 4 x mini-USB 2.0 (management) ¦ 2 x Ethernet 1000Base-T (management) - RJ-45 ¦ 2 x SAS 12Gb/s (expansion port) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts - 3 years |
| Miscellaneous | |
| Features | SMTP support, SNMP support |
| Compliant Standards | ASHRAE Class A3, UL, CSA 62368-1, EN 62368-1, EU Lot 9, VCCI Class A, FCC Class A certified, ICES-003 Class A, EN 55032 Class A, CISPR 32 Class A, EN 61000-3-2, EN 61000-3-3, RoHS, China RoHS, WEEE |
| Processor | |
| CPU | No CPU |
| Storage | |
| Total Array Capacity | 92 TB |
| Max Supported Capacity | 737.28 TB |
| HDD Array External Interface | 16Gb Fibre Channel |
| Power | |
| Power Device | 2 x internal power supply - hot-plug |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 100-240 V 50/60 Hz |
| Power Provided | 580 watt |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | Up to 85% RH |
| Storage Controller | |
| Type | RAID (16Gb Fibre Channel) |
| Installed Qty | 2 |
| Interface Type | SAS 12Gb/s |
| Data Transfer Rate | 1.2 GBps |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, MSA-DP+ |
| System Requirements | |
| OS Required | Microsoft Windows Server, VMware vSphere, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Oracle Linux, Citrix Hypervisor, Citrix XenServer |
| Storage Controller (2nd) | |
| Installed Qty | 2 |
| Hard Drive | |
| Type | SSD |
| Capacity | 12 x 7.68 TB |
| Interface Type | SAS 12Gb/s |
| Dimensions & Weight | |
| Width | 17.5 in |
| Depth | 20 in |
| Height | 3.5 in |
| Environmental Standards | |
| ENERGY STAR Certified | Yes |
| Chassis | |
| Installed Devices / Modules Qty | 12 |
| Supported Devices / Modules Qty | 24 |
| Supported Drives | SAS-3 |
