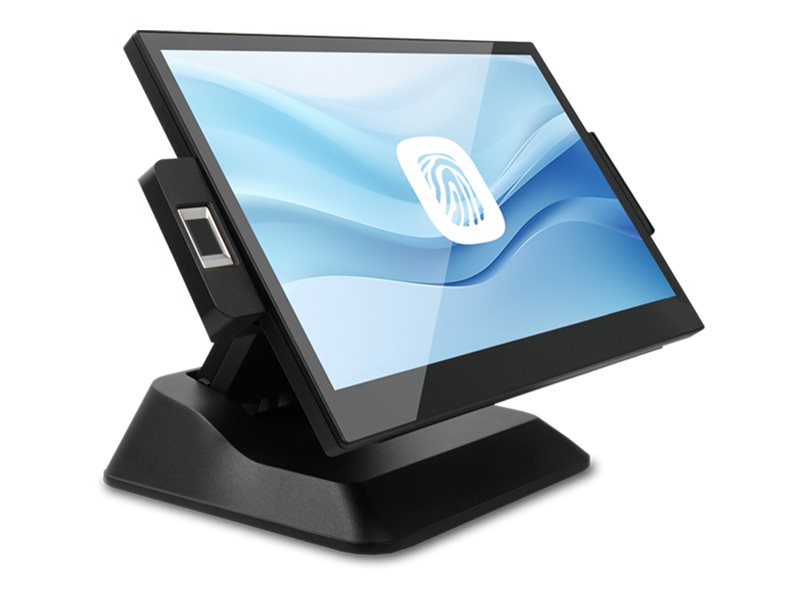

All-in-one Core i3 i3-12100TE / up to 4 GHz - RAM 8 GB - SSD 128 GB - NVMe - UHD Graphics 730 - Gigabit Ethernet - Win 11 IoT - monitor: LED 15.6" 1920 x 1080 (Full HD) touchscreen
| Main Specifications | |
|---|---|
| Product Description | Touch Dynamic Breeze Ultra WS - all-in-one Core i3 i3-12100TE 2.1 GHz - 8 GB - SSD 128 GB - LED 15.6" |
| Type | Personal computer - all-in-one |
| Processor | Intel Core i3 (12th Gen) i3-12100TE / 2.1 GHz (up to 4 GHz, (Quad-Core) |
| Cache Memory | 12 MB |
| Cache Per Processor | 12 MB |
| RAM | 8 GB (installed) / 64 GB (max) - DDR4 SDRAM |
| Storage Controller | RAID |
| Hard Drive | SSD 128 GB - M.2 - NVM Express (NVMe) |
| Optical Storage | No optical drive |
| Monitor | 15.6" - LED - 1920 x 1080 (Full HD) - touchscreen |
| Graphics Controller | Intel UHD Graphics 730 |
| Networking | 1GbE |
| OS Provided | Windows 11 IoT |
| Dimensions (WxDxH) | 14.5 in x 8.8 in x 11.5 in |
| Manufacturer Warranty | Limited warranty - 3 years |
| General | |
| Type | Personal computer |
| Product Form Factor | All-in-one - with foldable base |
| Built-in Devices | 11.6" customer display |
| Expansion / Connectivity | |
| Slots | 2 (total) / 1 (free) x M.2 Card |
| Interfaces | 2 x USB 2.0 - Type A ¦ 4 x USB 3.0 - Type A ¦ 1 x USB-C ¦ 2 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x cash drawer - RJ-11 ¦ 1 x Mini DisplayPort ¦ 2 x serial (RS-232) - DB-9 ¦ 1 x DisplayPort ¦ 1 x audio line-out ¦ 1 x microphone ¦ 1 x USB (powered (DC 12V)) ¦ 1 x USB (powered (DC 24V)) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| RAM | |
| Installed Size | 8 GB (installed) / 64 GB (max) |
| Technology | DDR4 SDRAM |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (total) / 1 (empty) |
| Configuration Features | 1 x 8 GB |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Power | |
| Voltage Required | 19 V |
| Power Consumption Operational | 180 watt |
| Storage Controller | |
| Type | RAID |
| RAID Level | RAID 0, RAID 1 |
| Cache Memory | |
| Installed Size | 12 MB |
| Cache Per Processor | 12 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | LED |
| Touchscreen | Yes |
| Diagonal Size | 15.6" |
| Native Resolution | 1920 x 1080 (Full HD) |
| Widescreen Display | Yes |
| Monitor Features | Projected Capacitive Touch (P-CAP) technology |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics 730 |
| Video Interfaces | Mini DisplayPort, DisplayPort |
| Operating System / Software | |
| OS Provided | Windows 11 IoT |
| Hard Drive | |
| Type | SSD - M.2 |
| Capacity | 1 x 128 GB |
| Features | NVM Express (NVMe) |
| Dimensions & Weight | |
| Width | 14.5 in |
| Depth | 8.8 in |
| Height | 11.5 in |
| Processor / Chipset | |
| CPU | Intel Core i3 (12th Gen) i3-12100TE |
| Clock Speed | 2.1 GHz |
| Max Turbo Speed | 4 GHz |
| Number of Cores | Quad-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
