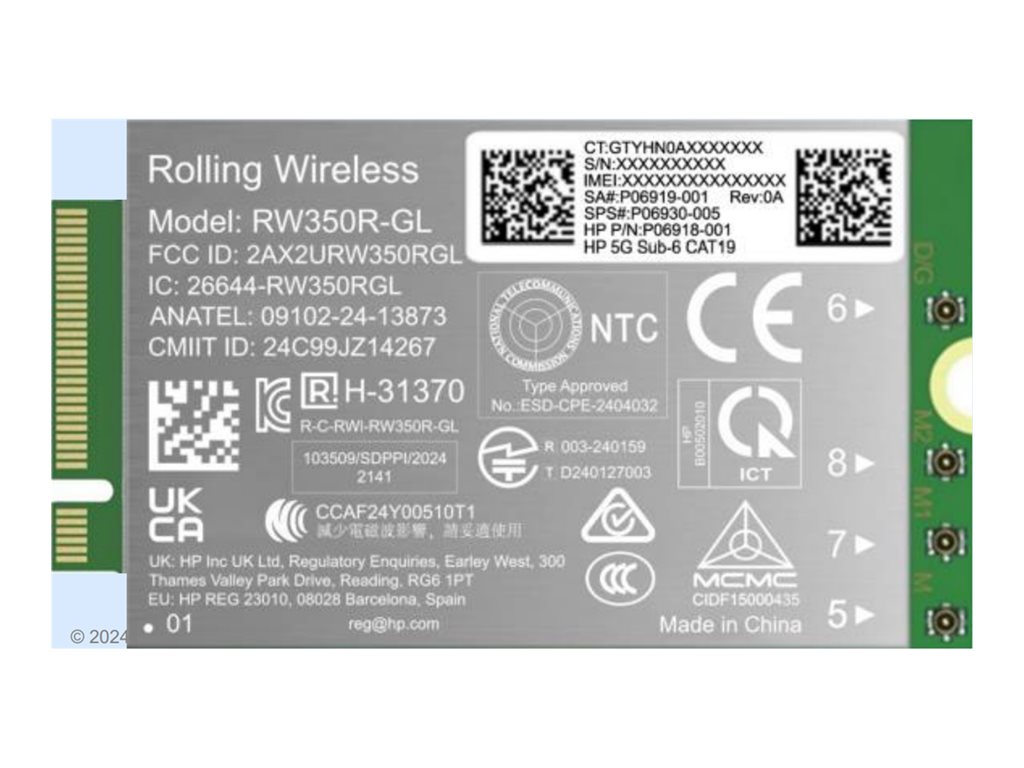

Wireless cellular modem - 5G LTE - M.2 Card
| Main Specifications | |
|---|---|
| Product Description | HP - wireless cellular modem - 5G LTE |
| Device Type | Wireless cellular modem - M.2 Card |
| Form Factor | Internal |
| Line Coding Format | 256 QAM |
| Cellular Protocol | 5G Sub-6 Ghz, HSPA+, UMTS, TDD LTE, FDD LTE |
| System Requirements | Windows 10, Windows 11 |
| Dimensions (WxDxH) | 2 in x 1.2 in x 0.1 in |
| Weight | 0.25 oz |
| General | |
| Device Type | Wireless cellular modem |
| Form Factor | Internal |
| Built-in Devices | GPS, GLONASS, Galileo, BDS, QZSS |
| Miscellaneous | |
| Included Accessories | Screw, paper bag, outer tube, inner tube |
| Compliant Standards | 3GPP Release 15, 3GPP Release 8 |
| Networking | |
| Features | eSIM support |
| Software / System Requirements | |
| OS Required | Windows 10, Windows 11 |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 149 °F |
| Modem | |
| Bus | M.2 Card |
| Connectivity Technology | Wireless |
| Cellular Protocol | 5G Sub-6 Ghz, HSPA+, UMTS, TDD LTE, FDD LTE |
| Line Coding Format | 256 QAM |
| Features | 7 nm process |
| Dimensions & Weight | |
| Width | 2 in |
| Depth | 1.2 in |
| Height | 0.1 in |
| Weight | 0.25 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 9.1 in |
| Shipping Depth | 5.8 in |
| Shipping Height | 0.4 in |
| Shipping Weight | 2.08 oz |
