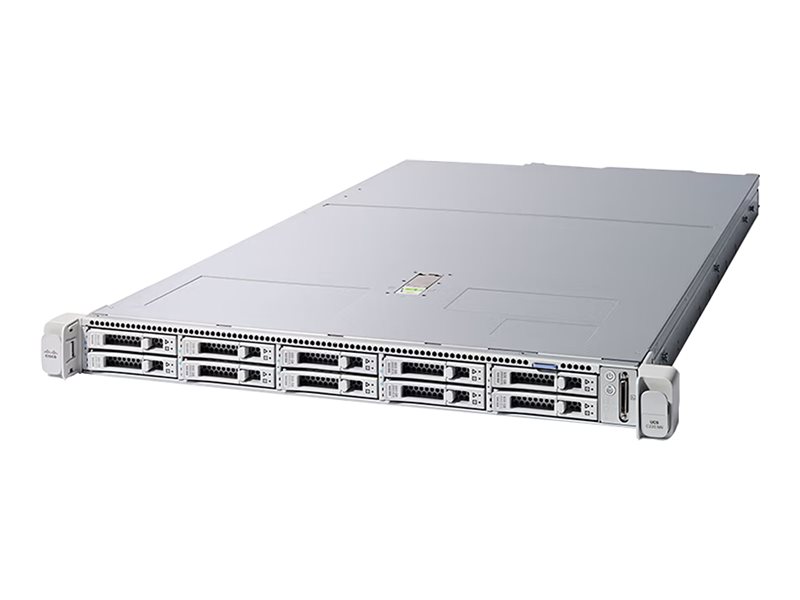

Server - rack-mountable 1U - 2-way - no CPU - RAM 0 GB - SATA/SAS - hot-swap 2.5" bay(s) - no HDD - G200e - Gigabit Ethernet - monitor: none
| Main Specifications | |
|---|---|
| Product Description | Cisco Compute Hyperconverged with Nutanix 220c M8 All Flash - rack-mountable no CPU - 0 GB - no HDD |
| Type | Server - rack-mountable |
| Height (Rack Units) | 1U |
| Server Scalability | 2-way |
| Processor | No CPU |
| RAM | 0 GB (installed) / 8 TB (max) - DDR5 SDRAM |
| Server Storage Bays | Hot-swap 2.5" |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Graphics Controller | Matrox G200e |
| Video Memory | 8 MB |
| Networking | 1GbE |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 16.9 in x 30 in x 1.7 in |
| Manufacturer Warranty | Limited warranty - replacement - 3 years - response time: next business day |
| General | |
| Type | Server |
| Product Form Factor | Rack-mountable - 1U |
| Built-in Devices | 8 hot-swap fans, RFID tag |
| Server Scalability | 2-way |
| Front Accessible Bays Qty | 10 |
| Hot-Swap Bays Qty | 10 |
| Expansion / Connectivity | |
| Bays | 16 (total) / 16 (free) x hot-swap E3.S |
| Slots | 3 (total) / 3 (free) x expansion slot (riser card only) ¦ 1 (total) / 1 (free) x mLOM |
| Interfaces | 1 x management (Gigabit Ethernet) - RJ-45 (1 rear) ¦ 1 x serial (RS-232) - RJ-45 (1 rear) ¦ 1 x VGA - DB-15 (1 rear) ¦ 2 x USB 3.0 - Type A (2 rear) ¦ 1 x KVM (1 in front) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 3 years - response time: next business day |
| Miscellaneous | |
| Compliant Standards | ACPI 6.2, WEEE, 2014/30/EU, 2014/35/EU, 47 CFR Part 15 Class A, AS/NZS 62368.1, AS/NZS CISPR32 Class A, CAN/CSA-C22.2 No. 60950-1, CAN/CSA-C22.2 No. 62368-1, CISPR 24, CISPR 32 Class A, CNS 15598-1:2020, EN 300 386, EN 300386 Class A, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN55024, GB 4943.1-2022, ICES-003 Class A, IEC/EN 60950-1, IEC/EN 61000-6-1, IEC/EN 62368-1, KS C 9832 Class A, KS C 9835, UL 60950-1, UL 62368-1, VCCI-CISPR 32 Class A |
| RAM | |
| Installed Size | 0 GB (installed) / 8 TB (max) |
| Technology | DDR5 SDRAM |
| Form Factor | DIMM 288-pin |
| Slots | 32 (total) / 32 (empty) |
| Networking | |
| Data Link Protocol | Gigabit Ethernet |
| Remote Management Controller | Intel Baseboard Management Controller (BMC), Cisco Integrated Management Controller |
| Power | |
| Device Type | Power supply - hot-plug |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 |
| Installed Qty | 0 |
| Max Supported Qty | 2 |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Matrox G200e |
| Video Memory | 8 MB |
| Video Interfaces | VGA |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 16.9 in |
| Depth | 30 in |
| Height | 1.7 in |
| Processor / Chipset | |
| CPU | No CPU |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
