Wireless router - DSL/WWAN 4-port switch - 1GbE Dual Band - 4G
| Main Specifications | |
|---|---|

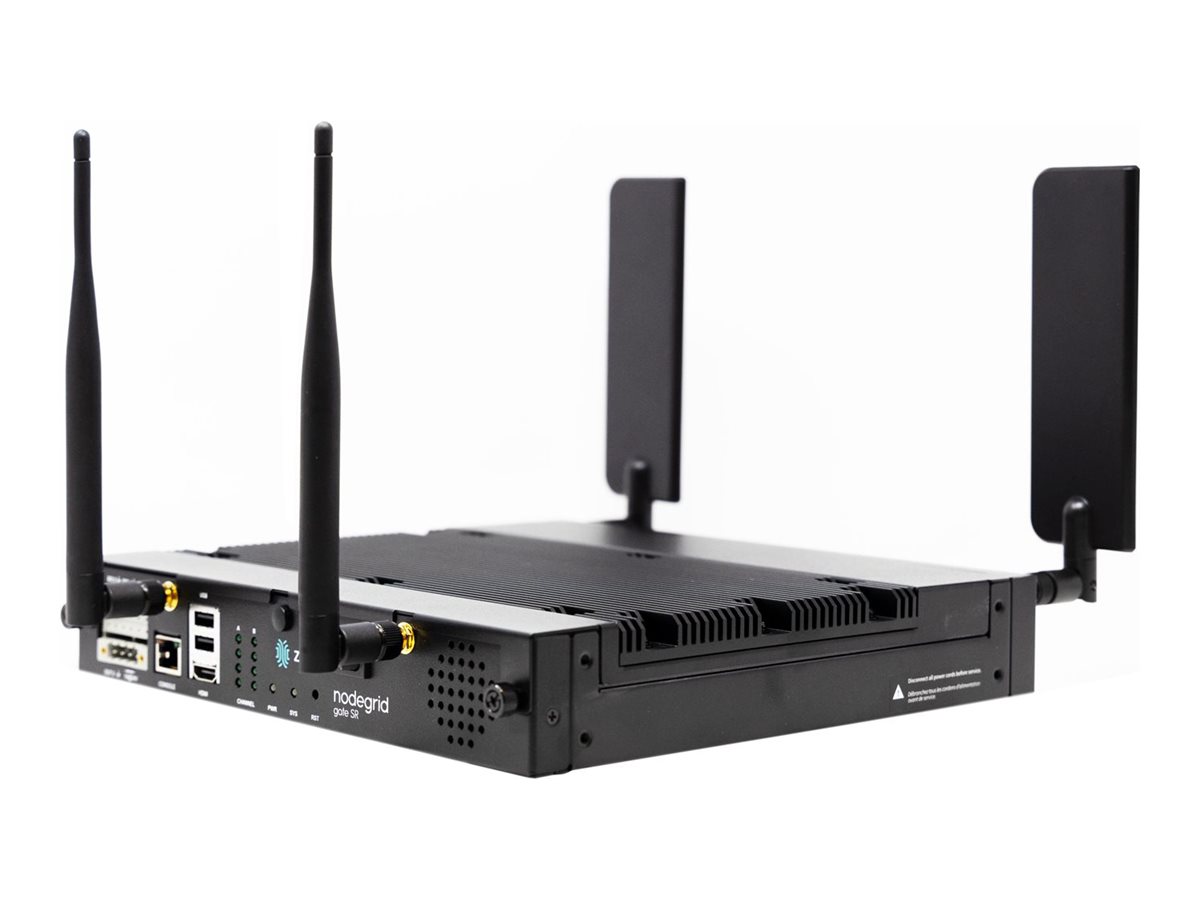

| Product Description | ZPE Nodegrid Gate SR - wireless router - DSL/WWAN - Wi-Fi 5 - 4G - desktop |
| Device Type | Wireless router - DSL modem / wireless cellular modem - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| Generation | 4G |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Frequency Band | 2.4 GHz / 5 GHz |
| Performance | Maximum data rate (5 GHz): 866 Mbps |
| Capacity | Simultaneous sessions: 1000+ |
| Network / Transport Protocol | TCP/IP, IPSec, HTTPs, IPv4, IPv6 |
| Remote Management Protocol | SNMP, Telnet, SSH |
| Features | DHCP server, Zero Touch Auto Provisioning, dual-stream (2x2), gateway mode, break-over SSH support, RESTful APIs, NTP support, auto-discovery, port sharing, port custom field support, port icon configuration, port search, WAN/ZPE Cloud, user levels of access, device clustering across multiple Nodegrid units, direct access by port name, Wi-Fi hotspot ready |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, X.509, IEEE 802.11n, IEEE 802.11ac |
| Power | DC 36 - 75 V |
| Dimensions (WxDxH) | 9.1 in x 9.5 in x 1.7 in |
| Weight | 31.74 oz |
| General | |
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Frequency Band | 2.4 GHz / 5 GHz |
| Performance | Maximum data rate (5 GHz): 866 Mbps |
| Capacity | Simultaneous sessions: 1000+ |
| Network / Transport Protocol | TCP/IP, IPSec, HTTPs, IPv4, IPv6 |
| Remote Management Protocol | SNMP, Telnet, SSH |
| Encryption Algorithm | SHA, MD5, TLS, 4096-bit RSA |
| Authentication Method | Kerberos, RADIUS, X.509 certificates, TACACS+, LDAP |
| Features | DHCP server, Zero Touch Auto Provisioning, dual-stream (2x2), gateway mode, break-over SSH support, RESTful APIs, NTP support, auto-discovery, port sharing, port custom field support, port icon configuration, port search, WAN/ZPE Cloud, user levels of access, device clustering across multiple Nodegrid units, direct access by port name, Wi-Fi hotspot ready |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, X.509, IEEE 802.11n, IEEE 802.11ac, TLS v1.2, TLS v1.0, TLS v1.1, SSL |
| Processor | 1 x Intel |
| RAM | 8 GB DDR4 SDRAM |
| Hard Drive | 128 GB |
| Expansion / Connectivity | |
| Interfaces | Serial: 8 x RJ-45 ¦ 2 x 10GBase-T - SFP+ ¦ LAN: 5 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ LAN: 4 x 10Base-T/100Base-TX/1000Base-T (PoE+) - RJ-45 ¦ 2 x GPIO ¦ 1 x DO ¦ 2 x SuperSpeed USB 3.0 - 9 pin USB Type A ¦ 2 x USB 2.0 - 4 pin USB Type A ¦ 1 x HDMI - 19 pin HDMI Type A |
| Expansion Slots | SIM |
| Power | |
| Voltage Required | DC 36 - 75 V |
| Power Consumption Operational | 45 Watt |
| Software / System Requirements | |
| OS Provided | Nodegrid OS (64-bit) |
| Software Included | Command Line Interface (CLI) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
| Communications | |
| Type | DSL modem / wireless cellular modem |
| Generation | 4G |
| Dimensions & Weight | |
| Width | 9.1 in |
| Depth | 9.5 in |
| Height | 1.7 in |
| Weight | 31.74 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 14.7 in |
| Shipping Depth | 13.7 in |
| Shipping Height | 7 in |
| Shipping Weight | 7.94 lbs |
| Antenna | |
| Antenna | External detachable |
| Antenna Qty | 4 |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
