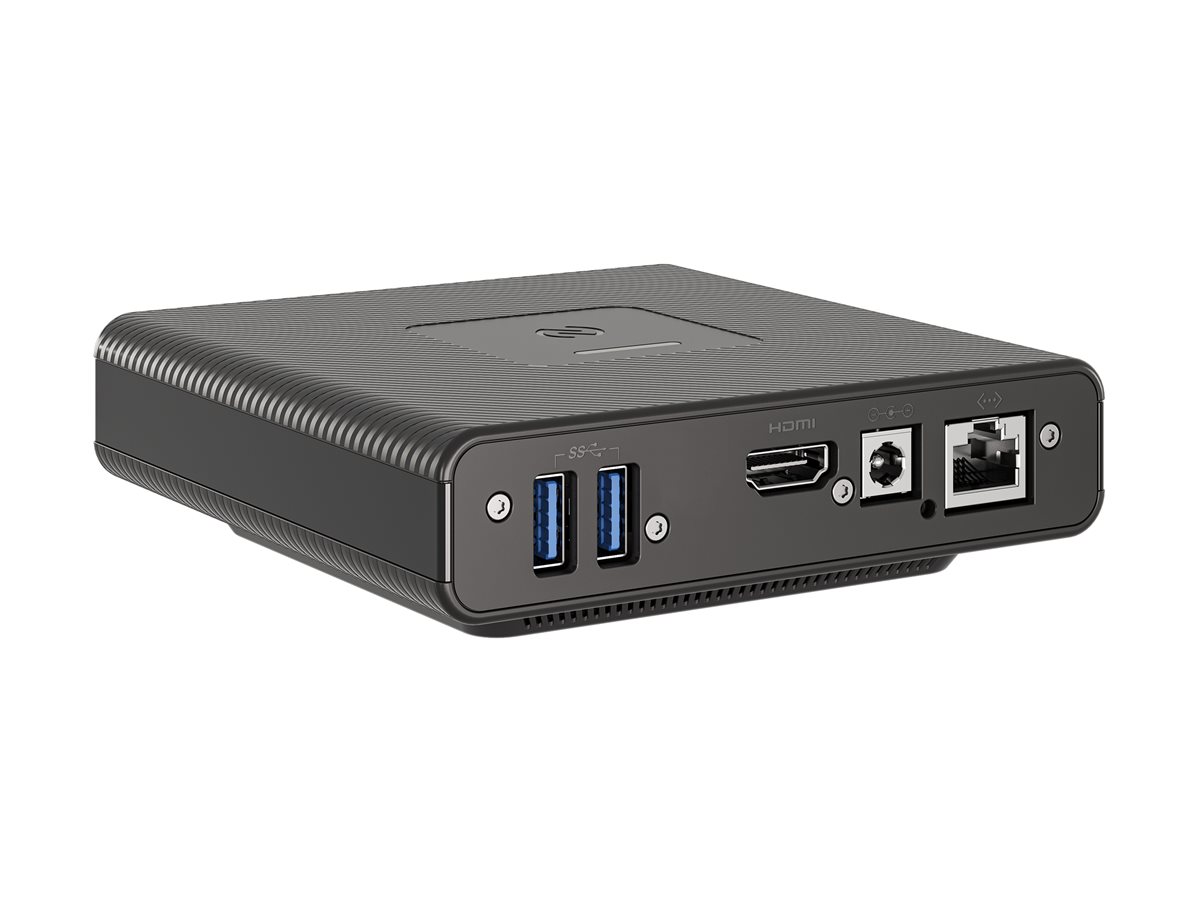

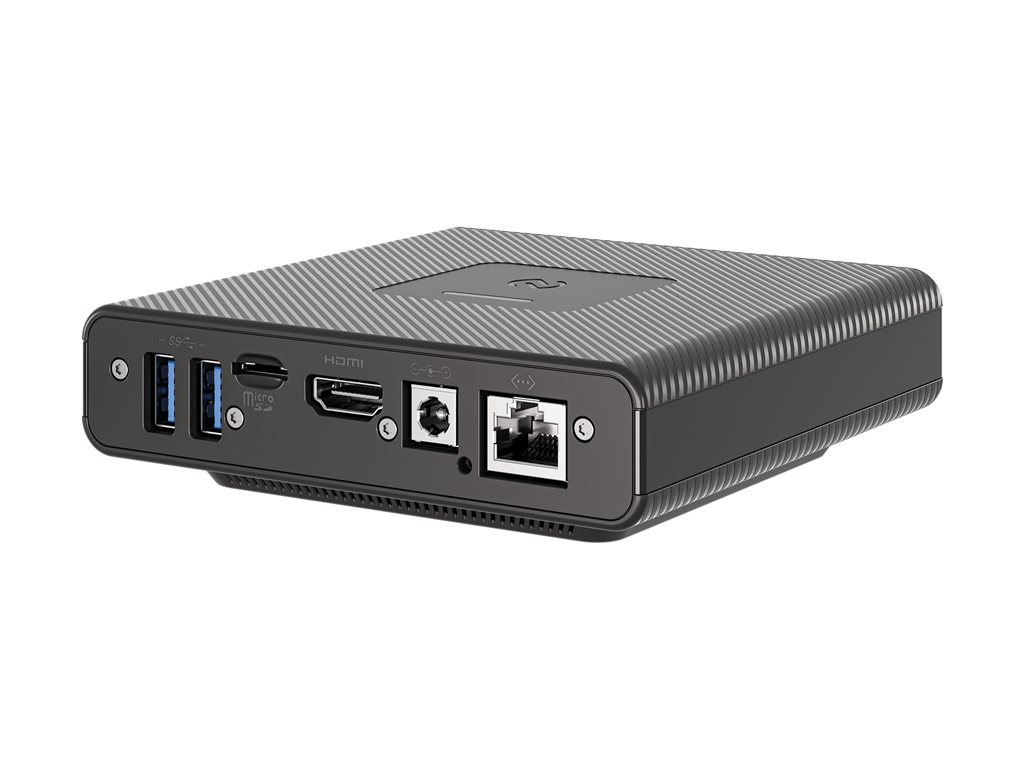

USFF 5430 - RAM 6 GB 64 GB - Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 LE, NFC - monitor: none
| Main Specifications | |
|---|---|

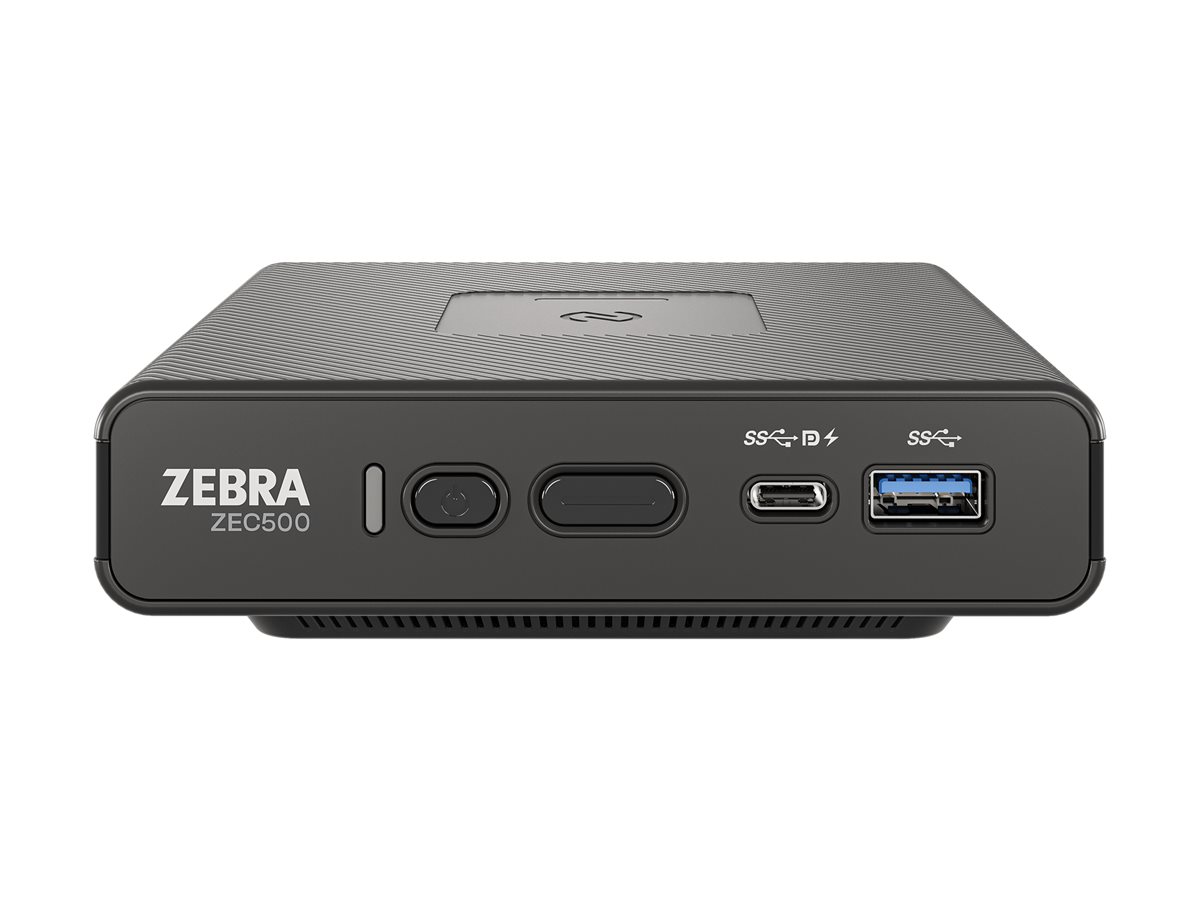

| Product Description | Zebra ZEC500 - USFF 5430 2.1 GHz - 6 GB 64 GB |
| Type | Personal computer - USFF |
| Localization | Region: North America |
| Processor | Qualcomm 5430 / 2.1 GHz (8-core) |
| RAM | 6 GB |
| Hard Drive | 64 GB |
| Optical Storage | No optical drive |
| Networking | 1GbE, 802.11a, 802.11b/g/n, Wi-Fi 5, Wi-Fi 6E, Bluetooth 5.3 LE, NFC |
| Dimensions (WxDxH) | 4.7 in x 4.7 in x 11 in |
| Weight | 9.88 oz |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Warranty | Limited warranty - 1 year |
| General | |
| Type | Personal computer |
| Product Form Factor | USFF |
| Localization | Region: North America |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI ¦ 1 x USB-C 3.2 Gen 2/DisplayPort 1.4 ¦ 3 x USB 3.2 - Type A ¦ 1 x LAN (Gigabit Ethernet) - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| VESA Mounting Interface | VESA, 75 x 75 mm |
| Compliant Standards | WPA3, WPA, WPA2, OWE, WEP, AES-128, WPA3-SAE, IEC 60529 IP54, ESD, IEC 60068-2-5, RoHS 2011/65/EU Amendment 2015/863, REACH SVHC 1907/2006/EC:2022-06-10, ISO/IEC 14443A/B, MIFARE, FeliCa, ISO 15693 |
| RAM | |
| Installed Size | 6 GB |
| Networking | |
| Wireless LAN Supported | Yes |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 LE, NFC |
| Remote Management Protocol | IPv4, IPv6 |
| Features | Power-over-Ethernet (POE), MU-MIMO Support |
| Compliant Standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11mc, IEEE 802.11n, IEEE 802.11v, IEEE 802.11w, Wi-Fi CERTIFIED 6E |
| Power | |
| Device Type | Power adapter |
| Power Provided | 60 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Hard Drive | |
| Capacity | 1 x 64 GB |
| Dimensions & Weight | |
| Width | 4.7 in |
| Depth | 4.7 in |
| Height | 11 in |
| Weight | 9.88 oz |
| Processor / Chipset | |
| CPU | Qualcomm 5430 |
| Clock Speed | 2.1 GHz |
| Number of Cores | 8-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 8.0 |
