Antenna - integrated - cellular, Wi-Fi, Bluetooth, navigation - omni-directional - wall-mountable, pole mount
| Main Specifications | |
|---|---|

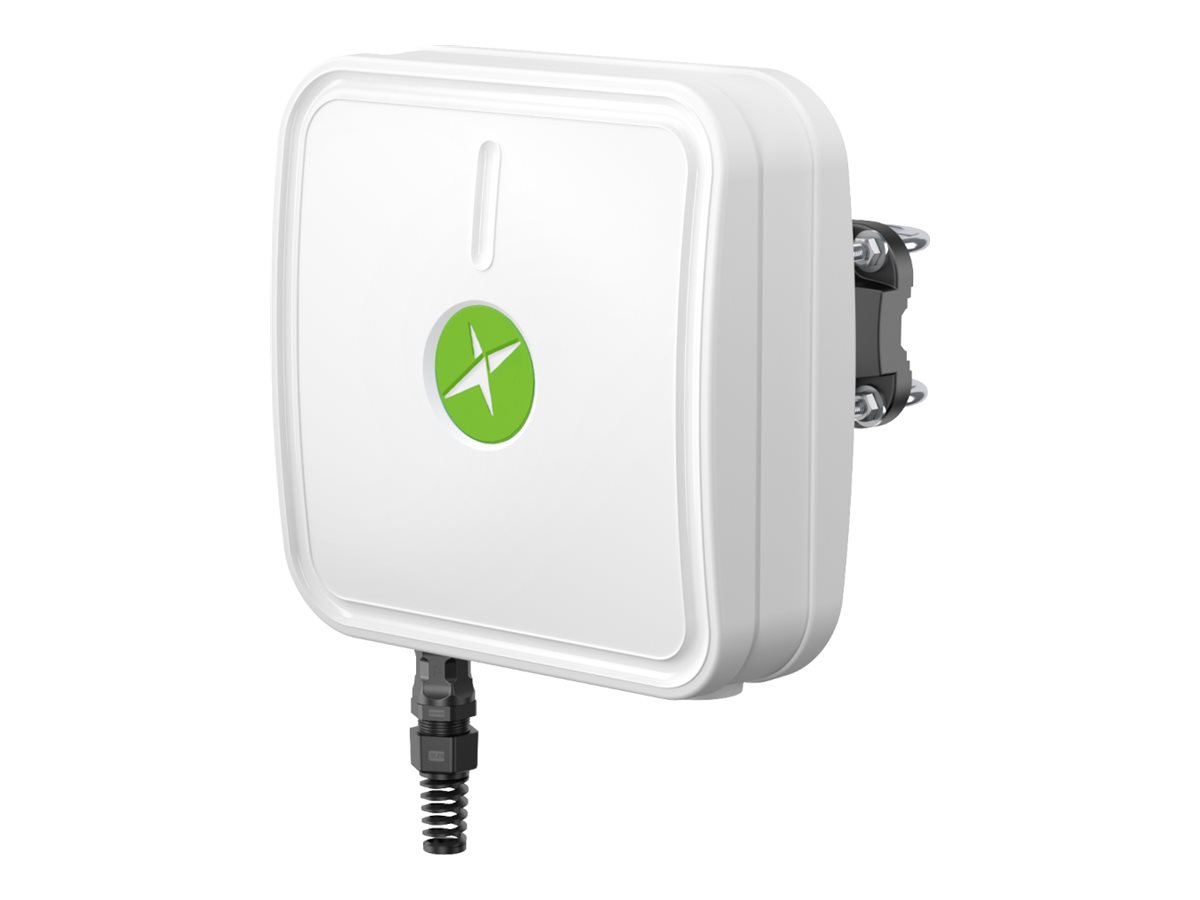

| Product Description | Taoglas Thunder Series THOR92PP - antenna |
| Device Type | Antenna |
| Form Factor | Integrated |
| Intended For | Cellular, Wi-Fi, Bluetooth, navigation |
| Antenna Placing / Mounting | Wall-mountable, pole mount |
| Dimensions (WxDxH) | 10.7 in x 10.9 in x 3.9 in |
| Weight | 3.97 lbs |
| Compatibility | LTE, 5G, Wi-Fi, Bluetooth, GPS, QZSS, GLONASS, GALILEO, BeiDou, SBAS |
| Frequency Range | 617 - 960 MHz, 1.7 - 2.7 GHz, 3.3 - 4.7 GHz, 5.2 - 6.0 GHz, 2.4 - 2.5 GHz, 600 - 7125 MHz |
| Directivity | Omni-directional |
| Features | VSWR < 2.0, vertical polarization, IP67, RoHS, right-hand circular polarization (RHCP) |
| General | |
| Product Type | Antenna |
| Form Factor | Integrated |
| Intended For | Cellular, Wi-Fi, Bluetooth, navigation |
| Antenna Placing / Mounting | Wall-mountable, pole mount |
| Width | 10.7 in |
| Depth | 10.9 in |
| Height | 3.9 in |
| Weight | 3.97 lbs |
| Product Material | ABS plastic, aluminum, PTFE, fiberglass |
| Miscellaneous | |
| Cables Included | Antenna cable |
| Antenna | |
| Compatibility | LTE, 5G, Wi-Fi, Bluetooth, GPS, QZSS, GLONASS, GALILEO, BeiDou, SBAS |
| Frequency Range | 617 - 960 MHz, 1.7 - 2.7 GHz, 3.3 - 4.7 GHz, 5.2 - 6.0 GHz, 2.4 - 2.5 GHz, 600 - 7125 MHz |
| Impedance | 50 ohm |
| Directivity | Omni-directional |
| Features | VSWR < 2.0, vertical polarization, IP67, RoHS, right-hand circular polarization (RHCP) |
| Connector Provided | |
| Type | 2 x antenna - SMA ¦ 2 x antenna - RP-SMA ¦ Antenna - RJ-45 |
