Serial adapter - USB - RS-422/485 - for P/N: BB-TB5P508SR-2PK
| Main Specifications | |
|---|---|

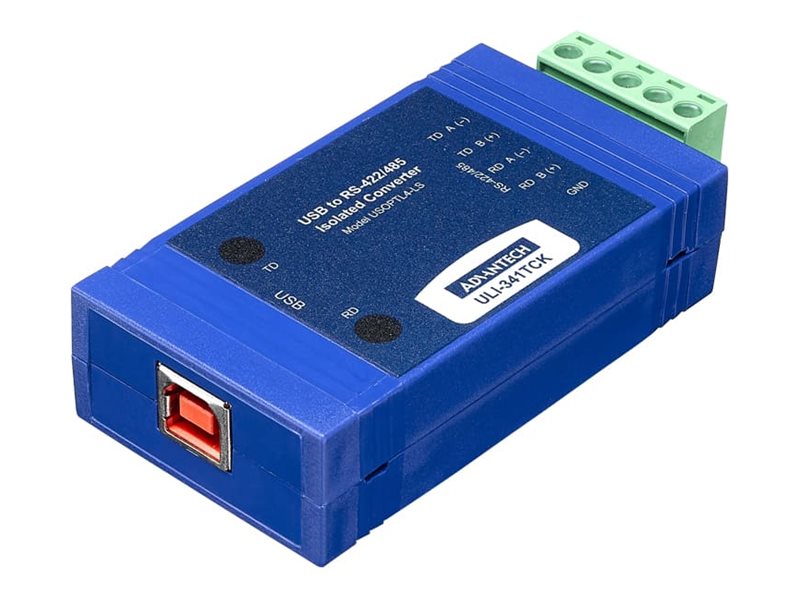

| Product Description | Advantech BB-USOPTL4-LS - serial adapter - USB - RS-422/485 |
| Device Type | Serial adapter |
| Form Factor | External |
| Interface (Bus) Type | USB |
| Ports | RS-422/485 |
| Dimensions (WxDxH) | 3.5 in x 1.7 in x 0.8 in |
| Data Link Protocol | RS-422, RS-485 |
| Data Transfer Rate | 460.8 Kbps |
| Compliant Standards | USB 1.1, USB 2.0 |
| Manufacturer Warranty | 2-year warranty |
| Designed For | P/N: BB-TB5P508SR-2PK |
| General | |
| Device Type | Serial adapter |
| Form Factor | External |
| Interface (Bus) Type | USB |
| Expansion / Connectivity | |
| Interfaces | 1 x RS-422/485 - terminal block |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | 1 x USB cable |
| MTBF | 1,318,809 hours |
| Compliant Standards | IP30, FCC, RoHS, WEEE, BS EN 55011:2016+A2:2021 Class A Group 1, BS EN 55032:2015+A1:2020 Class A, BS EN 55035:2017+A11:2020, BS EN IEC 61000-6-2:2019, BS EN IEC 61000-6-4:2019, CISPR 11:2015+AMD1:2016+AMD2:2019 Ed. 6.2 Class A Group 1, CISPR 32:2015+AMD1:2019 Class A, EN 55011:2016+A2:2021 Class A Group 1, EN 55032:2015+A1:2020 Class A, EN 55035:2017+A11:2020, EN 61000-4-2:2009, EN 61000-4-8:2010, EN IEC 61000-4-3:2020, EN IEC 61000-6-2:2019, EN IEC 61000-6-4:2019 |
| Networking | |
| Ports | RS-422/485 |
| Connectivity Technology | Wired |
| Data Link Protocol | RS-422, RS-485 |
| Data Transfer Rate | 460.8 Kbps |
| Features | USB powered, 2 KV Optical Isolation Protection, locked serial number, plastic housing |
| Compliant Standards | USB 1.1, USB 2.0 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Dimensions & Weight | |
| Width | 3.5 in |
| Depth | 1.7 in |
| Height | 0.8 in |
| Compatibility Information | |
| Designed For | P/N: BB-TB5P508SR-2PK |
