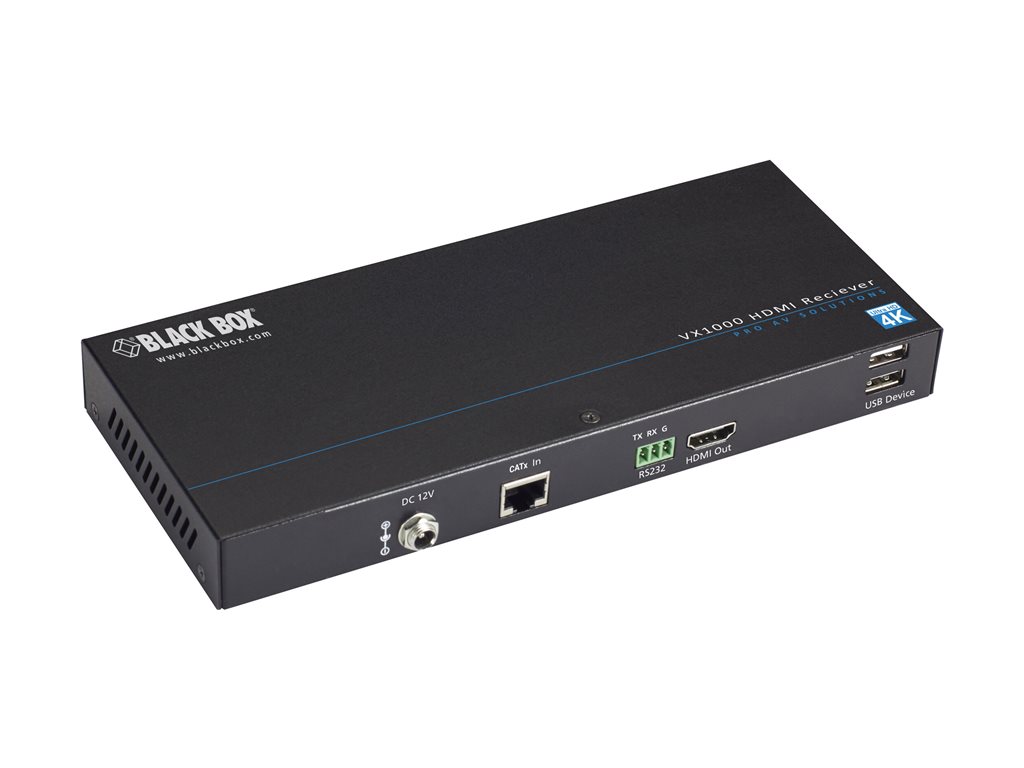

Video/audio extender - receiver - CATx, HDMI, RS-232 - up to 328 ft
| Main Specifications | |
|---|---|
| Product Description | Black Box VX1000 Series - video/audio extender - CATx, HDMI, RS-232 |
| Device Type | Video/audio extender (receiver) |
| Form Factor | External |
| Data Link Protocol | CATx, HDMI, RS-232 |
| Max Transfer Distance | 328 ft |
| Dimensions (WxDxH) | 8.7 in x 3.7 in x 1 in |
| Weight | 28.92 oz |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Video/audio extender (receiver) |
| Form Factor | External |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI - 19 pin HDMI Type A female ¦ 1 x CATx (input) - RJ-45 female ¦ 1 x network (pass-through) - RJ-45 female ¦ 1 x RS-232 - terminal block ¦ 2 x USB - Type A female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Compliant Standards | HDCP 2.2, EDID compatible |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | CATx, HDMI, RS-232 |
| Max Resolution | 4K |
| Max Transfer Distance | 328 ft |
| Features | HDCP compliant |
| Power | |
| Power Device | External power adapter |
| Dimensions & Weight | |
| Width | 8.7 in |
| Depth | 3.7 in |
| Height | 1 in |
| Weight | 28.92 oz |
