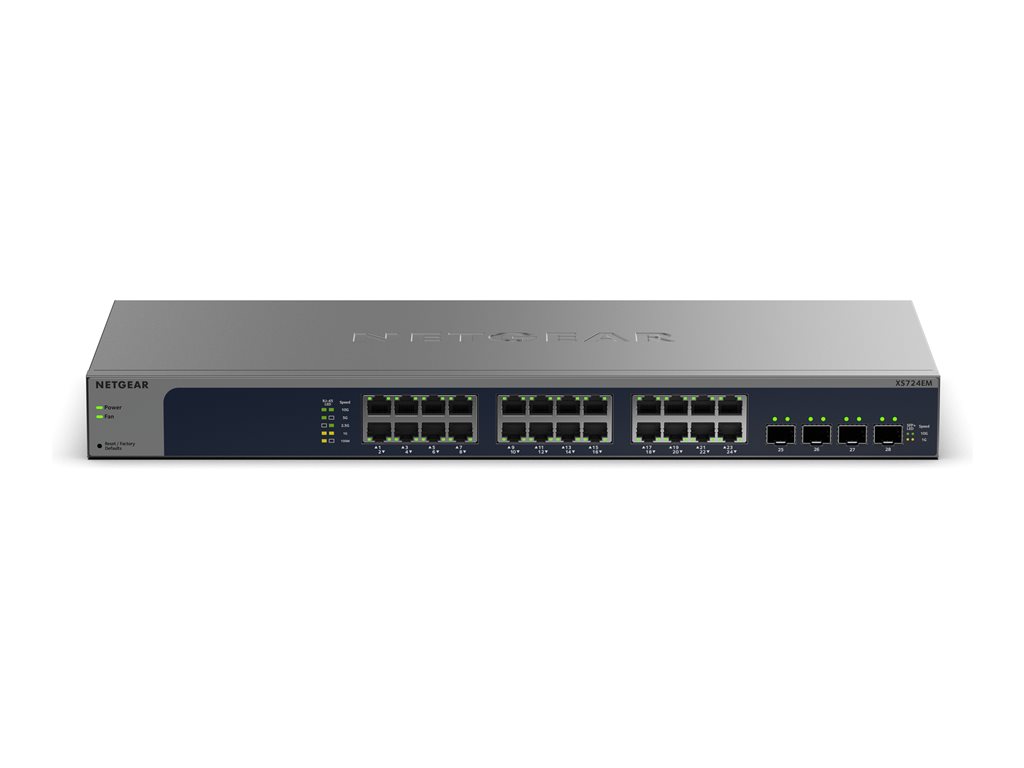

Switch - smart - 24 x 100/1000/2.5G/5G/10GBase-T + 4 x 10 Gigabit SFP+ - desktop, rack-mountable
| Main Specifications | |
|---|---|
| Product Description | NETGEAR XS724EMv2 - switch - 24 ports - smart - rack-mountable |
| Device Type | Switch - 24 ports - smart |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 24 x 100/1000/2.5G/5G/10GBase-T + 4 x 10 Gigabit SFP+ |
| Performance | Fabric throughput: 560 Gbps ¦ Forwarding performance (64-byte packet size): 416.7 Mfps ¦ Packet buffer size: 8 MB |
| Capacity | Priority queues: 8 ¦ IGMP multicast groups: 256 ¦ VLAN entries: 64 |
| MAC Address Table Size | 32K entries |
| Jumbo Frame Support | 12000 bytes |
| Routing Protocol | IGMPv2, IGMP, IGMPv3 |
| Remote Management Protocol | HTTP |
| Features | Metal housing, VLAN support, IGMP snooping, DoS attack prevention, port mirroring, store and forward, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, Unicast Storm Control, firmware upgradable, QoS, LACP, DHCP client, Energy Efficient Ethernet, loop prevention, Multicast filtering function, CoS, ToS, DSCP support, 3 fans, cable test, administrator's password, WRR, VLAN Tagging, port trunking, security slot (Kensington security lock compatible), EEE, Auto Power Down, reset button |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3z, IEEE 802.3x, IEEE 802.3az, IEEE 802.1Q, IEEE 802.1p |
| Power | AC 100-240 V (50/60 Hz) 3 A |
| Dimensions (WxDxH) | 17.3 in x 8 in x 1.7 in |
| Weight | 8.6 lbs |
| Localization | Latin America, North America |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 24 ports - smart |
| Enclosure Type | Desktop, rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 24 x 100/1000/2.5G/5G/10GBase-T + 4 x 10 Gigabit SFP+ |
| Performance | Fabric throughput: 560 Gbps ¦ Forwarding performance (64-byte packet size): 416.7 Mfps ¦ Packet buffer size: 8 MB |
| Capacity | Priority queues: 8 ¦ IGMP multicast groups: 256 ¦ VLAN entries: 64 |
| MAC Address Table Size | 32K entries |
| Jumbo Frame Support | 12000 bytes |
| Routing Protocol | IGMPv2, IGMP, IGMPv3 |
| Remote Management Protocol | HTTP |
| Features | Metal housing, VLAN support, IGMP snooping, DoS attack prevention, port mirroring, store and forward, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, Unicast Storm Control, firmware upgradable, QoS, LACP, DHCP client, Energy Efficient Ethernet, loop prevention, Multicast filtering function, CoS, ToS, DSCP support, 3 fans, cable test, administrator's password, WRR, VLAN Tagging, port trunking, security slot (Kensington security lock compatible), EEE, Auto Power Down, reset button |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3z, IEEE 802.3x, IEEE 802.3az, IEEE 802.1Q, IEEE 802.1p |
| Built-in Devices | 3 x fans |
| Status Indicators | Power, link/activity/speed, port status, fan |
| Expansion / Connectivity | |
| Interfaces | 24 x 100/1000/2.5G/5G/10GBase-T RJ-45 ¦ 4 x 10GBase-X SFP+ |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - phone consulting - limited lifetime warranty |
| Miscellaneous | |
| Included Accessories | Power cord, rack mount kit |
| Rack Mounting Kit | Included |
| MTBF | 161,283 hours |
| Compliant Standards | FCC, CAN, ICES, RCM, VCCI, KC, BSMI Class A, CB, LVD, CSA, BSMI |
| Localization | Latin America, North America |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Electric Current Required | 3 A |
| Power Consumption Stand by | 36 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 95% RH (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 95% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 8 in |
| Height | 1.7 in |
| Weight | 8.6 lbs |
