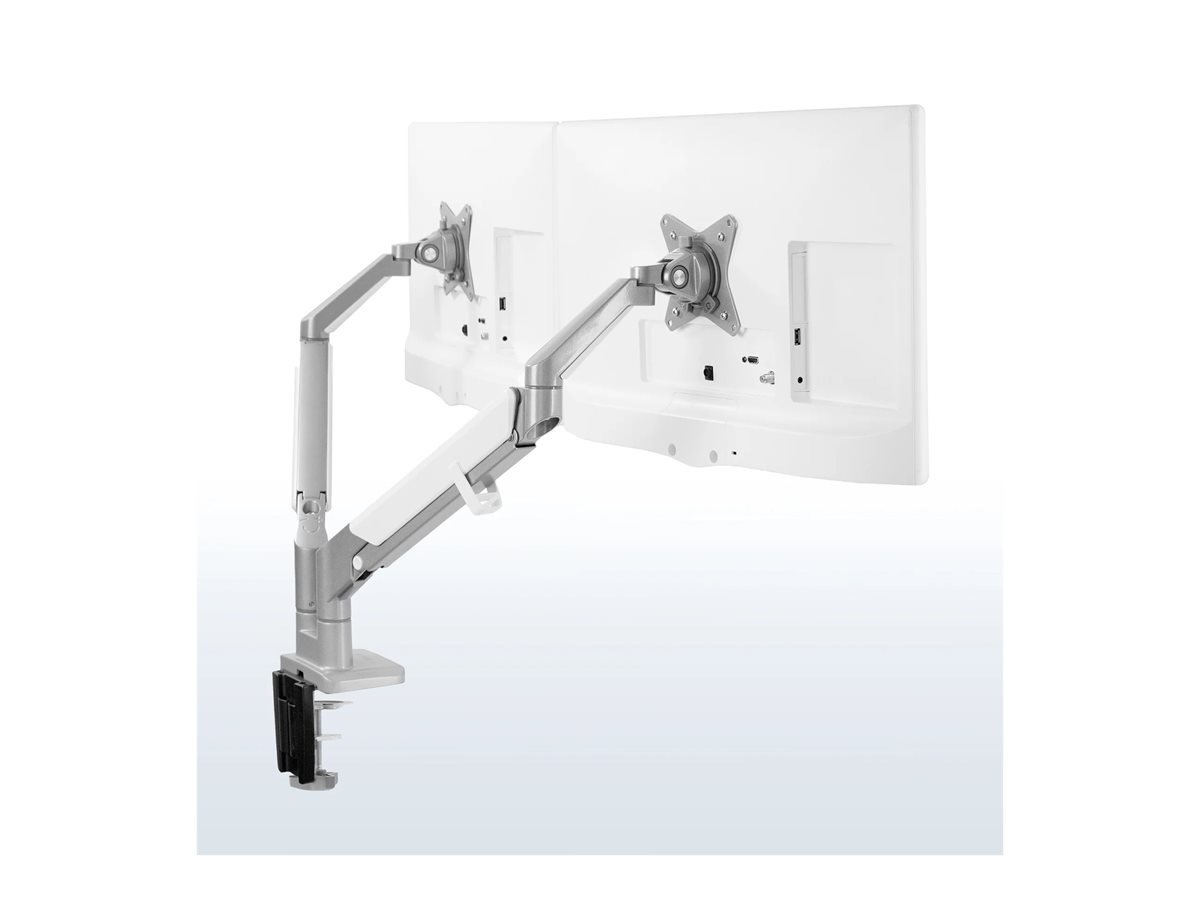

Mounting kit (articulating arm) - for 2 LCD displays / curved LCD display - pneumatic - aluminum, steel, plastic - silver - screen size: 17"-32" - desk-mountable
| Main Specifications | |
|---|---|
| Product Description | VIVO STAND-V200A mounting kit - for 2 LCD displays / curved LCD display - pneumatic - silver |
| Product Type | Mounting kit - desk-mountable |
| Mounting Components | Articulating arm |
| Integrated Devices | Spring tension mechanism |
| Adjustable Height | 16.5-45 cm |
| Tilt | -45° to 45° |
| Rotation | 360° |
| Swivel | 180° |
| Adjustments | Height, tilt, swivel, rotation |
| Recommended Use | 2 LCD displays / curved LCD display |
| Recommended Display Size | 17"-32" |
| VESA Mounting Interface | 100 x 100 mm, 75 x 75 mm |
| Max Load Weight | 39.7 lbs |
| Material | Aluminum, steel, plastic |
| Color | Silver |
| Package Content | Dual monitor arm, C-clamp, grommet clamp, clamp cover, 2 VESA brackets, 2 x pad strip, upper plate for grommet, lower plate for grommet, 2 x arm cable clip, adhesive cable management clips, 3 x M6x12 screws, M8x105 screw, M8 nut, M8 washer, 8 x M4x12 mm screws, 8 x M5x12 screws, 8 x M5 washers, allen wrench (4mm), allen wrench (6mm), wrench |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Adjustable Height | 16.5-45 cm |
| Material | Aluminum, steel, plastic |
| Color | Silver |
| Package Content | Dual monitor arm, C-clamp, grommet clamp, clamp cover, 2 VESA brackets, 2 x pad strip, upper plate for grommet, lower plate for grommet, 2 x arm cable clip, adhesive cable management clips, 3 x M6x12 screws, M8x105 screw, M8 nut, M8 washer, 8 x M4x12 mm screws, 8 x M5x12 screws, 8 x M5 washers, allen wrench (4mm), allen wrench (6mm), wrench |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years ¦ Return - 30 days |
| AV Furniture | |
| Type | Mounting kit |
| Mounting Components | Articulating arm |
| Recommended Use | 2 LCD displays / curved LCD display |
| Placing / Mounting | Desk-mountable |
| VESA Mounting Interface | 100 x 100 mm, 75 x 75 mm |
| Integrated Devices | Spring tension mechanism |
| Cable Management | Integrated cable management |
| Recommended Display Size | 17"-32" |
| Tilt | -45° to 45° |
| Rotation | 360° |
| Swivel | 180° |
| Adjustments | Height, tilt, swivel, rotation |
| Max Load Weight | 39.7 lbs |
| Min Load Weight | 4.4 lbs |
| Assembly Required | Yes |
| Finish | Powder coated |
| Details | Portrait orientation, landscape orientation |
| Dimensions & Weight Details | |
| Dimensions | Base plate - width: 3.7 in, depth: 3.9 in |
