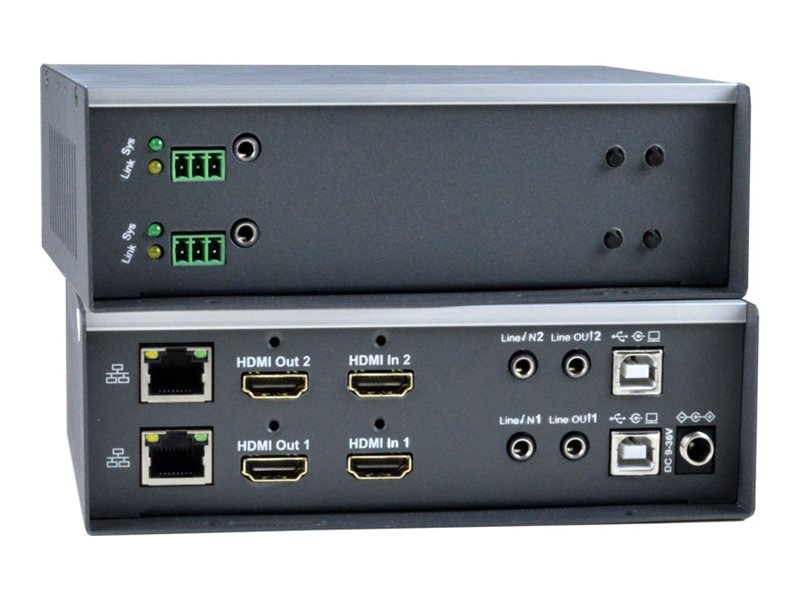

KVM / audio / serial / USB/ infrared extender - transmitter - HDMI, USB 2.0 - over CATx - USB - up to 984 ft - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | NTI XTENDEX ST-IPUSB4K-L-VWDH - KVM / audio / serial / USB/ infrared extender - HDMI, USB 2.0 - TAA Compliant |
| Device Type | KVM / audio / serial / USB/ infrared extender (transmitter) - USB |
| Form Factor | External |
| Data Transfer Rate | 10.2 Gbps |
| Data Link Protocol | HDMI, USB 2.0 |
| Transmission Medium | CATx |
| Max Transfer Distance | 984 ft |
| Power | AC 100-240 V |
| Dimensions (WxDxH) | 6.3 in x 4.3 in x 2 in |
| TAA Compliant | Yes |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | KVM / audio / serial / USB/ infrared extender (transmitter) |
| Form Factor | External |
| Expansion / Connectivity | |
| Interfaces | 2 x HDMI output - 19 pin HDMI Type A female ¦ 2 x HDMI input - 19 pin HDMI Type A female ¦ 2 x USB - Type B female ¦ 2 x audio line-in - mini jack female ¦ 2 x audio line-out - mini jack female ¦ 2 x RS-232 (full-duplex) - 3 pin terminal block ¦ 2 x line input/output - RJ-45 female ¦ 2 x IR - mini jack female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | 2 x HDMI cable - 6.6 ft ¦ 1 x USB type A to USB type B cable - 6 ft ¦ 1 x audio cable - 5 ft |
| Compliant Standards | FCC, RoHS |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | HDMI, USB 2.0 |
| Data Transfer Rate | 10.2 Gbps |
| Keyboard / Mouse Interface | USB |
| Max Resolution | 3840 x 2160 @ 30 Hz |
| Max Transfer Distance | 984 ft |
| Status Indicators | Link/activity, system |
| Features | Dolby Digital support, Dolby TrueHD support, Lip Sync pass-through, LPCM 7.1 support, DDC2B compatible |
| Compliant Standards | HDCP 1.4 |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 16.32 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Humidity Range Operating | 0 - 80% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 6.3 in |
| Depth | 4.3 in |
| Height | 2 in |
