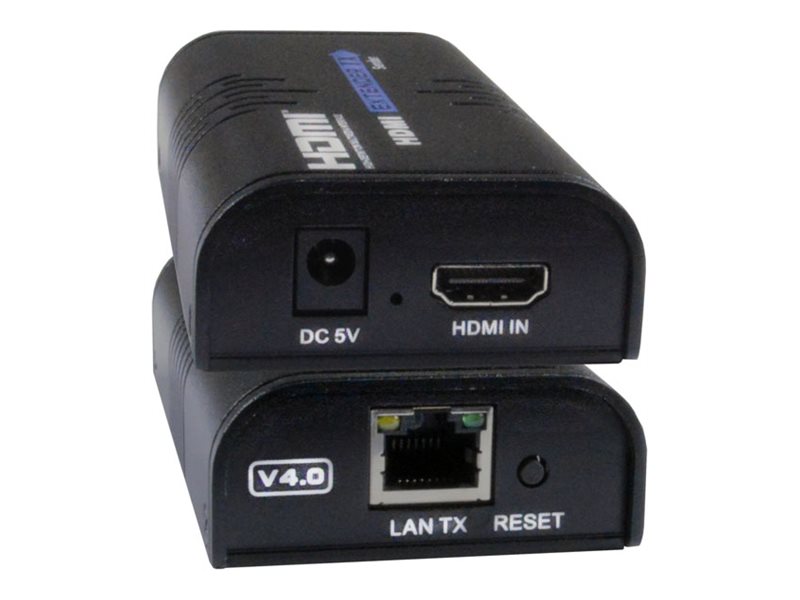

Remote and local unit - video/audio extender - HDMI - over CAT 6/6a/7 - up to 394 ft
| Main Specifications | |
|---|---|
| Product Description | NTI XTENDEX ST-IPHD-LC-V4 - remote and local unit - video/audio extender - HDMI |
| Device Type | Video/audio extender |
| Form Factor | External |
| Data Link Protocol | HDMI |
| Transmission Medium | CAT 6/6a/7 |
| Max Transfer Distance | 394 ft |
| Power | AC 100-240 V |
| Dimensions (WxDxH) | 2.3 in x 4.3 in x 1 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Video/audio extender |
| Form Factor | External |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI (local unit) - 19 pin HDMI Type A female ¦ 1 x network (local unit) - RJ-45 female ¦ 1 x network (remote unit) - RJ-45 female ¦ 1 x HDMI input (remote unit) - 19 pin HDMI Type A female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Compliant Standards | RoHS, FCC, Plug and Play |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | HDMI |
| Max Resolution | 1080p @ 60 Hz |
| Max Transfer Distance | 394 ft |
| Features | H.264 video codec, firmware upgradable, web interface |
| Compliant Standards | HDCP 1.4 |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 0 - 95% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 2.3 in |
| Depth | 4.3 in |
| Height | 1 in |
