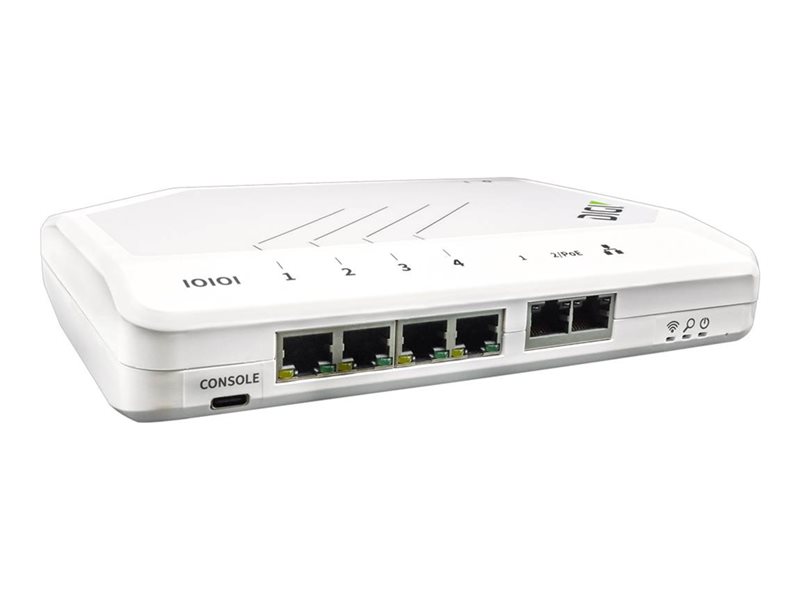

Device server - PoE, no accessories - with 1-year Digi LifeCycle Assurance - 4 ports - 1GbE, RS-232, RS-422, RS-485 - Wi-Fi 6 - 2.4 GHz, 5 GHz
| Main Specifications | |
|---|---|
| Product Description | Digi Connect EZ 4 WS - device server - PoE, no accessories - Wi-Fi 6 - with 1-year Digi LifeCycle Assurance |
| Device Type | Device server |
| Bundled Services | 1-year Digi LifeCycle Assurance |
| Form Factor | External |
| RAM | 256 MB |
| Flash Memory | 4 GB |
| Ports Qty | 4 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232, RS-422, RS-485, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency Band | 2.4 GHz, 5 GHz |
| Capacity | Wireless clients: 10 ¦ Maximum number of access points: 2 |
| Power Over Ethernet (PoE) Supported | PoE |
| Power | AC 120/230 V |
| Dimensions (WxDxH) | 8.2 in x 6.2 in x 1.5 in |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Device server |
| Bundled Services | 1-year Digi LifeCycle Assurance |
| Width | 8.2 in |
| Depth | 6.2 in |
| Height | 1.5 in |
| Expansion / Connectivity | |
| Interfaces | 2 x 1000Base-T - RJ-45 ¦ 4 x RS-232/422/485 - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years ¦ Technical support - 1 year |
| Miscellaneous | |
| Compliant Standards | IEC 62368, EN 62368, UL 62368, CSA 22.2, RCM, IEC 60601-1, FCC Part 15 A, IC, AS/NZS CISPR 22, EN 55035, EN 55032 |
| Networking | |
| Form Factor | External |
| Ports Qty | 4 |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232, RS-422, RS-485, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Network / Transport Protocol | FTP, SMTP, NTP |
| Remote Management Protocol | SNMP, HTTP, HTTPS, Telnet, SSH, CLI, SCP, Syslog |
| Frequency Band | 2.4 GHz, 5 GHz |
| Capacity | Wireless clients: 10 ¦ Maximum number of access points: 2 |
| Status Indicators | Power, Wi-Fi, Ethernet link/activity, serial |
| Features | IPerf, dynamic DNS, traceroute, auto-sensing per device, SISO technology, client mode |
| Authentication Method | RADIUS, TACACS+, LDAP |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE |
| Voltage Required | AC 120/230 V |
| Software / System Requirements | |
| Software Included | Digi Remote Manager, Digi On-Prem Manager, Digi Navigator |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Processor / Memory / Storage | |
| RAM | 256 MB |
| Flash Memory | 4 GB |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 9.9 in |
| Shipping Depth | 9.3 in |
| Shipping Height | 2.3 in |
| Shipping Weight | 2.87 lbs |
