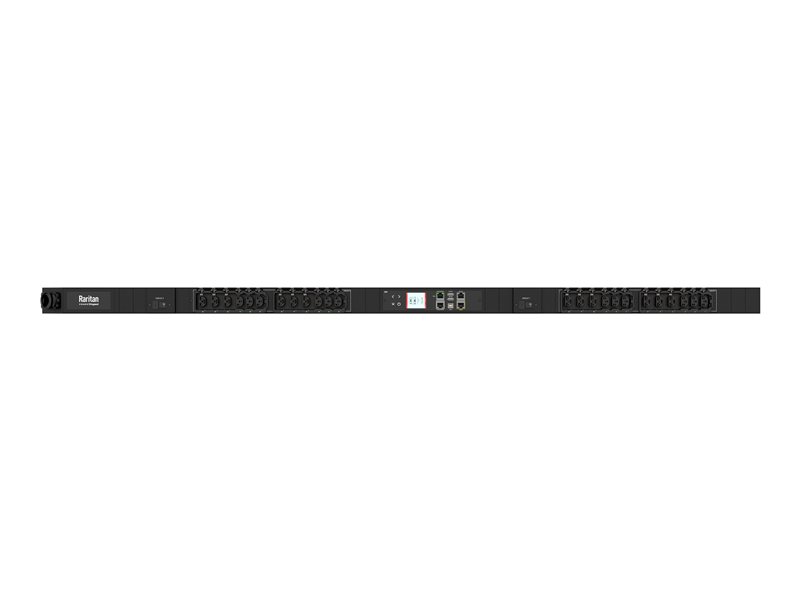

Power distribution unit (rack-mountable) - AC 230 V - 7400 VA - 1-phase - Ethernet 10/100/1000, RS-232, USB - input: IEC 60309 2P+PE 6Hr - output connectors: 24 (12 x IEC 60320 C13, 12 x IEC 60320 C19) - 10 ft cord
| Main Specifications | |
|---|---|
| Product Description | Raritan PX4-1161-E7 - power distribution unit - 7400 VA |
| Device Type | Power distribution unit - rack-mountable |
| Cord Length | 10 ft |
| Weight | 8.99 lbs |
| Input Wiring | 1-phase |
| Input Voltage | AC 230 V |
| Power Capacity | 7400 VA |
| Input Connectors | 1 x power IEC 60309 2P+PE 6Hr |
| Output connectors | 12 x power IEC 60320 C13 ¦ 12 x power IEC 60320 C19 |
| Networking | Ethernet 10/100/1000, RS-232, USB |
| Remote Management Protocol | HTTP, HTTPS, SSH, CLI, Telnet, SNMP 2, SNMP 3, SMTP, JSON-RPC, Modbus |
| Dimensions (WxDxH) | 2.2 in x 2.6 in x 60.6 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Cord Length | 10 ft |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable 10 ft |
| Features | Voltage meter, current meter, active power meter, real power meter, energy meter, power factor meter, metering per input line, environmental sensor ready, metering per branch circuit breaker, cascadable |
| Compliant Standards | ISO 27001 |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, RS-232, USB |
| Remote Management Protocol | HTTP, HTTPS, SSH, CLI, Telnet, SNMP 2, SNMP 3, SMTP, JSON-RPC, Modbus |
| Environmental Parameters | |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 85% |
| Power Device | |
| Input Voltage | AC 230 V |
| Input Wiring | 1-phase |
| Input Connectors | 1 x power IEC 60309 2P+PE 6Hr |
| Power Output Connectors Details | 12 x power IEC 60320 C13 ¦ 12 x power IEC 60320 C19 |
| Max Electric Current | 32 A |
| Power Capacity | 7400 VA |
| Dimensions & Weight | |
| Width | 2.2 in |
| Depth | 2.6 in |
| Height | 60.6 in |
| Weight | 8.99 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 4.9 in |
| Shipping Depth | 10 in |
| Shipping Height | 66.9 in |
| Shipping Weight | 14.66 lbs |
