4x1 HDMI switcher multi-viewer
| Main Specifications | |
|---|---|

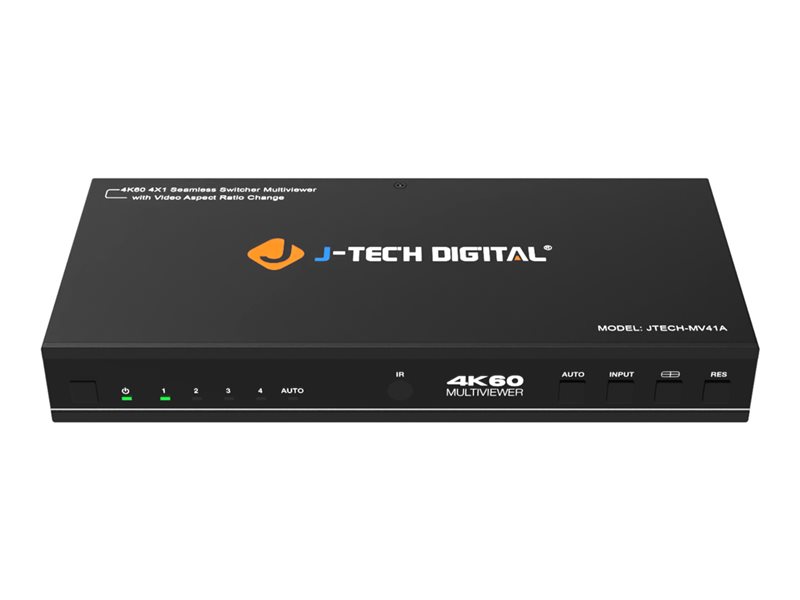

| Product Description | J-Tech Digital JTECH-MV41A 4x1 HDMI switcher multi-viewer |
| Type | 4x1 HDMI switcher multi-viewer |
| Dimensions (WxDxH) | 8.7 in - 3.9 in - 1.2 in |
| Weight | 21.87 oz |
| Manufacturer Warranty | 1 year |
| General | |
| Type | 4x1 HDMI switcher multi-viewer |
| Width | 8.7 in |
| Depth | 3.9 in |
| Height | 1.2 in |
| Weight | 21.87 oz |
| Manufacturer Warranty | |
| Warranty | 1 year |
| Power | |
| Voltage Required | AC 120/230 V AC 100-240 V |
| Power Consumption | 10 Watt |
| Low Voltage Power | DC 12 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 90% RH (non-condensing) |
| Kit Content | |
| Kit Content | (1) x 4x1 HDMI switcher multi-viewer ¦ (1) x remote control ¦ (1) x 3-pin Phoenix connector ¦ (1) x IR receiver ¦ (1) x power adapter ¦ (2) x mounting ear ¦ (4) x screw |
| Terminals | |
| Terminals | (4) x HDMI input - 19 pin HDMI Type A ¦ (1) x HDMI output - 19 pin HDMI Type A ¦ (1) x optical output - TOSLINK ¦ (1) x audio output - RCA x 2 ¦ (1) x RS-232 - 3 pin ¦ (1) x IR extension - mini-phone 3.5 mm |
| Studio & Production Equipment | |
| Features | 4K60 4:4:4 18Gbps signal support, aspect ratio conversion, picture-in-picture support, picture-by-picture (PBP) support, quad image split screen, LED indicators, Dolby Digital support, Dolby Digital Plus support, DTS support, DTS-HD support, 7.1 multi-channel audio, scaler function, HDCP 1.4 compliant, HDCP 2.2 compliant, PCM 2.0 support, metal enclosure |
