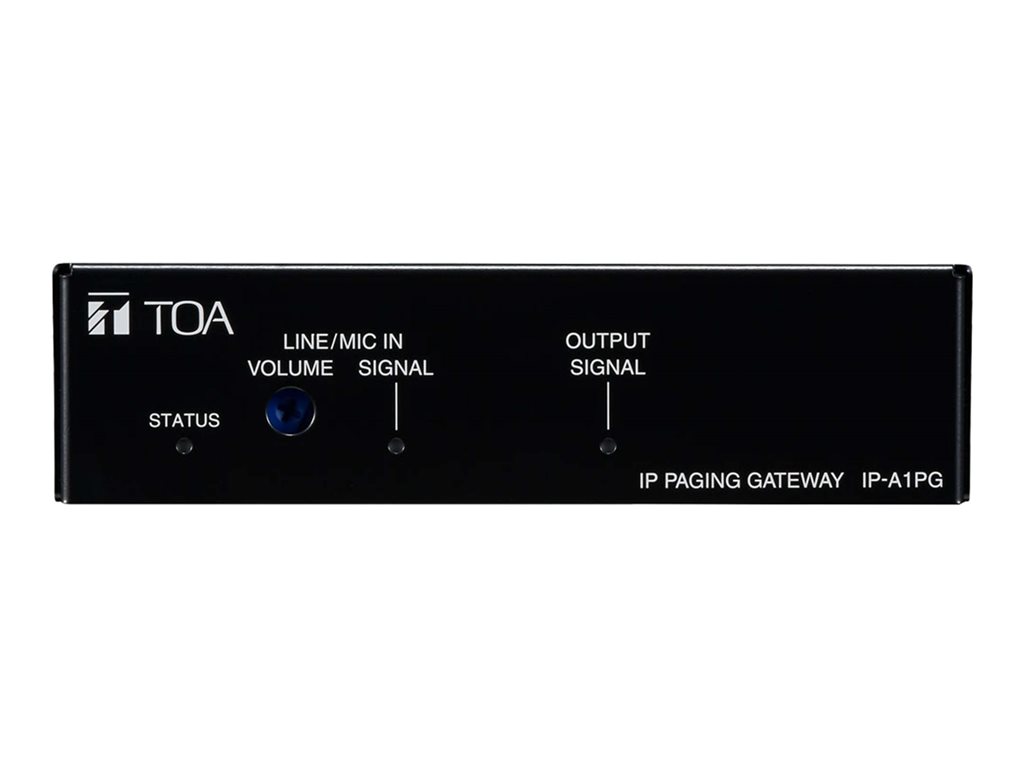

VoIP gateway - 100Mb LAN - desktop
| Main Specifications | |
|---|---|
| Product Description | TOA IP-A1 Series IP-A1PG - VoIP gateway |
| Device Type | VoIP gateway |
| Form Factor | Desktop |
| Flash Memory | 80 MB |
| Data Link Protocol | Ethernet, Fast Ethernet |
| Capacity | Multicast channels: 20 ¦ Command sets: 20 |
| VoIP Protocols | SIP |
| Power Over Ethernet (PoE) Supported | PoE |
| Dimensions (WxDxH) | 5 in x 3.1 in x 1.3 in |
| Weight | 13.76 oz |
| General | |
| Device Type | VoIP gateway |
| Width | 5 in |
| Depth | 3.1 in |
| Height | 1.3 in |
| Weight | 13.76 oz |
| Enclosure Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x 100Base-TX ¦ 1 x audio line-in ¦ 1 x audio line-out - RCA ¦ 4 x control input - terminal block ¦ 1 x mute control - terminal block ¦ 1 x control output - terminal block |
| Networking | |
| Form Factor | Desktop |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet |
| Network / Transport Protocol | TCP, UDP, HTTP, RTP, RTSP, RTCP, ARP, ICMP/IP, IGMP, IGMPv3, NTP |
| Capacity | Multicast channels: 20 ¦ Command sets: 20 |
| Status Indicators | Status, output, signal |
| Features | Steel housing, ONVIF support, auto-uplink (auto MDI/MDI-X) |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE |
| Power Device | External power adapter |
| Power Consumption Operational | 2.5 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Processor / Memory / Storage | |
| Flash Memory | 80 MB |
| IP Telephony | |
| VoIP Protocols | SIP |
| Voice Codecs | PCMU, PCMA, G.722, G.711a, G.711u |
