Optical power meter
| Main Specifications | |
|---|---|

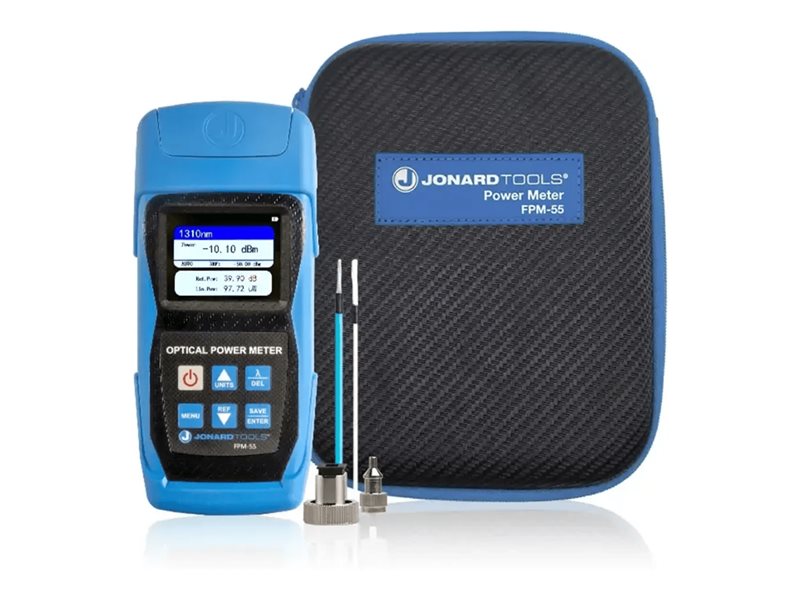

| Product Description | Jonard Tools FPM-55 - optical power meter |
| Device Type | Optical power meter |
| Tests, Tools and Measurements | Optical power meter, wavelength measurement |
| Features | InGaAs detector, automatic power off, data results storage, up to 1000 test records |
| Fiber | 850 nm, 980 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm, 1625 nm, 1650 nm |
| Display | 2.4" |
| Dimensions (WxDxH) | 7 in x 3 in x 9 in |
| Weight | 27.86 oz |
| Manufacturer Warranty | 1 year limited warranty |
| General | |
| Device Type | Optical power meter |
| Media | Fiber |
| Features | InGaAs detector, automatic power off, data results storage, up to 1000 test records |
| Tests, Tools and Measurements | Optical power meter, wavelength measurement |
| Included Accessories | Cleaning swabs, interchangeable FC adapter, interchangeable SC adapter, FC-LC adapter, carrying case |
| Cables Included | 1 x USB-C cable |
| Connectors | SC, FC, LC |
| Warranty | 1 year limited warranty |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 140 °F |
| Min Storage Temperature | -13 °F |
| Max Storage Temperature | 158 °F |
| Battery | |
| Technology | Alkaline |
| Voltage | 1.5 V |
| Included Qty | 3 |
| Required Qty | 3 |
| Run Time (Up To) | 50 hour(s) |
| Supported Battery Form Factor | AA |
| Display | |
| Diagonal Size | 2.4" |
| Technology | LCD |
| Color Support | Color |
| Dimensions & Weight | |
| Width | 7 in |
| Depth | 3 in |
| Height | 9 in |
| Weight | 27.86 oz |
