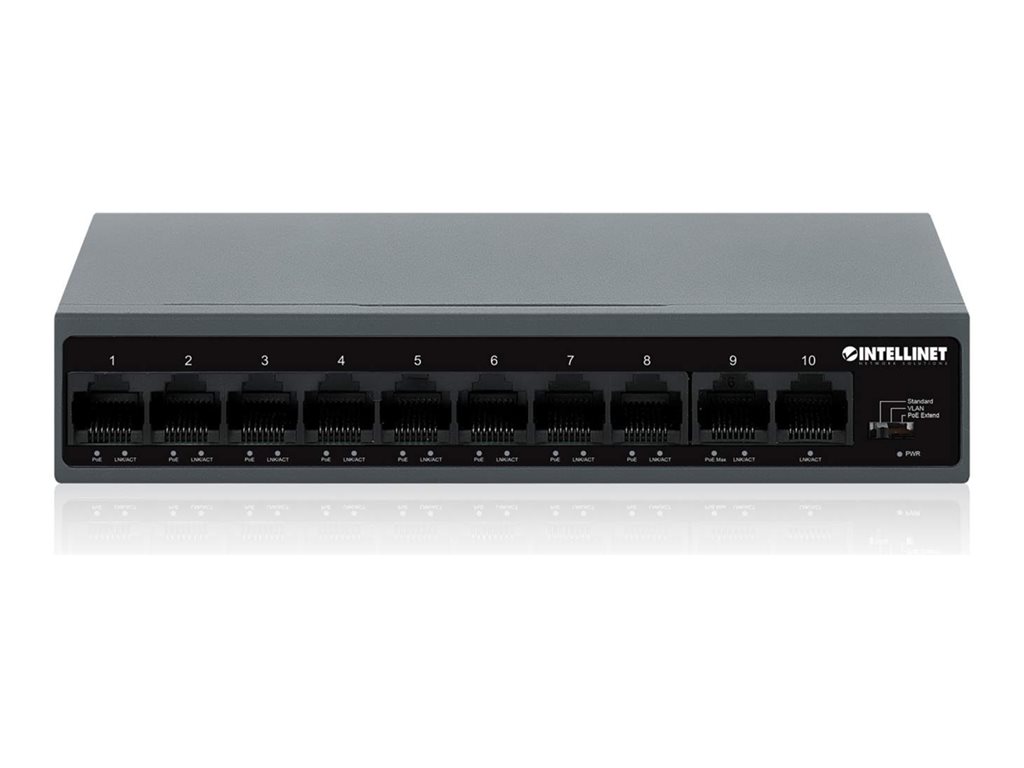

Hub - unmanaged - 8 x 10/100 (PoE+) + 2 x 10/100 (uplink) - desktop, wall-mountable - PoE+ (95 W)
| Main Specifications | |
|---|---|
| Product Description | Intellinet - hub - 10 ports - unmanaged |
| Device Type | Hub - 10 ports - unmanaged |
| Subtype | Fast Ethernet |
| Ports | 8 x 10/100 (PoE+) + 2 x 10/100 (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 95 W |
| Performance | Switching capacity: 2 Gbps ¦ Buffer memory: 448 kbit ¦ Forwarding rate: 1.488 Mpps |
| MAC Address Table Size | 1K entries |
| Jumbo Frame Support | 1536 bytes |
| Features | Self-healing network, VLAN mode, PoE extend-mode, Auto MDIX, NwWay protocol support, Store-and-forward technology, 4KV lightning protection (common mode), 2KV lightning protection (differential mode), 8KV ESD Protector (air-gap discharge), 6KV ESD Protector (contact discharge), fanless |
| Compliant Standards | IEEE 802.3at, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Power | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 6.6 in x 3.7 in x 1.3 in |
| Weight | 13.4 oz |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Hub - 10 ports - unmanaged |
| Enclosure Type | Desktop, wall-mountable |
| Subtype | Fast Ethernet |
| Ports | 8 x 10/100 (PoE+) + 2 x 10/100 (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 95 W |
| Performance | Switching capacity: 2 Gbps ¦ Buffer memory: 448 kbit ¦ Forwarding rate: 1.488 Mpps |
| MAC Address Table Size | 1K entries |
| Jumbo Frame Support | 1536 bytes |
| Features | Self-healing network, VLAN mode, PoE extend-mode, Auto MDIX, NwWay protocol support, Store-and-forward technology, 4KV lightning protection (common mode), 2KV lightning protection (differential mode), 8KV ESD Protector (air-gap discharge), 6KV ESD Protector (contact discharge), fanless |
| Compliant Standards | IEEE 802.3at, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Status Indicators | Power, link/activity, PoE |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| MTBF | 50,000 hours |
| Compliant Standards | NDAA, FCC, RoHS, UKCA |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 5 - 90% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 6.6 in |
| Depth | 3.7 in |
| Height | 1.3 in |
| Weight | 13.4 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 2.71 lbs |
