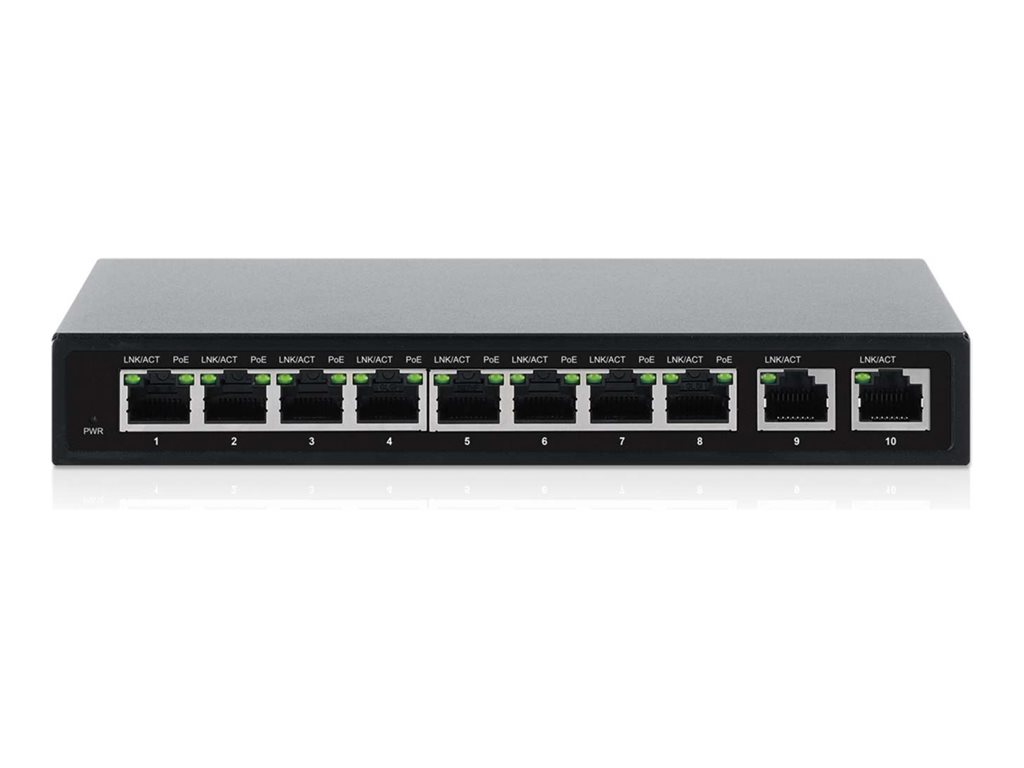

Switch - unmanaged - 8 x 10/100/1000 (PoE+) + 2 x 10/100/1000 (uplink) - desktop, wall-mountable - PoE+ (58 W)
| Main Specifications | |
|---|---|
| Product Description | Intellinet - switch - 10 ports - unmanaged |
| Device Type | Switch - 10 ports - unmanaged |
| Ports | 8 x 10/100/1000 (PoE+) + 2 x 10/100/1000 (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 58 W |
| Performance | Forwarding rate: 14.88 Mpps ¦ Switching capacity: 20 Gbps ¦ Buffer memory: 1.5 Mbit |
| MAC Address Table Size | 4K entries |
| Jumbo Frame Support | 9216 bytes |
| Features | VLAN mode, flow control, Auto MDIX, NwWay protocol support, store and forward, ground points, 8KV ESD Protector (air-gap discharge), 6KV ESD Protector (contact discharge), fanless, metal housing |
| Compliant Standards | IEEE 802.3ab, IEEE 802.3az, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Power | AC 100-240 V (50 - 60 Hz) |
| Dimensions (WxDxH) | 7.5 in x 3.9 in x 1.1 in |
| Weight | 17.64 oz |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Switch - 10 ports - unmanaged |
| Enclosure Type | Desktop, wall-mountable |
| Ports | 8 x 10/100/1000 (PoE+) + 2 x 10/100/1000 (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 58 W |
| Performance | Forwarding rate: 14.88 Mpps ¦ Switching capacity: 20 Gbps ¦ Buffer memory: 1.5 Mbit |
| MAC Address Table Size | 4K entries |
| Jumbo Frame Support | 9216 bytes |
| Features | VLAN mode, flow control, Auto MDIX, NwWay protocol support, store and forward, ground points, 8KV ESD Protector (air-gap discharge), 6KV ESD Protector (contact discharge), fanless, metal housing |
| Compliant Standards | IEEE 802.3ab, IEEE 802.3az, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Status Indicators | Power, link/activity, PoE |
| Expansion / Connectivity | |
| Interfaces | 8 x 10/100/1000 Base-T RJ-45 PoE+ ¦ 2 x 10/100/1000 Base-T RJ-45 uplink |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| MTBF | 50,000 hours |
| Compliant Standards | NDAA, FCC, RoHS, UKCA |
| Power | |
| Power Device | External power adapter |
| Power Provided | DC 53.5 V |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Power Consumption Operational | 68 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 5 - 90% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 7.5 in |
| Depth | 3.9 in |
| Height | 1.1 in |
| Weight | 17.64 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 2.51 lbs |
