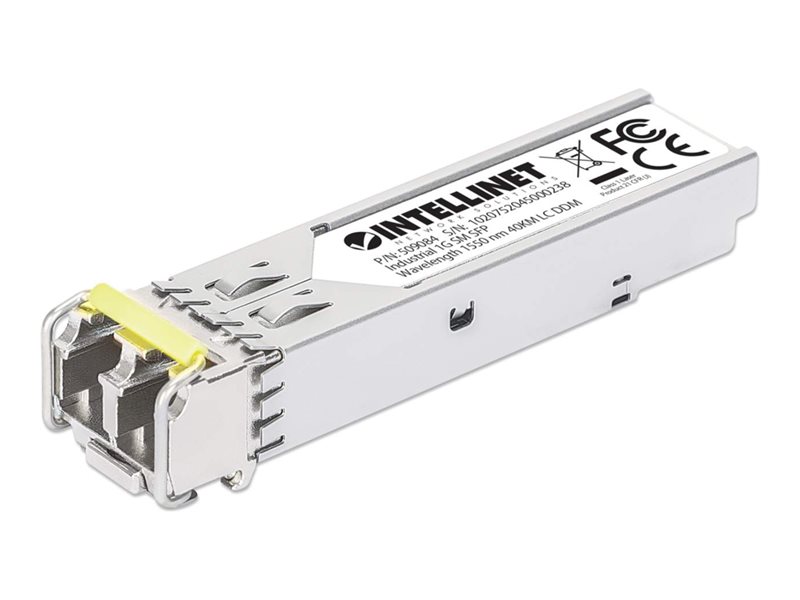

SFP (mini-GBIC) transceiver module (equivalent to: Cisco GLC-EX-SM1550-40) - 1GbE - 1000Base-LX - LC single-mode - up to 24.9 miles - 1550 nm
| Main Specifications | |
|---|---|
| Product Description | Intellinet - SFP (mini-GBIC) transceiver module - 1GbE |
| Device Type | SFP (mini-GBIC) transceiver module - LC single-mode |
| Form Factor | Plug-in module |
| Cabling Type | 1000Base-LX |
| Data Transfer Rate | 1 Gbps |
| Optical Wave Length | 1550 nm |
| Data Link Protocol | 1GbE |
| Max Transfer Distance | 24.9 miles |
| OEM Manufacturer Equivalent Part Number | Cisco GLC-EX-SM1550-40 |
| Dimensions (WxDxH) | 0.6 in x 2.2 in x 0.5 in |
| Weight | 0.71 oz |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | SFP (mini-GBIC) transceiver module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 1000Base-EX (duplex) - LC single-mode x 2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | MSA, NDAA, FCC Class B certified, SFF-8472, RoHS, UKCA |
| OEM Manufacturer Equivalent Part Number | Cisco GLC-EX-SM1550-40 |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-LX |
| Data Link Protocol | 1GbE |
| Data Transfer Rate | 1 Gbps |
| Optical Wave Length | 1550 nm |
| Max Transfer Distance | 24.9 miles |
| Features | Digital Diagnostics Monitoring (DDM), metal housing, low EMI, hot-pluggable |
| Compliant Standards | IEEE 802.3z |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 185 °F |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 0.6 in |
| Depth | 2.2 in |
| Height | 0.5 in |
| Weight | 0.71 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 1.06 oz |
