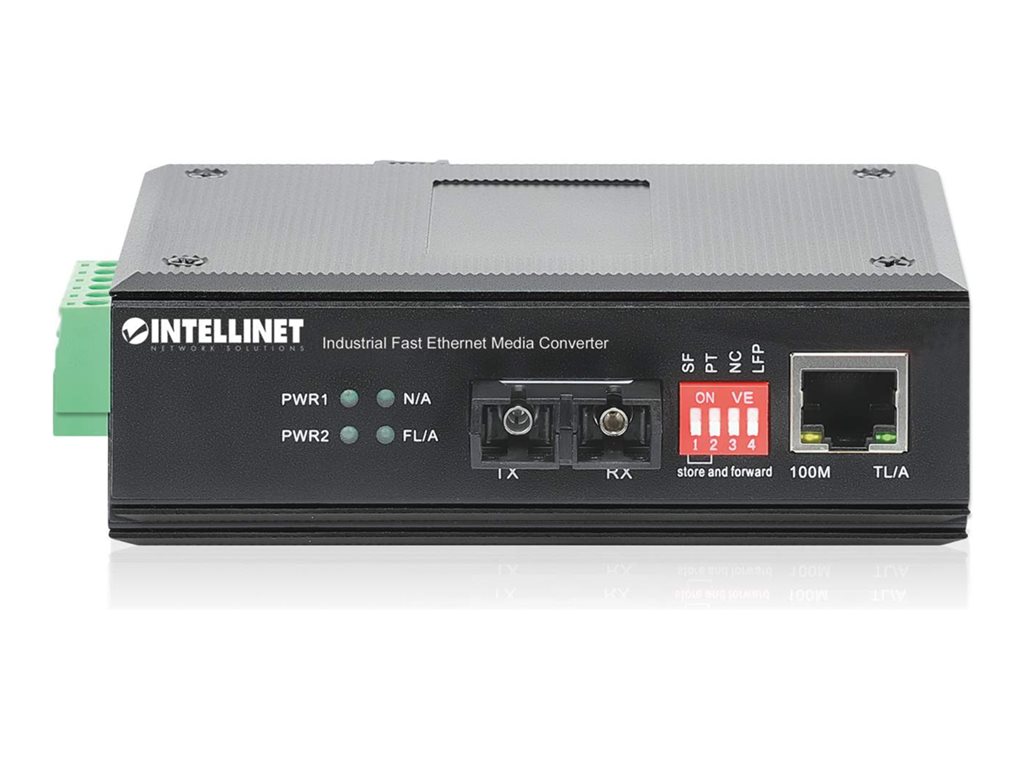

Fiber media converter - 100Mb LAN - 10Base-T, 100Base-FX, 100Base-TX - RJ-45 / SC multi-mode - up to 1.2 miles - 1310 nm
| Main Specifications | |
|---|---|
| Product Description | Intellinet - fiber media converter - 10Mb LAN, 100Mb LAN |
| Device Type | Fiber media converter - RJ-45 / SC multi-mode |
| Form Factor | DIN rail mountable |
| Cabling Type | 10Base-T, 100Base-FX, 100Base-TX |
| Data Transfer Rate | 100 Mbps |
| Optical Wave Length | 1310 nm |
| Data Link Protocol | 10Mb LAN, 100Mb LAN |
| Max Transfer Distance | 1.2 miles |
| Power | DC 12 - 56 V |
| Dimensions (WxDxH) | 3.2 in x 4.5 in x 1.4 in |
| Weight | 10.58 oz |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Fiber media converter |
| Form Factor | DIN rail mountable |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10/100Base-TX - RJ-45 female ¦ 1 x Ethernet 100Base-FX - SC single-mode x 2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | IP40, NDAA, FCC, RoHS, UKCA, IEC/EN 60715, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6 |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-FX, 100Base-TX |
| Data Link Protocol | 10Mb LAN, 100Mb LAN |
| Data Transfer Rate | 100 Mbps |
| Optical Wave Length | 1310 nm |
| MAC Address Table Size | 2K entries |
| Max Transfer Distance | 1.2 miles |
| Status Indicators | Power 1, power 2, copper, fiber, link/activity |
| Features | Metal housing, 6KV ESD Protector (contact discharge), 6KV Surge protection, 8KV ESD Protector (air-gap discharge), auto-negotiation, half/full duplex mode, MAC address auto-aging, MAC address auto-learning, 9 KB Jumbo Frame, fanless, Link Fault Pass Through function (LFP) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u |
| Power | |
| Power Device | External power adapter (not included) |
| Voltage Required | DC 12 - 56 V |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 185 °F |
| Humidity Range Operating | 5 - 90% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 3.2 in |
| Depth | 4.5 in |
| Height | 1.4 in |
| Weight | 10.58 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 15.17 oz |
