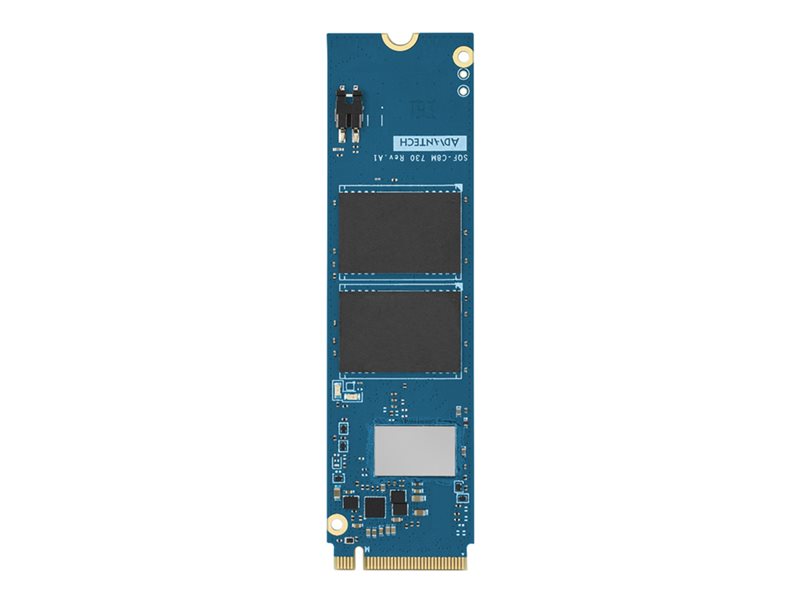

SSD - 2 TB - internal - M.2 NGFF 2280 - PCIe 4.0 x4 (NVMe)
| Main Specifications | |
|---|---|
| Product Description | Advantech SQFlash C8M 730 - SSD - 2 TB - PCIe 4.0 x4 (NVMe) |
| Type | Solid state drive - internal |
| Capacity | 2 TB |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Form Factor | M.2 NGFF 2280 |
| Interface | PCIe 4.0 x4 (NVMe) |
| Features | LDPC ECC engine support, Life Monitoring, SMART management, GUI management tool, 256-bit AES |
| Dimensions (WxDxH) | 0.9 in x 3.1 in x 0.1 in |
| General | |
| Device Type | Solid state drive - internal |
| Capacity | 2 TB |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Form Factor | M.2 NGFF 2280 |
| Interface | PCIe 4.0 x4 (NVMe) |
| Features | LDPC ECC engine support, Life Monitoring, SMART management, GUI management tool, 256-bit AES |
| Width | 0.9 in |
| Depth | 3.1 in |
| Height | 0.1 in |
| Miscellaneous | |
| Compliant Standards | FCC, OPAL 2.0, TCG Certified |
| Power | |
| Power Consumption | 4.8 watt (write) ¦ 5.1 watt (read) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Shock Tolerance (operating) | 1500 g @ 0.5 ms |
| Vibration Tolerance (operating) | 20 g @ 80-2000 Hz |
| Performance | |
| Internal Data Rate | 4900 MBps (read) / 3700 MBps (write) |
| Expansion & Connectivity | |
| Interfaces | 1 x PCI Express 4.0 x4 (NVMe) - M.2 M key |
| Compatible Bay | M.2 NGFF 2280 |
