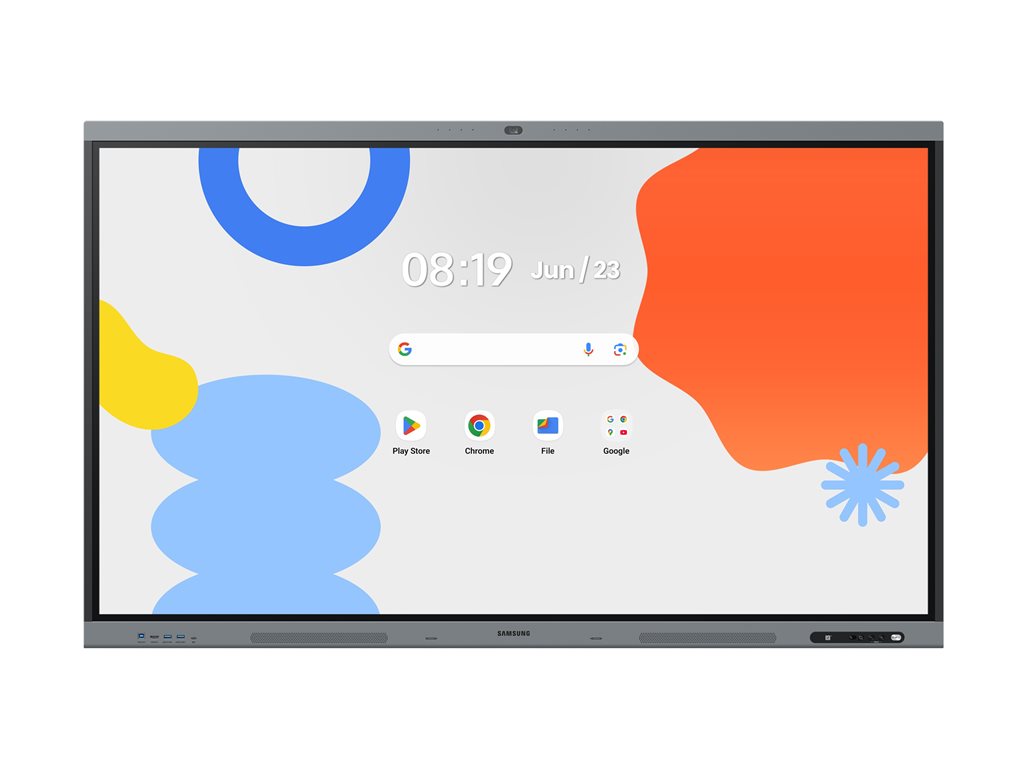

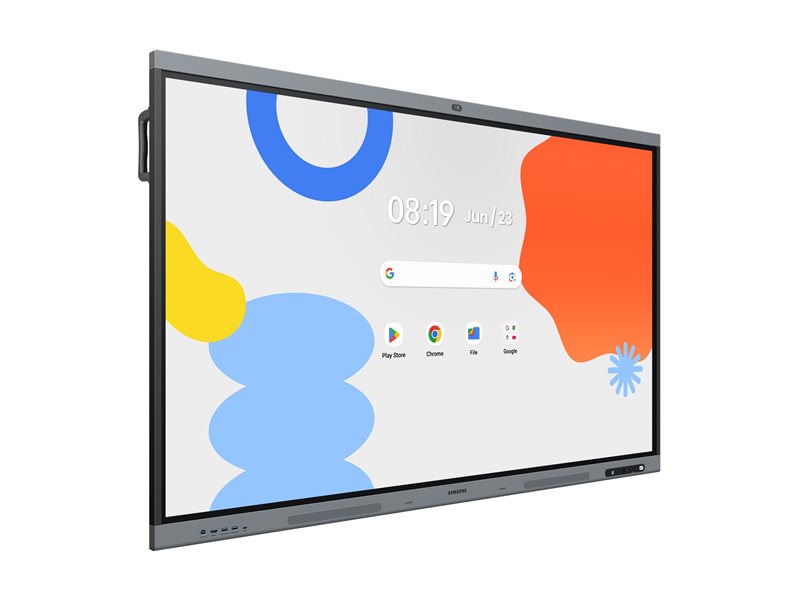

86" Diagonal Class WAFX-P Series LED-backlit LCD display - education / business - with built-in interactive whiteboard, touchscreen (multi touch), 48Mp camera and microphone - Android - 4K UHD (2160p) 3840 x 2160 - dark blue/gray, black
| Main Specifications | |
|---|---|
| Product Description | Samsung Interactive Display WA86FX-P WAFX-P Series - 86" LED-backlit LCD display - 4K - for education / business |

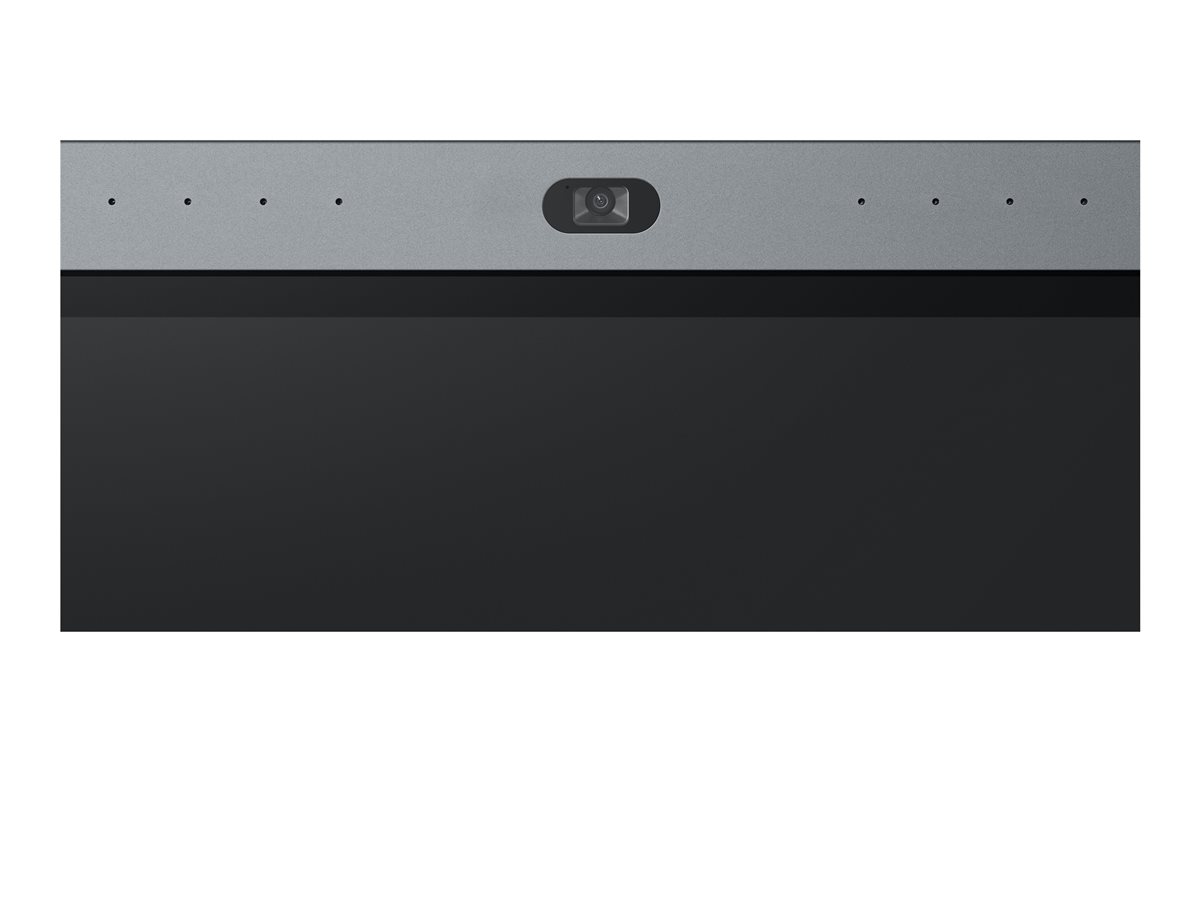

| Product Type | LED-backlit LCD flat panel display with built-in interactive whiteboard, touchscreen (multi touch), 48Mp camera and microphone |
| Diagonal Class | 86" |
| Commercial Use | Yes - education / business |
| Color | Dark blue/gray, black |
| Platform | Android |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
| Video Interface | HDMI, USB-C |
| HDMI Ports Qty | 2 ports |
| Connectivity | Wi-Fi, LAN, Bluetooth |
| PC Interface | DisplayPort |
| Technology | IPS |
| LCD Backlight Technology | LED backlight |
| Image Aspect Ratio | 16:9 |
| TV Tuner | No tuner |
| Commercial Features | Open Pluggable Standard (OPS) support, built-in Live Caption, AI Write & Search |
| Picture Enhancements | 72% Color Gamut |
| Speaker System | 2 speakers, woofer |
| Storage Capacity | 128 GB |
| USB | 6 ports |
| Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 529 Watt |
| Dimensions (WxDxH) - without stand | 76.8 in x 3.4 in x 46.2 in |
| Weight | 134.26 lbs |
| General | |
| Product Type | LED-backlit LCD flat panel display |
| Power Consumption Operational | 529 Watt |
| Diagonal Class | 86" |
| Commercial Use | Yes - education / business |
| Combined With | Built-in interactive whiteboard, touchscreen (multi touch), 48Mp camera and microphone |
| Series | WAFX-P Series |
| Platform | Android |
| Operating System | Android OS 15 |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Video Interface | HDMI, USB-C |
| HDMI Ports Qty | 2 ports |
| PC Interface | DisplayPort |
| Modes | Multi-screen mode |
| Picture Enhancements | 72% Color Gamut |
| Dimensions | Without stand |
| Width | 76.8 in |
| Depth | 3.4 in |
| Height | 46.2 in |
| Weight | 134.26 lbs |
| Enclosure Color | Dark blue/gray, black |
| Miscellaneous | |
| Compliant Standards | Google EDLA, HDCP 2.2, FCC 47 CFR Part 15 Subpart B, EN 55032:2015 + A11:2020, IEC 62368-1, UL 62368-1, IEC 60950-1, IS 13252 |
| Power | |

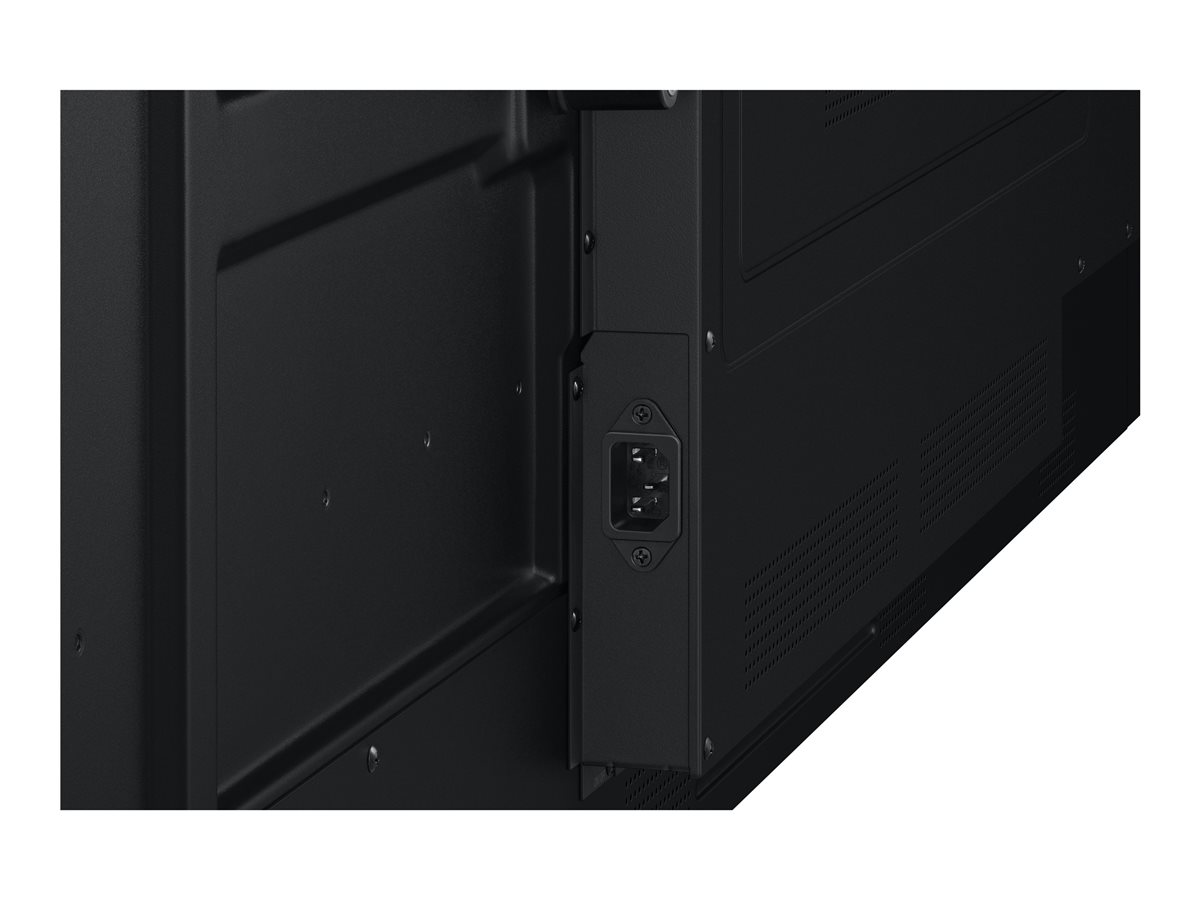

| Power Device | Power supply |
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption Sleep | 0.5 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 80% (non-condensing) |
| Display | |
| LCD Display Technology | IPS |
| Pixel Pitch | 0.493 mm |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Image Aspect Ratio | 16:9 |
| Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
| LCD Backlight Technology | LED backlight |
| Coating | 25% haze |
| Dynamic Contrast Ratio | 1200:1 |
| Brightness | 450 cd/m² |
| Viewing Angle | 178° |
| Viewing Angle (Vertical) | 178° |
| Response Time | 8 ms |
| Commercial Features | Open Pluggable Standard (OPS) support, built-in Live Caption, AI Write & Search |
| Operation Hours / Days | 12 / 7 |
| Additional Features | Infrared multitouch technology, split screen |
| Connections | |

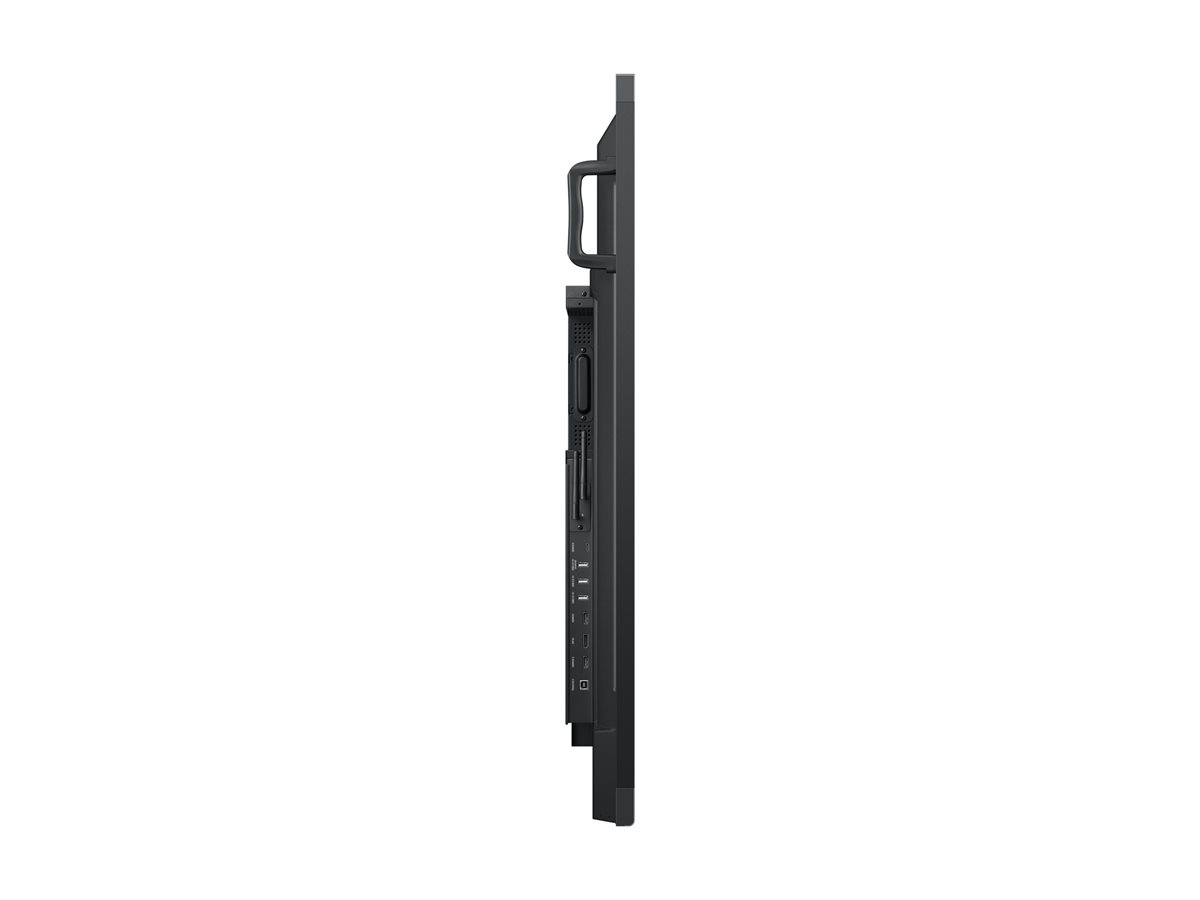

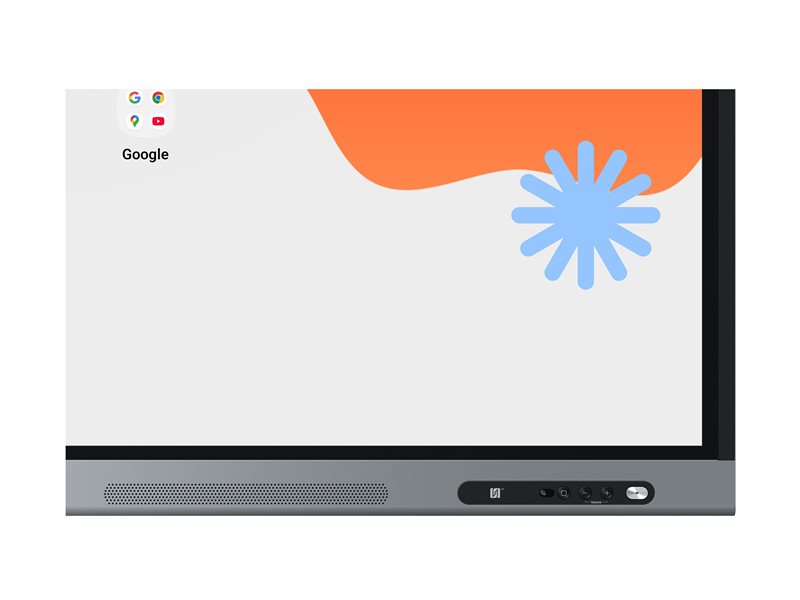

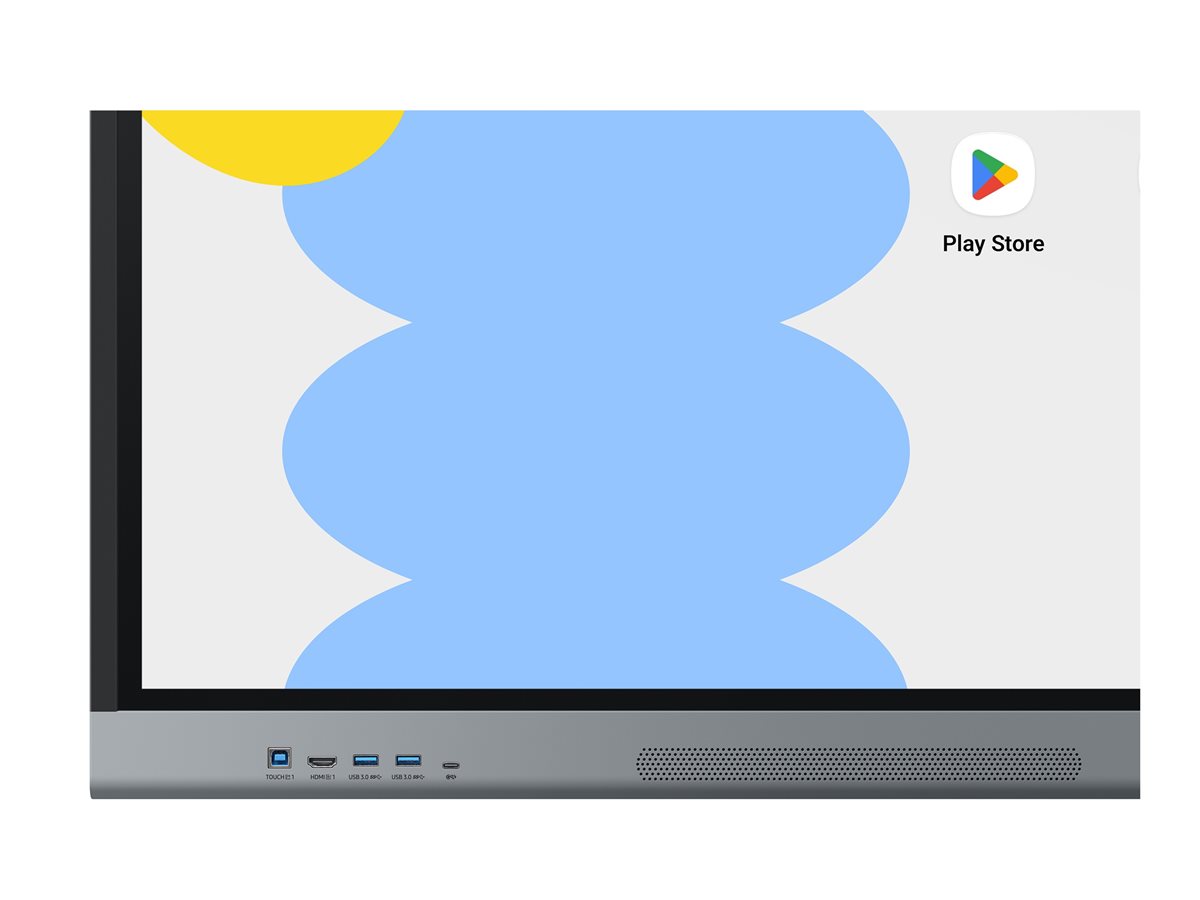

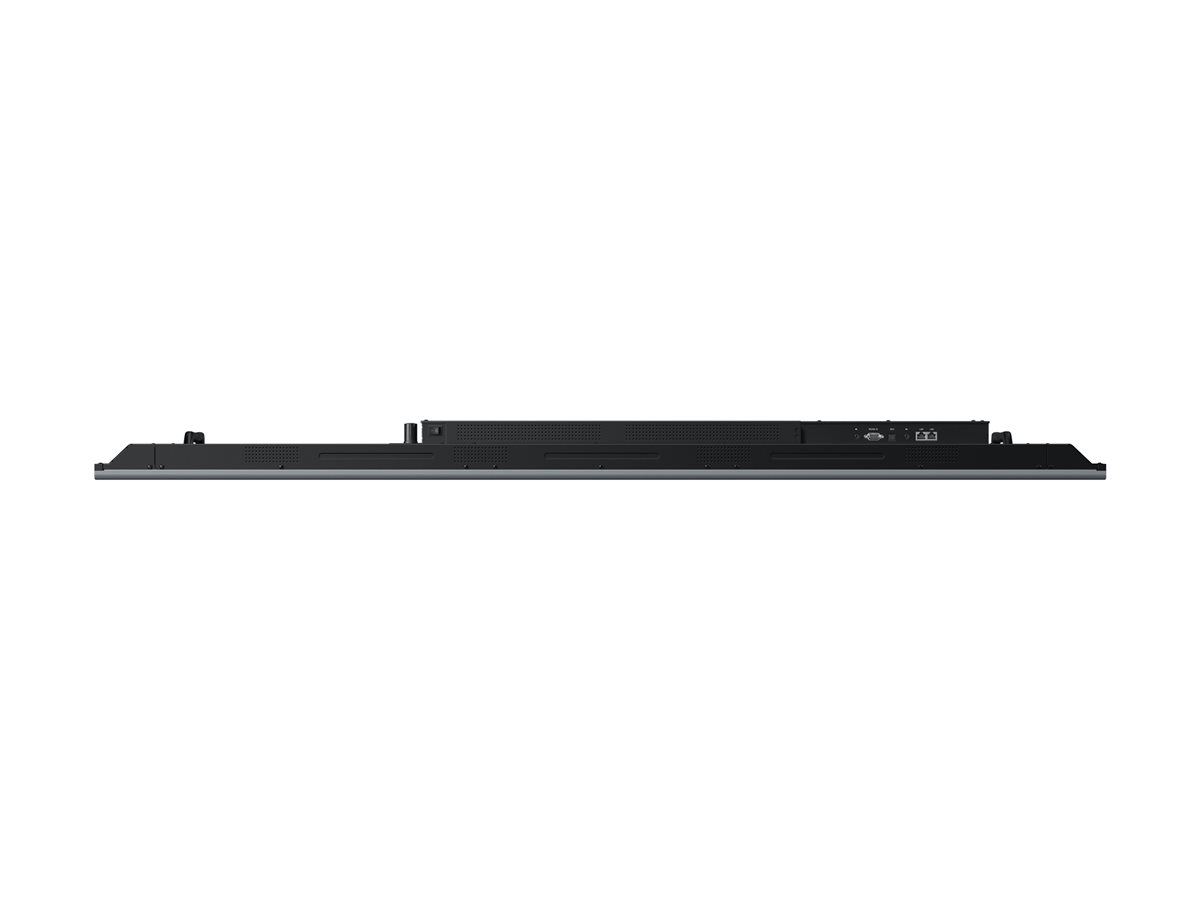

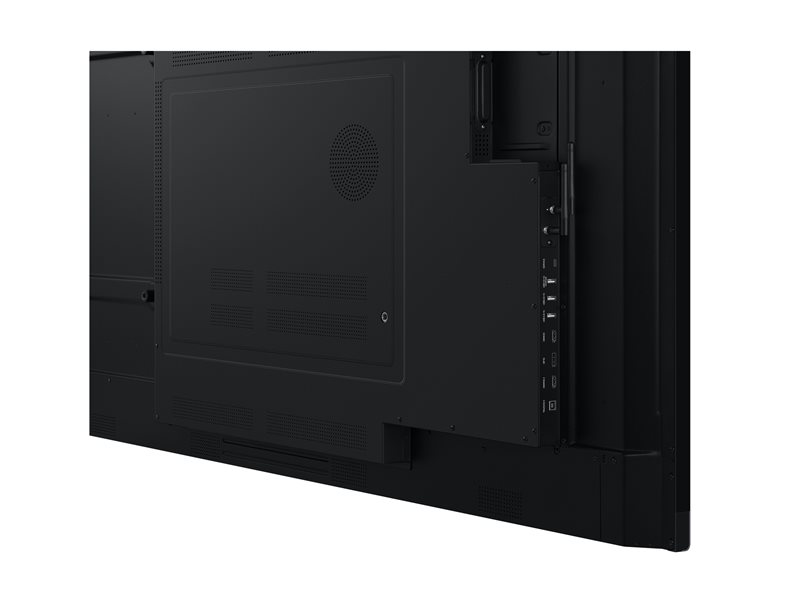

| Connector Type | 2 x HDMI - side ¦ DisplayPort input - side ¦ Audio input - bottom ¦ Audio output - bottom ¦ RS-232 input - bottom ¦ LAN input - bottom ¦ LAN output - bottom ¦ Touch - side ¦ 3 x USB 2.0 - side ¦ Service - side ¦ Touch out - front ¦ 2 x USB 3.0 - front ¦ USB - front |
| Audio System | |
| Speaker System | 2 speakers, woofer |
| Output Power / Total | 60 Watt |
| Speakers | 2 x speaker - 20 Watt ¦ 1 x woofer - 20 Watt |
| Dimensions & Weight (Shipping) | |
| Width (Shipping) | 82.5 in |
| Depth (Shipping) | 7.3 in |
| Height (Shipping) | 49.8 in |
| Weight (Shipping) | 158.29 lbs |
| Network & Internet Multimedia | |
| Functionality | Whiteboard, WEB browsing |
| Connectivity | Wi-Fi, LAN, Bluetooth |
| LAN Protocol | Ethernet |
| Wi-Fi Protocol | 802.11ax |
| Connect & Share | Screen Share |
| Application Store | Google Play |
| Stands & Mounts | |

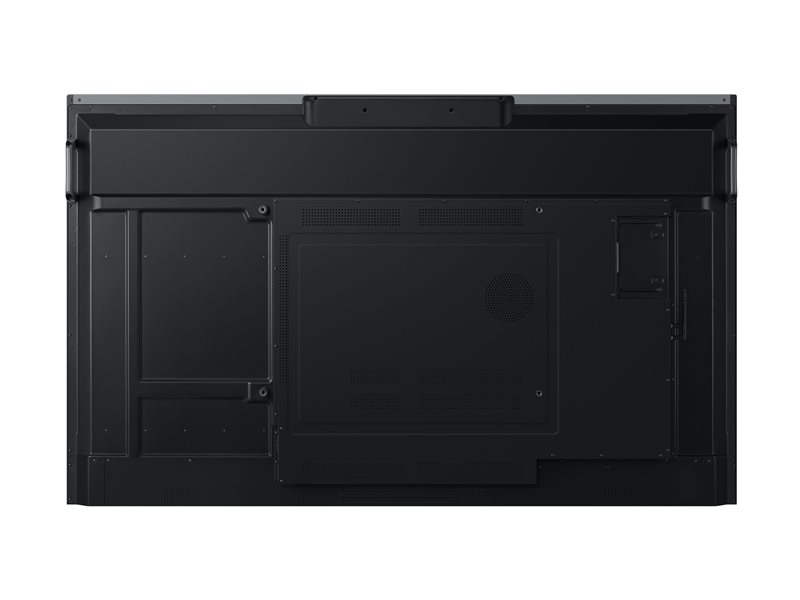

| Flat Panel Mount Interface | 800 x 600 mm |
| VESA Compatibility | Yes |
| Media Player | |
| USB Port | Yes |
| USB Ports Qty | 6 |
| Configuration | Octa-Core 128 GB |
