Power supply (internal) - ATX12V 3.1 - 80 PLUS Platinum - AC 100-240 V - 1200 Watt - active PFC
| Main Specifications | |
|---|---|

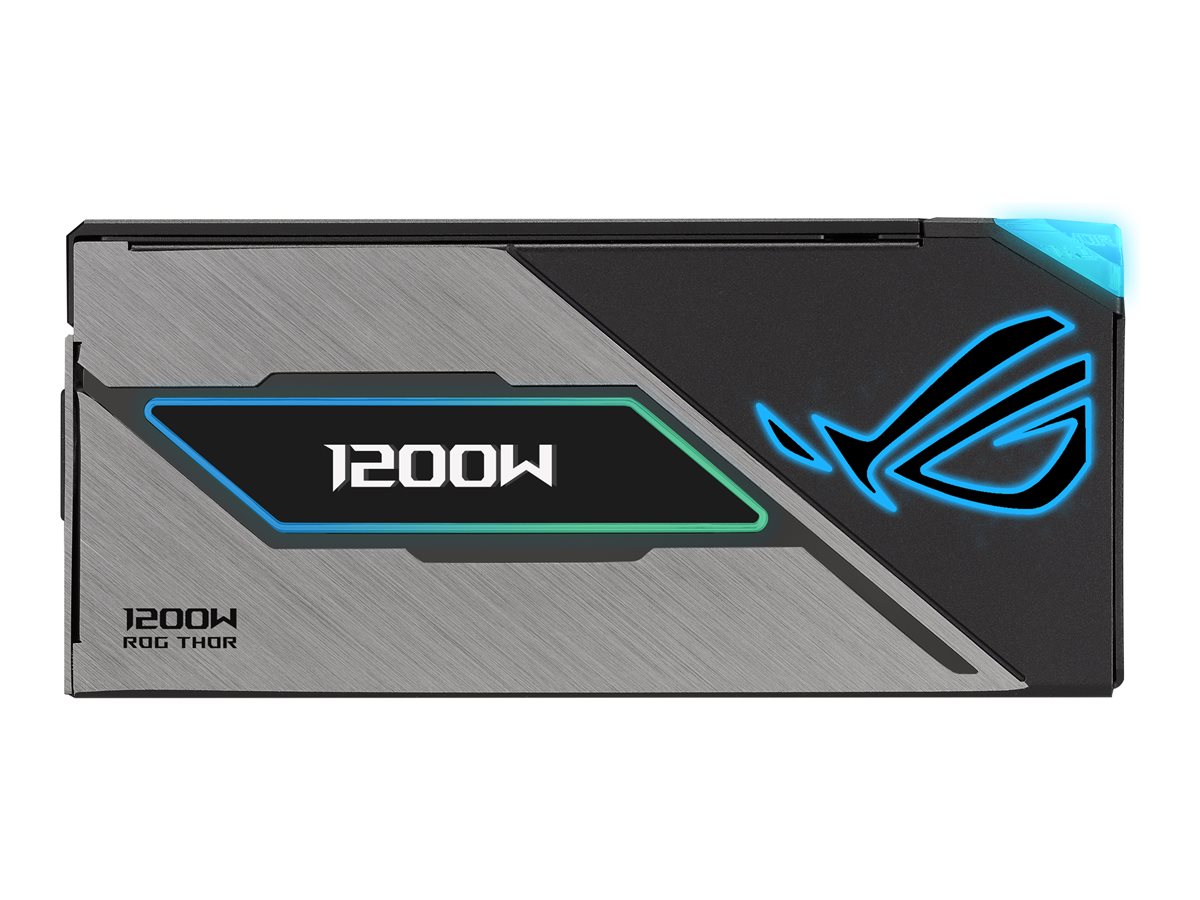

| Product Description | ASUS ROG THOR Titanium III - power supply - 1200 Watt |
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 3.1 |
| 80 PLUS Certification | 80 PLUS Platinum |
| Weight | 5.22 lbs |
| Input Voltage | AC 100-240 V |
| Output Voltage | +3.3, +5, ±12 V, +5Vsb V |
| Power Capacity | 1200 Watt |
| Output Current | +3.3V - 30 A ¦ +5V - 25 A ¦ +12V - 100 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
| Output connectors | 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 1 x 16 pin PCI Express power ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 7 x 15 pin Serial ATA power ¦ 6 x 4 pin internal power |
| Modular Cable Management | Yes |
| Included Accessories | ROG sticker, 6 x ROG cable ties, 12 cable ties, screw pack |
| Dimensions (WxDxH) | 5.9 in x 7.5 in x 3.4 in |
| Manufacturer Warranty | 10-year warranty |
| General | |
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 3.1 |
| PSU Form Factor | ATX |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 10 years |
| Miscellaneous | |
| Included Accessories | ROG sticker, 6 x ROG cable ties, 12 cable ties, screw pack |
| Cables Included | AC input cable - external ¦ Power 24 pin ATX with detachable 4 pin section modular cable 2 ft ¦ 2 x power 8 pin +12V with detachable 4 pin section modular cable 3.3 ft ¦ 16-pin 12VHPWR power cable 2.5 ft ¦ 4 x 8 pin PCI Express power with detachable 2 pin section modular cable 2.5 ft ¦ 2 x Serial ATA cable ¦ 2 x 4 pin internal power cable ¦ ARGB sync cable |
| MTBF | 120,000 hours |
| Features | GaN MOSFET, OLED display, ROG heatsink, aluminum enclosure, dual ball bearing cooling fan, overvoltage protection, overpower protection, undervoltage protection, overcurrent protection, short-circuit protection, thermal protection, fully modular, ASUS Aura Sync, 0db Technology, 0dB fan button, Lambda A++ Certification |
| Compliant Standards | RoHS |
| Power Device | |
| Input Voltage | AC 100-240 V |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 1 x 16 pin PCI Express power ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 7 x 15 pin Serial ATA power ¦ 6 x 4 pin internal power |
| Output Voltage | +3.3, +5, ±12 V, +5Vsb V |
| Power Capacity | 1200 Watt |
| Output Current | +3.3V - 30 A ¦ +5V - 25 A ¦ +12V - 100 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Platinum |
| Dimensions & Weight | |
| Width | 5.9 in |
| Depth | 7.5 in |
| Height | 3.4 in |
| Weight | 5.22 lbs |
