Network adapter - Thunderbolt 5 - 8Gb Fibre Channel x 2 - TAA Compliant
| Main Specifications | |
|---|---|

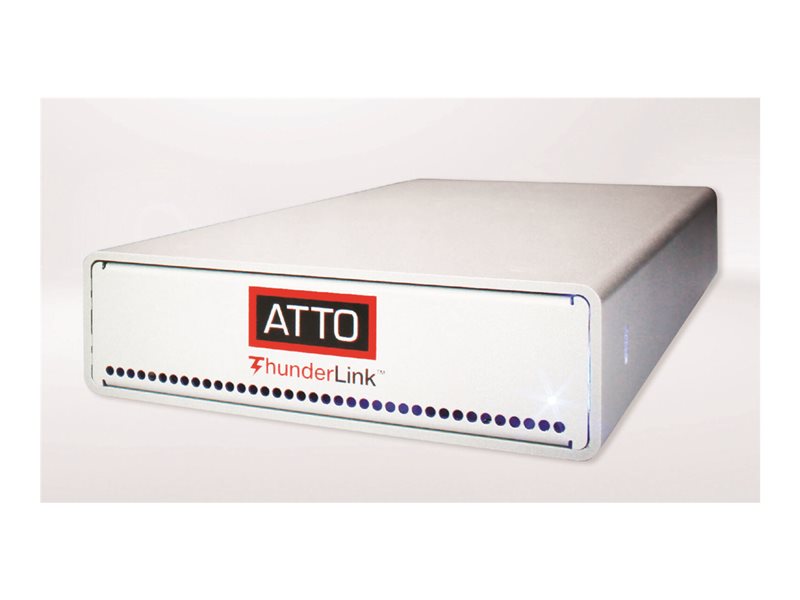

| Product Description | ATTO ThunderLink FC 5082 - network adapter - Thunderbolt 5 - 8Gb Fibre Channel x 2 - TAA Compliant |
| Device Type | Network adapter |
| Form Factor | External |
| Interface (Bus) Type | Thunderbolt 5 |
| Ports | 8Gb Fibre Channel x 2 |
| Dimensions (WxDxH) | 4.1 in x 9.4 in x 1.4 in |
| Localization | United States |
| Data Link Protocol | 8Gb Fibre Channel |
| Data Transfer Rate | 8 Gbps |
| Network / Transport Protocol | TCP/IP, UDP/IP |
| Compliant Standards | IEEE 802.3by, IEEE 802.3ba, IEEE 802.3cd, IEEE 802.3z, IEEE 802.3az, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1Qbb |
| Power | AC 100-240 V (50/60 Hz) |
| System Requirements | Apple MacOS, Linux, Microsoft Windows |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Network adapter |
| Form Factor | External |
| Interface (Bus) Type | Thunderbolt 5 |
| Localization | United States |
| Expansion / Connectivity | |
| Interfaces | 2 x 8Gb Fibre Channel - SFP+ ¦ 2 x Thunderbolt 5 - 24 pin USB-C |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | FCC Part 15 B Class B., EN 55032 Class B, EN55024, IEC 62368-1, EN 60825-1, EN 60825-2, cTUVus, RoHS 2011/65/EU, RoHS, Plug and Play |
| TAA Compliant | Yes |
| Networking | |
| Ports | 8Gb Fibre Channel x 2 |
| Connectivity Technology | Wired |
| Data Link Protocol | 8Gb Fibre Channel |
| Data Transfer Rate | 8 Gbps |
| Network / Transport Protocol | TCP/IP, UDP/IP |
| Remote Management Protocol | SNMP, RMON |
| Status Indicators | Port transmission speed, link/activity |
| Features | PCI-SIG SR-IOV-ready, MSI-X, Advanced Packet Filtering, VLAN support, tag-based VLANs, QoS, congestion control, VXLAN stripping, VXLAN filtering, NVGRE, DCA, RDMA support |
| Compliant Standards | IEEE 802.3by, IEEE 802.3ba, IEEE 802.3cd, IEEE 802.3z, IEEE 802.3az, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1Qbb |
| Power | |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Software / System Requirements | |
| OS Required | Apple MacOS, Linux, Microsoft Windows |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 4.1 in |
| Depth | 9.4 in |
| Height | 1.4 in |
