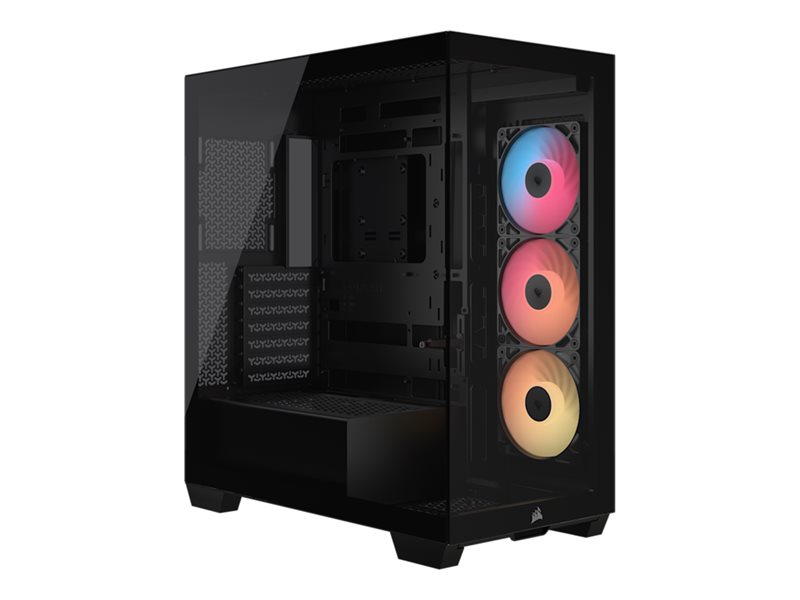

Mid tower - extended ATX - windowed side panel (tempered glass) - no power supply (ATX) - black - USB/Audio
| Main Specifications | |
|---|---|
| Product Description | CORSAIR 3500X RS-R ARGB - mid tower - extended ATX |
| Product Type | System cabinet |
| Form Factor | Mid tower |
| Windowed Side Panel | Yes, tempered glass |
| Color | Black |
| I/O Connectors | 1 x USB-C 3.2 Gen 2 ¦ 2 x USB 3.2 Gen 1 ¦ 1 x headphone/microphone |
| Supported Motherboards | Extended ATX, ATX, microATX, Mini-ITX |
| System Cabinet Features | Cable management system (38 mm clearance), support back-connect motherboard, 2-piece panoramic glass, side magnetic dust filter, bottom dust filter, top magnetic dust filter, ARGB fans |
| Power Device | No power supply (ATX) |
| Dimensions (WxDxH) | 9.4 in x 18.1 in x 19.9 in |
| Weight | 23.5 lbs |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Form Factor | Mid tower |
| Windowed Side Panel | Yes |
| Windowed Side Panel Material | Tempered glass |
| Max Mainboard Size | Extended ATX |
| Supported Motherboards | Extended ATX, ATX, microATX, Mini-ITX |
| Internal Bays Qty | 4 |
| Product Material | Steel, tempered glass |
| Color | Black |
| Cooling System | Side: 120 mm fan x 3 / ARGB fan, 2 x 140 mm fan supported or 240/280/360 mm radiator supported ¦ Top: 120 mm fan mount x 3 / 2 x 140 mm fan or 240/280/360mm radiator supported ¦ PSU shroud: 120 mm fan mount x 2 ¦ Bottom: 120 mm fan mount x 1 / 1 x 140 mm fan supported ¦ Rear: 120 mm fan mount x 1 / 120 mm radiator supported |
| CPU Cooler Max Height | 170 mm |
| Video Card Max Length | 410 mm |
| Power Supply Max Length | 180 mm |
| System Cabinet Features | Cable management system (38 mm clearance), support back-connect motherboard, 2-piece panoramic glass, side magnetic dust filter, bottom dust filter, top magnetic dust filter, ARGB fans |
| Expansion / Connectivity | |
| Expansion Bays | 2 (total) / 2 (free) x internal - 3.5" ¦ 2 (total) / 2 (free) x internal - 2.5" |
| Expansion Slots | 7 x horizontal ¦ 4 x vertical |
| Interfaces | 1 x USB-C 3.2 Gen 2 ¦ 2 x USB 3.2 Gen 1 ¦ 1 x headphone/microphone - mini-jack |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | Graphic card holder, 3 x RS120-R ARGB fans, cable ties, screws |
| Power | |
| Power Device | No power supply |
| Specification Compliance | ATX |
| Max Supported Qty | 1 |
| Dimensions & Weight | |
| Width | 9.4 in |
| Depth | 18.1 in |
| Height | 19.9 in |
| Weight | 23.5 lbs |
