Security appliance - 2.5GbE, 5GbE, 10GbE - desktop
| Main Specifications | |
|---|---|

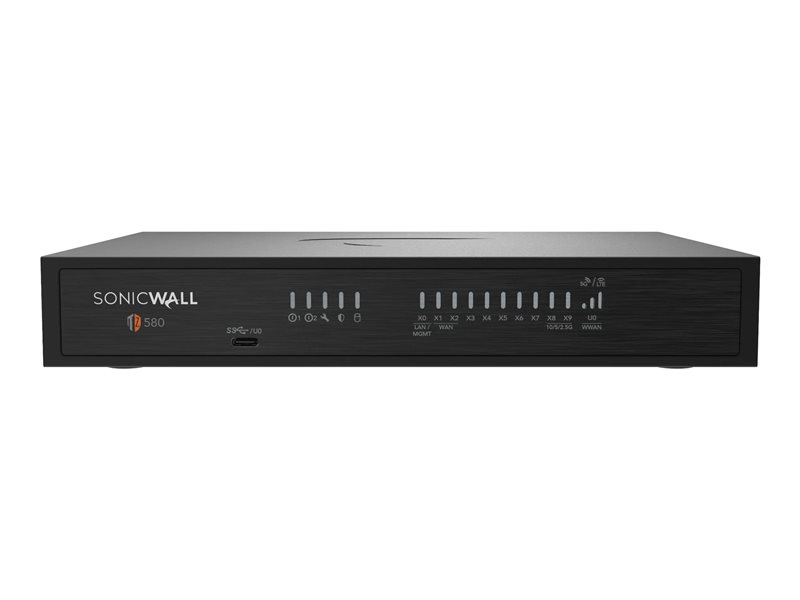

| Product Description | SonicWall TZ Series (Gen 8) TZ580 - security appliance |
| Device Type | Security appliance |
| Form Factor | Desktop |
| Data Link Protocol | Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet |
| Performance | Firewall throughput: 4.5 Gbps ¦ Threat prevention throughput: 2.2 Gbps ¦ Application throughput: 2.5 Gbps ¦ IPS throughput: 2.5 Gbps ¦ Anti-malware throughput: 2.3 Gbps ¦ TLS/SSL inspection and decryption throughput: 750 Mbps ¦ VPN throughput (IPSec): 2.2 Gbps ¦ Connection rate: 20000 connections per second |
| Capacity | Virtual interfaces (VLANs): 256 ¦ SSL VPN licenses: 2 (maximum 200) ¦ VPN tunnels (site-to-site): 250 ¦ IPSec VPN clients: 10 (maximum 500) ¦ SPI connections: 1400000 ¦ DPI connections: 500000 ¦ DPI SSL connections: 50000 ¦ Single Sign-On (SSO) users: 2500 ¦ Maximum number of access points: 32 |
| VoIP Protocols | SIP, H.323 v1.5 |
| OS Required | Linux, Microsoft Windows 10 / 11, Apple MacOS X |
| Power | AC 100-240 V (50 - 60 Hz) |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 7.5 in x 5.1 in x 1.4 in |
| Weight | 34.21 oz |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Security appliance |
| Width | 7.5 in |
| Depth | 5.1 in |
| Height | 1.4 in |
| Weight | 34.21 oz |
| Expansion / Connectivity | |
| Interfaces | 8 x 1000Base-T - RJ-45 ¦ 2 x 1/2.5/5/10GBase-T - SFP ¦ USB 3.0 - Type C ¦ 1 x console - micro-USB |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| MTBF | 30.7 years |
| Compliant Standards | FIPS 140-2 Level 2, ICSA Firewall certified, ICSA Antivirus, Common Criteria, FCC Class B certified, ICES Class B, EMC, LVD, RoHS, C-Tick, VCCI Class B, UL, cUL, TUV GS, CB, WEEE, REACH, BSMI, KCC, MSIP, ANATEL |
| Networking | |
| Form Factor | Desktop |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet |
| Network / Transport Protocol | TCP/IP, PPTP, UDP/IP, L2TP, ICMP/IP, IPSec, PPPoE, DHCP |
| Routing Protocol | OSPF, RIP-1, RIP-2, BGP, static IP routing, policy-based routing (PBR) |
| Remote Management Protocol | SNMP 2, SNMP 3, HTTP, HTTPS, CLI, SSH |
| Performance | Firewall throughput: 4.5 Gbps ¦ Threat prevention throughput: 2.2 Gbps ¦ Application throughput: 2.5 Gbps ¦ IPS throughput: 2.5 Gbps ¦ Anti-malware throughput: 2.3 Gbps ¦ TLS/SSL inspection and decryption throughput: 750 Mbps ¦ VPN throughput (IPSec): 2.2 Gbps ¦ Connection rate: 20000 connections per second |
| Capacity | Virtual interfaces (VLANs): 256 ¦ SSL VPN licenses: 2 (maximum 200) ¦ VPN tunnels (site-to-site): 250 ¦ IPSec VPN clients: 10 (maximum 500) ¦ SPI connections: 1400000 ¦ DPI connections: 500000 ¦ DPI SSL connections: 50000 ¦ Single Sign-On (SSO) users: 2500 ¦ Maximum number of access points: 32 |
| Status Indicators | Link/activity, power, secure, SSD activity, test mode |
| Features | SD-WAN support, VLAN support, firewall protection, VPN support, NAT support, Quality of Service (QoS), DHCP server, DHCP relay, Deep Packet Inspection (DPI), content filtering, antivirus analysis, anti-spam protection, Stateful Packet Inspection (SPI), DoS attack prevention, IPv4 support, IPv6 support, Jumbo Frames support, VLAN trunking, port mirroring, bandwidth control, Common Access Card (CAC) reader support, NetFlow, PAT support, 5G USB Dongle Support, Single Sign-On (SSO) support, Dead Peer Detection (DPD), IPSec NAT-Traversal (NAT-T), DDos attack prevention, Trusted Platform Module (TPM) |
| Encryption Algorithm | DES, Triple DES, MD5, SHA-1, 128-bit AES, 192-bit AES, 256-bit AES |
| Authentication Method | RADIUS, LDAP, XAUTH authentication |
| Power | |
| Power Device | External power adapter |
| Power Redundancy | Optional |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Power Provided | 60 Watt |
| Software / System Requirements | |
| OS Provided | SonicOS 8.0 |
| OS Required | Linux, Microsoft Windows 10 / 11, Apple MacOS X |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 9.1 in |
| Shipping Depth | 9 in |
| Shipping Height | 2.8 in |
| Shipping Weight | 4.25 lbs |
| IP Telephony | |
| VoIP Protocols | SIP, H.323 v1.5 |
