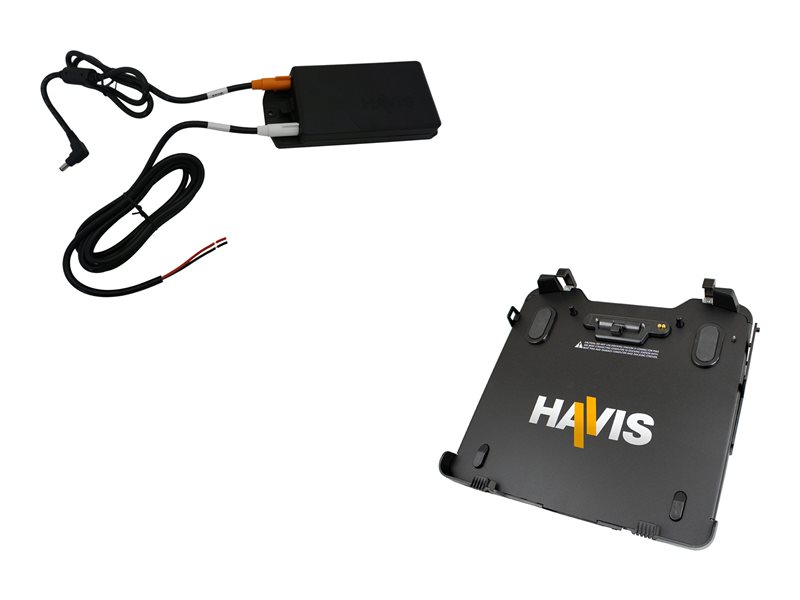

Docking station - for notebook - VGA, HDMI - 10Mb LAN
| Main Specifications | |
|---|---|
| Product Description | Havis - docking station - VGA, HDMI - 10Mb LAN |
| Product Type | Docking station - for notebook |
| Video Interfaces | VGA, HDMI |
| Dimensions (WxDxH) | 12.5 in x 2.7 in x 11.7 in |
| Weight | 0.09 oz |
| Networking | Ethernet |
| Power | Power supply |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | Docking station - for notebook |
| Width | 12.5 in |
| Depth | 2.7 in |
| Height | 11.7 in |
| Weight | 0.09 oz |
| Expansion / Connectivity | |
| Interfaces | 4 x USB 2.0 - 4 pin USB Type A ¦ 2 x USB-A 3.0 - 9 pin USB Type A ¦ 2 x network - Ethernet - RJ-45 ¦ 1 x serial - 9 pin D-Sub (DB-9) ¦ 1 x audio / video - HDMI - 19 pin HDMI Type A ¦ 1 x display / video - VGA - 15 pin HD D-Sub (HD-15) ¦ 2 x RF (pass through) - TNC |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Features | Retractable connector, lightweight, compact, integrated cable management, rounded edges, keyed lock |
| Compliant Standards | MIL-STD 810H 514.8, SAE J1455 |
| Networking | |
| Data Link Protocol | Ethernet |
| Power | |
| Power Device | Power supply |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 122 °F |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 7.01 lbs |
