Switch - managed - 48 x 1/10/25 Gigabit SFP28 + 2 x 1 Gigabit / 10 Gigabit SFP+ + 8 x 40/100 Gigabit QSFP28 - back to front airflow - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | Fortinet FortiSwitch 2048F-B2F - switch - 48 ports - managed - rack-mountable |
| Device Type | Switch - 48 ports - managed - stackable |

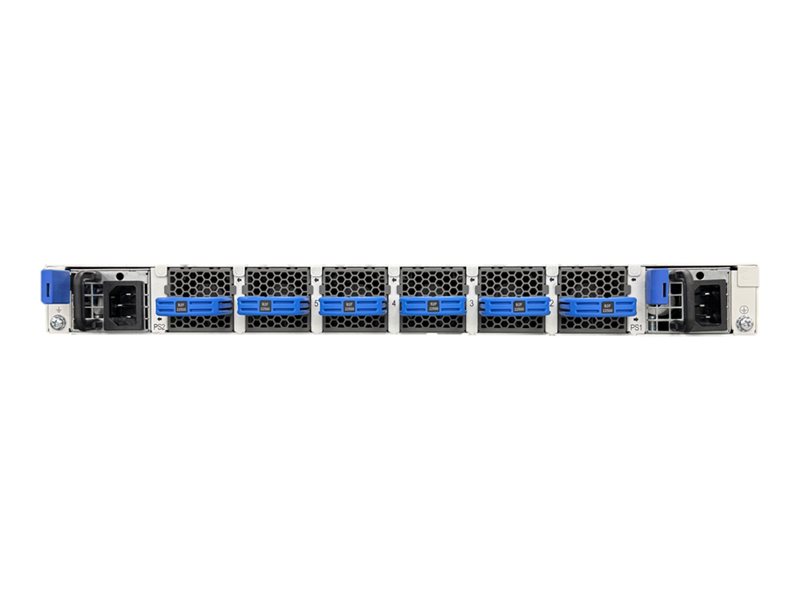

| Enclosure Type | Back to front airflow rack-mountable 1U |
| Subtype | 100 Gigabit Ethernet |
| Ports | 48 x 1/10/25 Gigabit SFP28 + 2 x 1 Gigabit / 10 Gigabit SFP+ + 8 x 40/100 Gigabit QSFP28 |
| Performance | Switching capacity: 4000 Gbps ¦ Switching capacity (64-byte packet size): 4000 Mpps ¦ Packets per second: 1310 Mpps ¦ Latency: < 1 µs ¦ Packet buffer size: 32 MB |
| Capacity | ACL entries: 3000 ¦ Host entries: 16000 ¦ MAC addresses: 144000 ¦ VLANs supported: 4000 ¦ Maximum aggregation groups: 48 ¦ Queues per port: 8 ¦ Multicast routes: 8000 ¦ IPv4 routes: 16000 ¦ IPv6 routes: 8000 |
| MAC Address Table Size | 128K entries |
| Jumbo Frame Support | Yes |
| Routing Protocol | OSPF, RIP, VRRP, static IP routing, BGP, PIM-SSM, VXLAN, IS-IS |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, CLI, RMON, RMON 1, SNMP, MIB |
| Features | ACL support, BFD, DHCP relay, DHCP server, DHCP snooping, DAI, ECMP, IGMP proxy, IGMP querier, IGMP snooping, Ingress ACL, IPv6 support, LLDP Neighbor Discovery, LLDP support, LLDP-MED, MAB, MACsec support, MLD proxy, MLD querier, MLD snooping, policy based routing, static routing, URPF, VXLAN, VRF, High Availability, IP source guard, IP-MAC binding, load balancing, port mirroring, RA guard, RADIUS support, sFlow, sticky MAC, WOL, ECN, MLAG, dynamic packet capture, SNTP support, ALERT notification, ERSPAN, RSPAN, SPAN mode, Syslog support |
| Compliant Standards | IEEE 802.3, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1AX, IEEE 802.1Qbb |
| Power | AC 100-240 V (50 - 60 Hz) |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.3 in x 18.1 in x 1.7 in |
| Weight | 21.78 lbs |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 48 ports - managed - stackable |
| Enclosure Type | Back to front airflow rack-mountable 1U |
| Subtype | 100 Gigabit Ethernet |
| Ports | 48 x 1/10/25 Gigabit SFP28 + 2 x 1 Gigabit / 10 Gigabit SFP+ + 8 x 40/100 Gigabit QSFP28 |
| Performance | Switching capacity: 4000 Gbps ¦ Switching capacity (64-byte packet size): 4000 Mpps ¦ Packets per second: 1310 Mpps ¦ Latency: < 1 µs ¦ Packet buffer size: 32 MB |
| Capacity | ACL entries: 3000 ¦ Host entries: 16000 ¦ MAC addresses: 144000 ¦ VLANs supported: 4000 ¦ Maximum aggregation groups: 48 ¦ Queues per port: 8 ¦ Multicast routes: 8000 ¦ IPv4 routes: 16000 ¦ IPv6 routes: 8000 |
| MAC Address Table Size | 128K entries |
| Jumbo Frame Support | Yes |
| Routing Protocol | OSPF, RIP, VRRP, static IP routing, BGP, PIM-SSM, VXLAN, IS-IS |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, CLI, RMON, RMON 1, SNMP, MIB |
| Authentication Method | Secure Shell (SSH), RADIUS |
| Features | ACL support, BFD, DHCP relay, DHCP server, DHCP snooping, DAI, ECMP, IGMP proxy, IGMP querier, IGMP snooping, Ingress ACL, IPv6 support, LLDP Neighbor Discovery, LLDP support, LLDP-MED, MAB, MACsec support, MLD proxy, MLD querier, MLD snooping, policy based routing, static routing, URPF, VXLAN, VRF, High Availability, IP source guard, IP-MAC binding, load balancing, port mirroring, RA guard, RADIUS support, sFlow, sticky MAC, WOL, ECN, MLAG, dynamic packet capture, SNTP support, ALERT notification, ERSPAN, RSPAN, SPAN mode, Syslog support |
| Compliant Standards | IEEE 802.3, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1AX, IEEE 802.1Qbb |
| RAM | 8 GB DDR4 SDRAM |
| Flash Memory | 8 GB |
| Expansion / Connectivity | |
| Interfaces | 48 x 1/10/25GBase-X SFP28 ¦ 2 x 1/10GBase-X SFP+ ¦ 8 x 40/100GBase-X QSFP28 ¦ 1 x 1000Base-T RJ-45 management ¦ 1 x console RJ-45 management |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| MTBF | >10 years |
| Compliant Standards | BSMI, CB, FCC, RCM, RoHS2, UL, VCCI |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
| Min Storage Temperature | -13 °F |
| Max Storage Temperature | 158 °F |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 18.1 in |
| Height | 1.7 in |
| Weight | 21.78 lbs |
