Switch - L3 - managed - 48 x 1 Gigabit / 10 Gigabit SFP+ + 6 x 40/100 Gigabit QSFP+ / QSFP28 - front to back airflow - rack-mountable
| Main Specifications | |
|---|---|

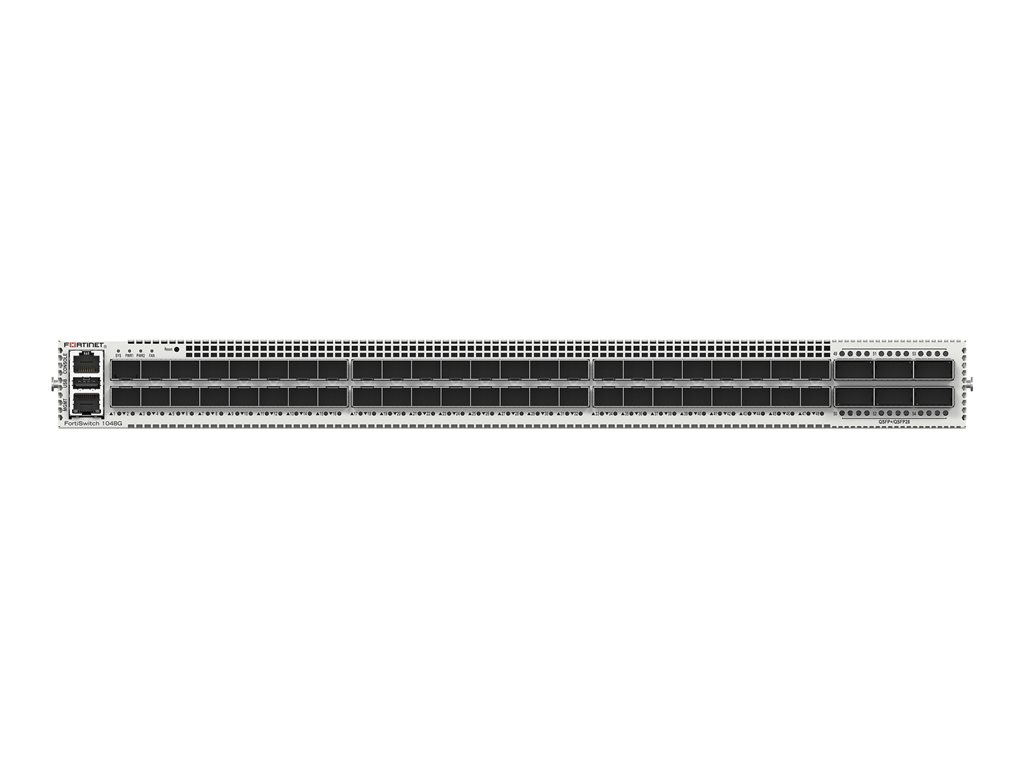

| Product Description | Fortinet FortiSwitch 1048G - switch - 48 ports - managed - rack-mountable |
| Device Type | Switch - 48 ports - L3 - managed - stackable |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Subtype | 100 Gigabit Ethernet |
| Ports | 48 x 1 Gigabit / 10 Gigabit SFP+ + 6 x 40/100 Gigabit QSFP+ / QSFP28 |
| Performance | Switching capacity (full duplex): 2160 Gbps ¦ Packets per second: 2000 Mpps ¦ Latency: < 1 µs |
| Capacity | Spanning Tree Protocol instances: 64 ¦ Layer 3 IP interfaces (Ipv4): 16000 ¦ Layer 3 IP interfaces (Ipv6): 8000 ¦ Multicast routes: 16000 ¦ IPv4 routes: 16000 ¦ IPv6 routes: 8000 ¦ ACL entries: 3000 ¦ VLANs supported: 4000 ¦ Link aggregation groups: up to 48 ¦ Queues per port: 8 ¦ Packet buffer size: 32 MB |
| MAC Address Table Size | 32K entries |
| Jumbo Frame Support | Yes |
| Routing Protocol | OSPF, RIP, RIP-2, VRRP, static IP routing, BGP, IS-IS, PIM-SSM, OSPFv3 |
| Remote Management Protocol | IPv4, IPv6, MLD, HTTP, HTTPS, RMON 1, SNMP 1, SNMP 2c, SNMP 3, SFTP, TFTP, Telnet, MIB, MIB 2 |
| Features | Automatic topology detection, auto-negotiation, Loop Guard, Private VLAN, RPVST, Storm Control, STP BPDU Guard, STP Root Guard, VLAN mapping, VLAN support, BFD, DHCP relay, DHCP server, IGMP proxy, IGMP snooping, policy based routing, VXLAN, VRF, ACL support, DHCP snooping, DAI, NetFlow, IPFIX, LLDP support, LLDP-MED, IP-MAC binding, port mirroring, sFlow, sticky MAC, WOL, MLAG, QoS, SNTP support, FTP support, IP multicast, MACsec support |
| Compliant Standards | IEEE 802.1ad, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qbb, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3by, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 1588 PTP |
| Power | AC 100-240 V (50 - 60 Hz) |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 6.8 in x 7.1 in x 0.7 in |
| Weight | 20.06 lbs |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 48 ports - L3 - managed - stackable |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Subtype | 100 Gigabit Ethernet |
| Ports | 48 x 1 Gigabit / 10 Gigabit SFP+ + 6 x 40/100 Gigabit QSFP+ / QSFP28 |
| Performance | Switching capacity (full duplex): 2160 Gbps ¦ Packets per second: 2000 Mpps ¦ Latency: < 1 µs |
| Capacity | Spanning Tree Protocol instances: 64 ¦ Layer 3 IP interfaces (Ipv4): 16000 ¦ Layer 3 IP interfaces (Ipv6): 8000 ¦ Multicast routes: 16000 ¦ IPv4 routes: 16000 ¦ IPv6 routes: 8000 ¦ ACL entries: 3000 ¦ VLANs supported: 4000 ¦ Link aggregation groups: up to 48 ¦ Queues per port: 8 ¦ Packet buffer size: 32 MB |
| MAC Address Table Size | 32K entries |
| Jumbo Frame Support | Yes |
| Routing Protocol | OSPF, RIP, RIP-2, VRRP, static IP routing, BGP, IS-IS, PIM-SSM, OSPFv3 |
| Remote Management Protocol | IPv4, IPv6, MLD, HTTP, HTTPS, RMON 1, SNMP 1, SNMP 2c, SNMP 3, SFTP, TFTP, Telnet, MIB, MIB 2 |
| Encryption Algorithm | MD5 |
| Authentication Method | RADIUS, Secure Shell (SSH) |
| Features | Automatic topology detection, auto-negotiation, Loop Guard, Private VLAN, RPVST, Storm Control, STP BPDU Guard, STP Root Guard, VLAN mapping, VLAN support, BFD, DHCP relay, DHCP server, IGMP proxy, IGMP snooping, policy based routing, VXLAN, VRF, ACL support, DHCP snooping, DAI, NetFlow, IPFIX, LLDP support, LLDP-MED, IP-MAC binding, port mirroring, sFlow, sticky MAC, WOL, MLAG, QoS, SNTP support, FTP support, IP multicast, MACsec support |
| Compliant Standards | IEEE 802.1ad, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qbb, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3by, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 1588 PTP |
| RAM | 8 GB DDR4 SDRAM |
| Flash Memory | 32 MB |
| Status Indicators | Fan, link/activity, power 1, power 2, system |
| Expansion / Connectivity | |
| Interfaces | 48 x 1/10Gbit LAN SFP+ MACsec enabled ¦ 6 x 100Gbit/40Gbit LAN QSFP28/QSFP+ MACsec enabled ¦ 1 x 1000Base-T RJ-45 service ¦ 1 x console RJ-45 management |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| MTBF | >10 years |
| Compliant Standards | FCC, BSMI, RCM, VCCI, UL, CB, RoHS2, FIPS 140-2 |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
| Min Storage Temperature | -13 °F |
| Max Storage Temperature | 158 °F |
| Dimensions & Weight | |
| Width | 6.8 in |
| Depth | 7.1 in |
| Height | 0.7 in |
| Weight | 20.06 lbs |
