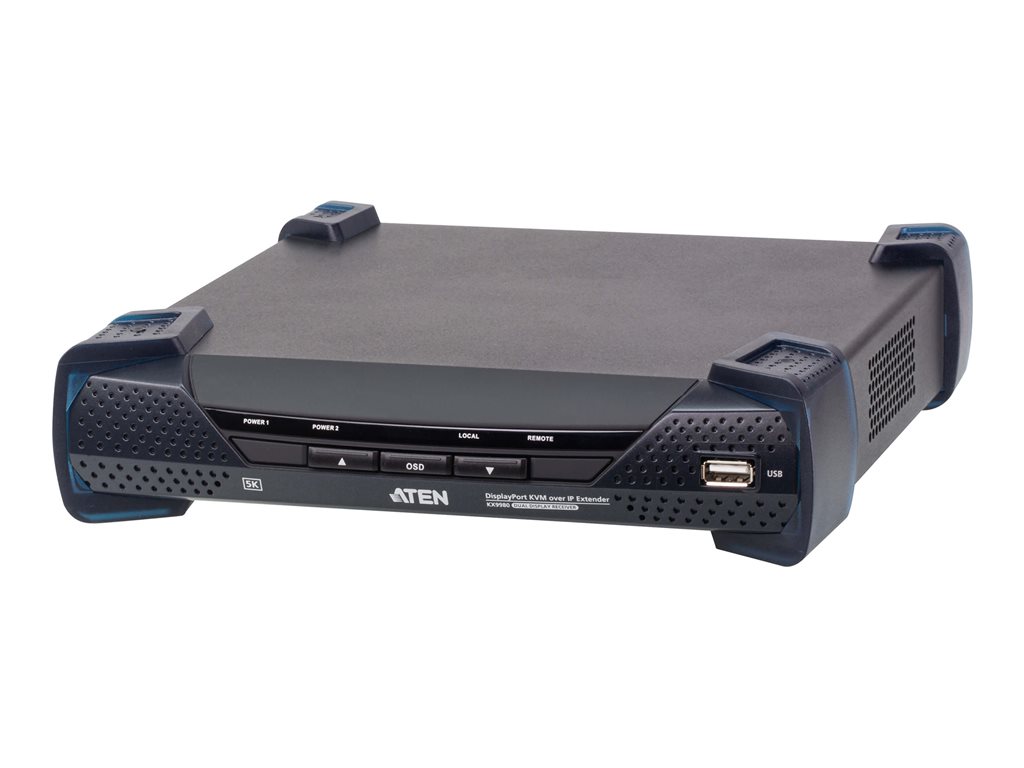

KVM / video / audio switch - 2 x KVM / video / audio - 1 local user - 2 IP users - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | ATEN KX9980R - KVM / video / audio switch - 2 ports - rack-mountable |
| Device Type | KVM / video / audio switch - 2 ports |
| Enclosure Type | Rack-mountable 0U |
| Subtype | HDMI / DisplayPort / USB |
| Ports | 2 x KVM / video / audio |
| KVM Users Qty | 1 local user, 2 IP users |
| Features | Dual display support, zero latency, 12-bit Deep Color support, isochronous channel support, Adobe RGB support, boundless switching, advanced scheduling, virtual transmitter |
| Power | DC 12 V |
| Dimensions (WxDxH) | 8.8 in x 8.9 in x 2.1 in |
| Weight | 3.73 lbs |
| General | |
| Device Type | KVM / video / audio switch - 2 ports |
| Enclosure Type | Rack-mountable 0U |
| Subtype | HDMI / DisplayPort / USB |
| Ports | 2 x KVM / video / audio |
| KVM Local Users Qty | 1 local user |
| KVM IP Users Qty | 2 IP users |
| Keyboard / Mouse Interface | USB |
| Encryption Algorithm | 256-bit AES |
| Authentication Method | RADIUS, TACACS+, LDAP |
| Max Resolution | 5120 x 2880 @ 60 Hz |
| Features | Dual display support, zero latency, 12-bit Deep Color support, isochronous channel support, Adobe RGB support, boundless switching, advanced scheduling, virtual transmitter |
| Status Indicators | Remote, local, power |
| Expansion / Connectivity | |
| Interfaces | 3 x USB Type A console ¦ 2 x DisplayPort console ¦ 1 x audio / headphones mini-jack console ¦ 1 x audio / microphone mini-jack console ¦ 1 x RS232 DB-9 console ¦ 2 x USB Type A ¦ 2 x DisplayPort ¦ 2 x audio mini-jack ¦ 1 x USB Type B ¦ 1 x LAN RJ-45 ¦ 2 x LAN SFP+ |
| Power | |
| Power Device | External power adapter |
| Voltage Required | DC 12 V |
| Power Consumption Operational | 33 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 95% RH (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 140 °F |
| Dimensions & Weight | |
| Width | 8.8 in |
| Depth | 8.9 in |
| Height | 2.1 in |
| Weight | 3.73 lbs |
