65" Diagonal Class OLED display - broadcast / virtual production - webOS - 4K UHD (2160p) 3840 x 2160 - silver
| Main Specifications | |
|---|---|
| Product Description | LG UltraFine 65EP5Q-B 65" OLED display - 4K - for broadcast / virtual production |
| Product Type | OLED flat panel display |
| Energy Label QR Code URL | Https://eprel.ec.europa.eu/qr/2374138 |
| Diagonal Class | 65" |
| Commercial Use | Yes - broadcast / virtual production |
| Color | Silver |
| Platform | webOS |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Frame Rate & Enhancement Technology | 120 Hz Refresh Rate |
| Video Interface | HDMI |
| HDMI Ports Qty | 1 ports |
| Connectivity | LAN, Bluetooth, Wi-Fi |
| PC Interface | SDI |
| Image Aspect Ratio | 16:9 |
| TV Tuner | No tuner |
| Commercial Features | ISM Method, No Signal image, Local Key Operation |
| Picture Enhancements | 99.5% DCI-P3 color gamut |
| Speaker System | 2 speakers |
| Storage Capacity | 16 GB |
| USB | Yes |
| Included Accessories | Remote control |
| Voltage | AC 100-240 V (50/60 Hz) |
| Energy Class | Class G |
| Power Consumption Operational | 120 Watt |
| Dimensions (WxDxH) - without stand | 56.7 in x 1 in x 32.5 in |
| Weight | 48.5 lbs |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | OLED flat panel display |
| Energy Label QR Code URL | Https://eprel.ec.europa.eu/qr/2374138 |
| Energy Class | Class G |
| Energy Class (HDR) | Class G |
| Power Consumption (Max) | 450 Watt |
| Power Consumption Operational | 120 Watt |
| Power Consumption SDR (On mode) | 108 kWh/1000h |
| Power Consumption HDR (On mode) | 112 kWh/1000h |
| Diagonal Class | 65" |
| Commercial Use | Yes - broadcast / virtual production |
| Platform | webOS |
| Operating System | webOS 8.5 |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Sensors | Temperature sensor |
| Video Interface | HDMI |
| HDMI Ports Qty | 1 ports |
| PC Interface | SDI |
| Modes | Landscape mode |
| Picture Enhancements | 99.5% DCI-P3 color gamut |
| Dimensions | Without stand |
| Width | 56.7 in |
| Depth | 1 in |
| Height | 32.5 in |
| Weight | 48.5 lbs |
| Enclosure Color | Silver |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | HDCP 2.2, FCC |
| Power | |
| Power Device | Power supply |
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption (Off Mode) | 0.5 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 80% |
| Display | |
| Color Support | 1070000000 colors |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Image Aspect Ratio | 16:9 |
| Frame Rate & Enhancement Technology | 120 Hz Refresh Rate |
| Image Contrast Ratio | 3300000:1 |
| Brightness | 330 cd/m² |
| Viewing Angle | 178° |
| Viewing Angle (Vertical) | 178° |
| Response Time | 0.1 ms |
| Backlight Life | 30.000 hour(s) |
| Commercial Features | ISM Method, No Signal image, Local Key Operation |
| Operation Hours / Days | 12 / 7 |
| Additional Features | Picture by picture (no tuner), Image Sticking Minimization (ISM), picture in picture (no tuner), 10-bit support |
| Connections | |

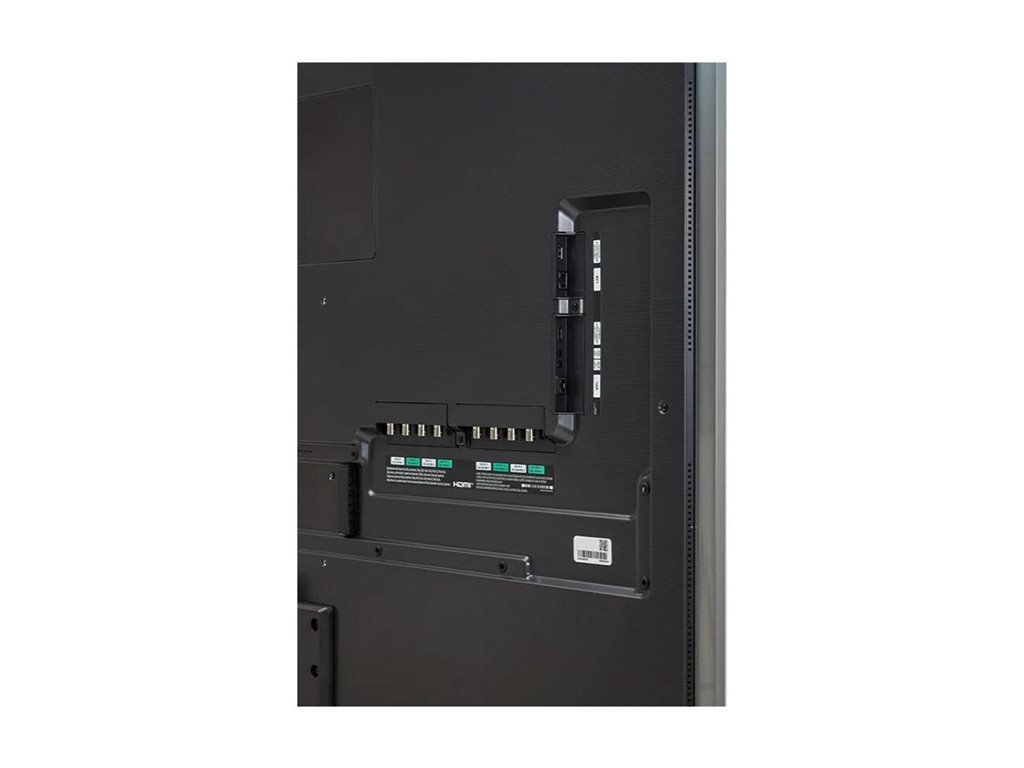

| Connector Type | HDMI ¦ RS-232C input ¦ LAN ¦ USB 2.0 ¦ 4 x SDI input ¦ 4 x SDI output |
| Remote Control | |
| Type | Remote control |
| Audio System | |
| Speaker System | 2 speakers |
| Output Power / Total | 30 Watt |
| Speakers | 2 x speaker - 15 Watt |
| Dimensions & Weight (Shipping) | |
| Width (Shipping) | 63 in |
| Depth (Shipping) | 6.8 in |
| Height (Shipping) | 38.2 in |
| Weight (Shipping) | 75.18 lbs |
| Network & Internet Multimedia | |
| Connectivity | LAN, Bluetooth, Wi-Fi |
| LAN Protocol | Ethernet |
| Dimensions & Weight Details | |
| Dimensions & Weight Details | Panel without stand - 56.7 in x 1 in x 32.5 in x 48.5 lbs ¦ Panel with stand - 56.7 in x 10.4 in x 35.8 in x 60.2 lbs |
| Stands & Mounts | |
| Flat Panel Mount Interface | 300 x 300 mm |
| VESA Compatibility | Yes |
| Media Player | |
| USB Port | Yes |
| USB Ports Qty | 1 |
| Configuration | 16 GB |
