43" Diagonal Class UP5Q-E Series LED-backlit LCD display - digital signage with Integrated Pro:Idiom - webOS - 4K UHD (2160p) 3840 x 2160 - Edge LED - black
| Main Specifications | |
|---|---|
| Product Description | LG 43UP5Q-E UP5Q-E Series - 43" with Integrated Pro:Idiom LED-backlit LCD display - 4K - for digital signage |
| Product Type | LED-backlit LCD flat panel display with Integrated Pro:Idiom |
| Energy Label QR Code URL | Https://eprel.ec.europa.eu/qr/2263887 |
| EU Data Act | Https://www.lg.com/uk/privacy/ |
| Diagonal Class | 43" |
| Commercial Use | Yes - digital signage |
| Color | Black |
| Platform | webOS |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
| Video Interface | HDMI |
| HDMI Ports Qty | 3 ports |
| Connectivity | Wi-Fi, LAN |
| PC Interface | DisplayPort |
| Technology | ADS |
| LCD Backlight Technology | LED backlight - Edge LED |
| Image Aspect Ratio | 16:9 |
| TV Tuner | No tuner |
| Commercial Features | Play via URL, FailOver, SuperSign CMS compatible, SuperSign Control+ compatible, SuperSign WB compatible, SuperSign Cloud, Mobile CMS, LG ConnectedCare, Local Key Operation, Control Manager, SI Server Setting, Auto Set ID, ISM Method, Group Manager, booting logo image, Network Ready, Real Time Communication (webRTC), Video Tag, Local Network Sync, No Signal image, SNMP support, Local Contents Scheduling, conformal coating, 30-degrees tilting installation |
| Settings Cloning Capability | Yes |
| Picture Enhancements | 95% BT.709 color gamut |
| Speaker System | 2 speakers |
| Storage Capacity | 32 GB |
| USB | 4 ports |
| Included Accessories | Remote control |
| Voltage | AC 100-240 V (50/60 Hz) |
| Energy Class | Class G |
| Power Consumption Operational | 69 watt |
| Power Consumption Stand by | 0.5 watt |
| Dimensions (WxDxH) | 37.9 in x 1.2 in x 21.9 in |
| Weight | 24.47 lbs |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | LED-backlit LCD flat panel display with Integrated Pro:Idiom |
| Energy Label QR Code URL | Https://eprel.ec.europa.eu/qr/2263887 |
| Energy Class | Class G |
| EU Data Act | Https://www.lg.com/uk/privacy/ |
| Power Consumption (Max) | 127 watt |
| Power Consumption Operational | 69 watt |
| Power Consumption SDR (On mode) | 69 kWh/1000h |
| Diagonal Class | 43" |
| Commercial Use | Yes - digital signage |
| Series | UP5Q-E Series |
| Platform | webOS |
| Operating System | webOS 8.0 |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Sensors | Temperature sensor, auto brightness sensor, acceleration sensor |
| Video Interface | HDMI |
| HDMI Ports Qty | 3 ports |
| PC Interface | DisplayPort |
| Modes | Portrait mode, landscape mode, Tiling Mode (15 x 15), PM mode |
| Picture Enhancements | 95% BT.709 color gamut |
| Cooling System | Fanless |
| Width | 37.9 in |
| Depth | 1.2 in |
| Height | 21.9 in |
| Weight | 24.47 lbs |
| Enclosure Color | Black |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | FCC, EMC Class B, IP5X, CEC, Plug and Play |
| Power | |
| Power Device | Power supply |
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption Stand by | 0.5 watt |
| Power Consumption (Off Mode) | 0.5 watt |
| Heat Generation Details | Cabinet - typical - 235 BTU/h ¦ Cabinet - max - 433 BTU/h |
| Features | Smart energy saving, WOL (Wake on LAN) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 80% |
| Display | |
| LCD Display Technology | ADS |
| Color Support | 1070000000 colors |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Image Aspect Ratio | 16:9 |
| Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
| LCD Backlight Technology | LED backlight - Edge LED |
| Coating | 25% haze |
| Image Contrast Ratio | 1200:1 |
| Dynamic Contrast Ratio | 1000000:1 |
| Brightness | 500 cd/m² |
| Viewing Angle | 178° |
| Viewing Angle (Vertical) | 178° |
| Response Time | 8 ms |
| Display Menu Language | Multilingual |
| Backlight Life | 50,000 hour(s) |
| Commercial Features | Play via URL, FailOver, SuperSign CMS compatible, SuperSign Control+ compatible, SuperSign WB compatible, SuperSign Cloud, Mobile CMS, LG ConnectedCare, Local Key Operation, Control Manager, SI Server Setting, Auto Set ID, ISM Method, Group Manager, booting logo image, Network Ready, Real Time Communication (webRTC), Video Tag, Local Network Sync, No Signal image, SNMP support, Local Contents Scheduling, conformal coating, 30-degrees tilting installation |
| Settings Cloning Capability | Yes |
| Operation Hours / Days | 24 / 7 |
| Additional Features | 10-bit support, Crestron Connected Compatible, BEACON technology, picture in picture (no tuner), picture by picture (no tuner), Wake On LAN |
| Connections | |

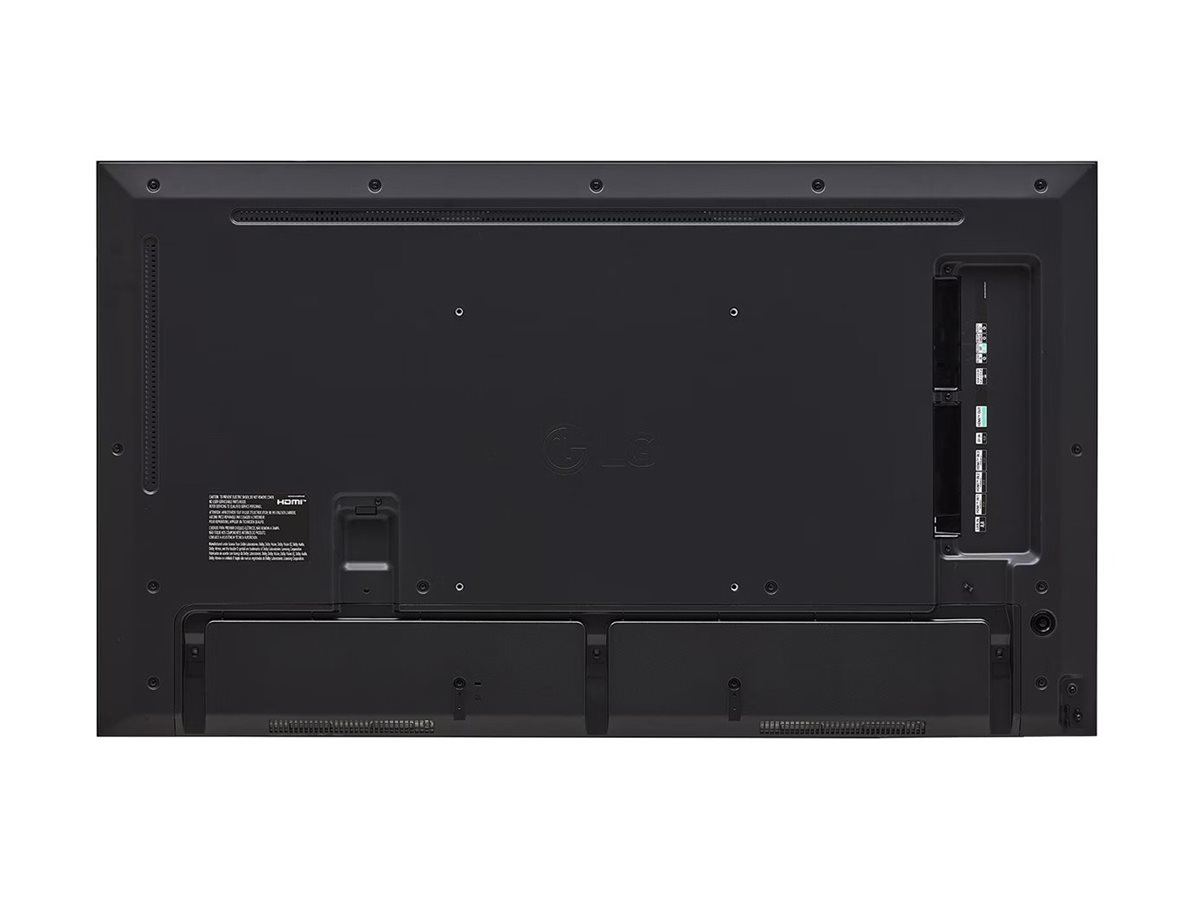

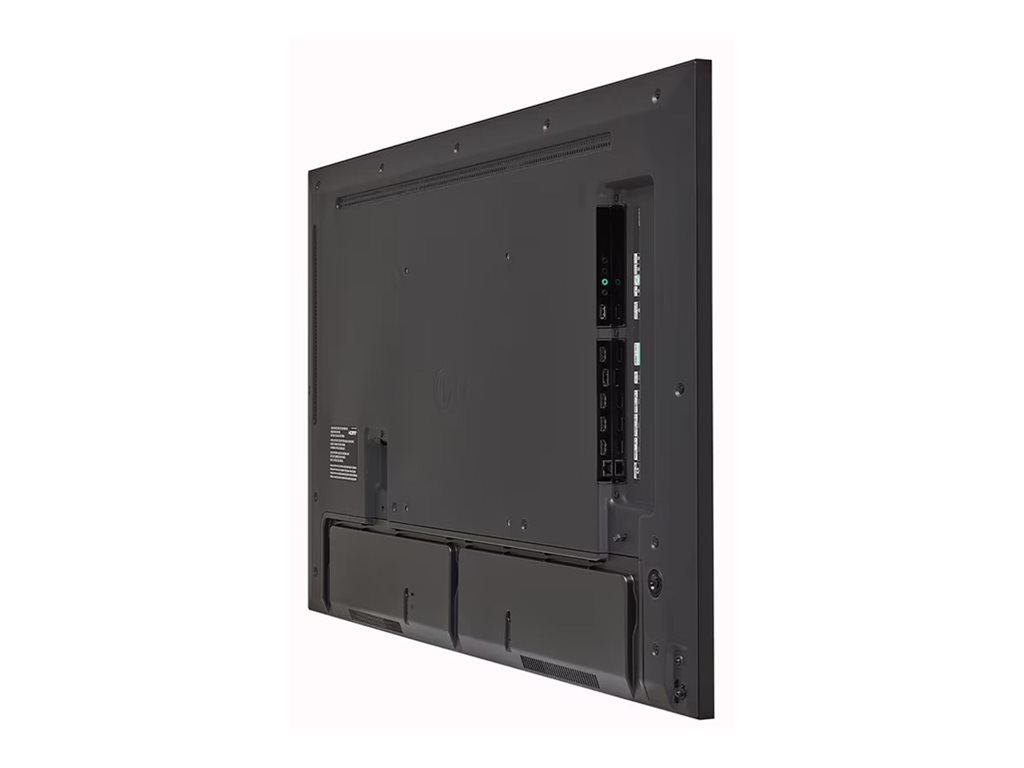

| Connector Type | 3 x HDMI input ¦ DisplayPort input ¦ RS-232C input ¦ LAN input ¦ 4 x USB 3.0 ¦ Infrared input ¦ RS-232C output ¦ Audio line-out |
| Remote Control | |
| Type | Remote control |
| Audio System | |
| Speaker System | 2 speakers |
| Output Power / Total | 20 watt |
| Speakers | 2 x main channel speaker - 10 watt |
| Dimensions & Weight (Shipping) | |
| Width (Shipping) | 41.5 in |
| Depth (Shipping) | 5.6 in |
| Height (Shipping) | 26 in |
| Weight (Shipping) | 28.22 lbs |
| Network & Internet Multimedia | |
| Connectivity | Wi-Fi, LAN |
| LAN Protocol | Ethernet |
| Connect & Share | Screen Share |
| Stands & Mounts | |
| Flat Panel Mount Interface | 200 x 200 mm |
| VESA Compatibility | Yes |
| Media Player | |
| USB Port | Yes |
| USB Ports Qty | 4 |
| Configuration | 32 GB |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
