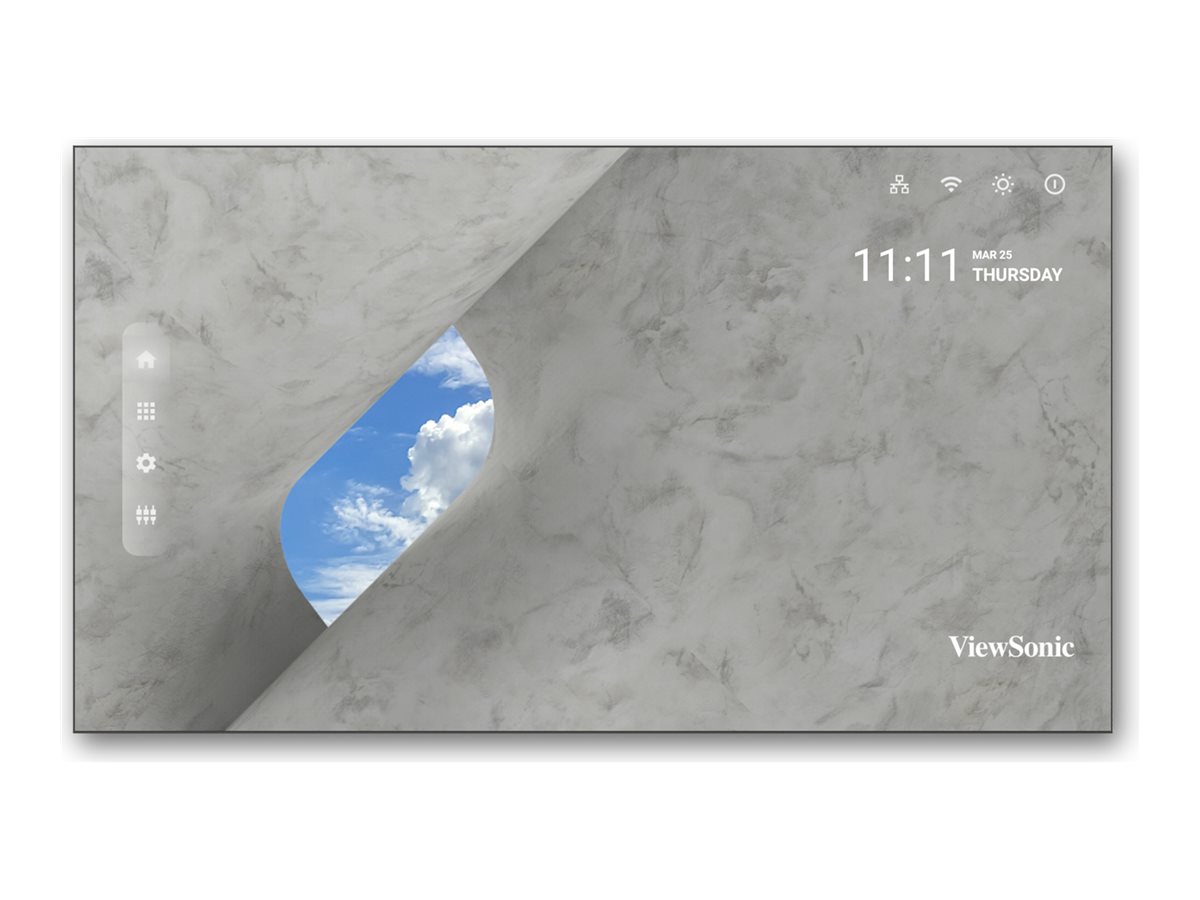

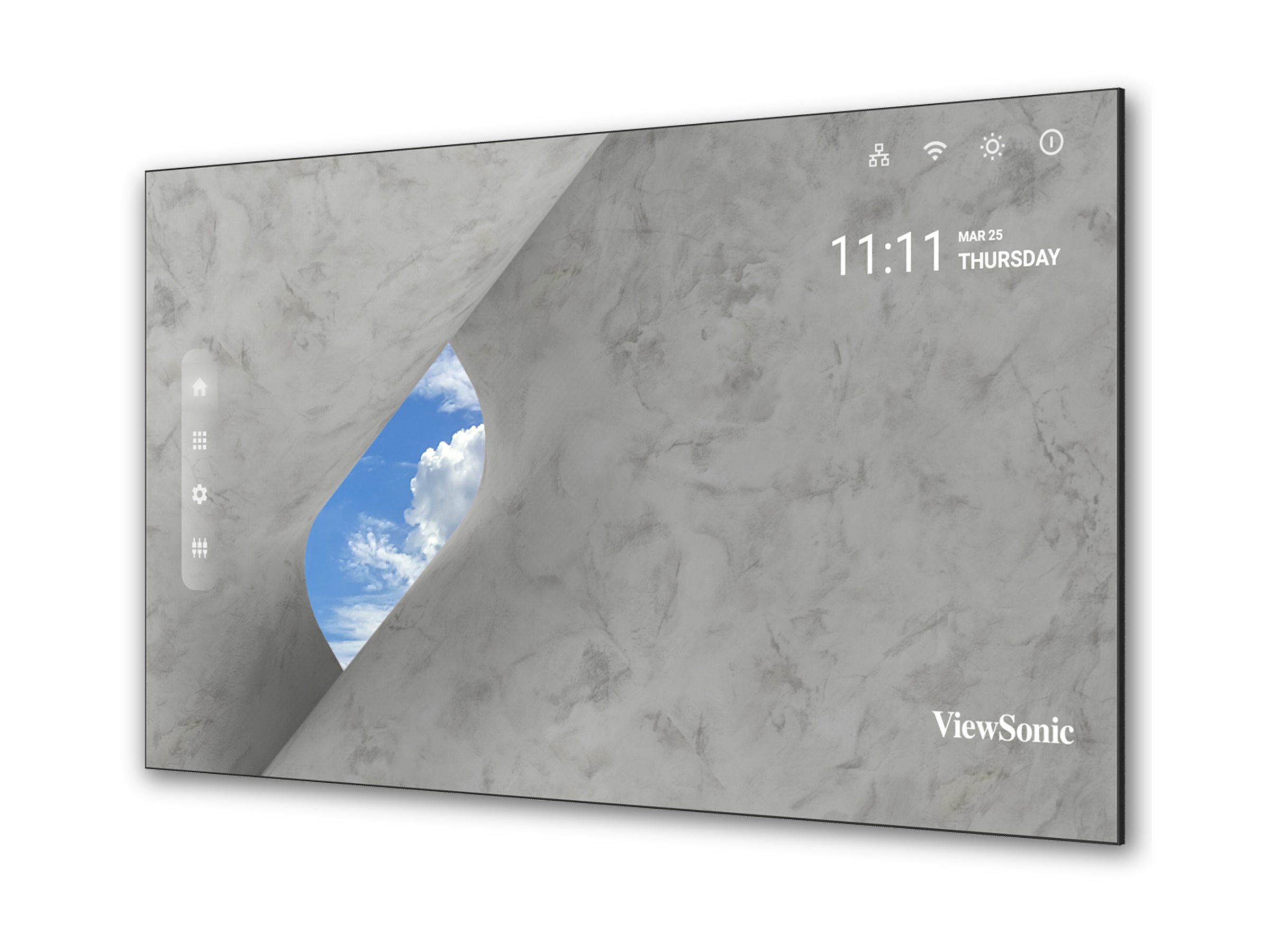

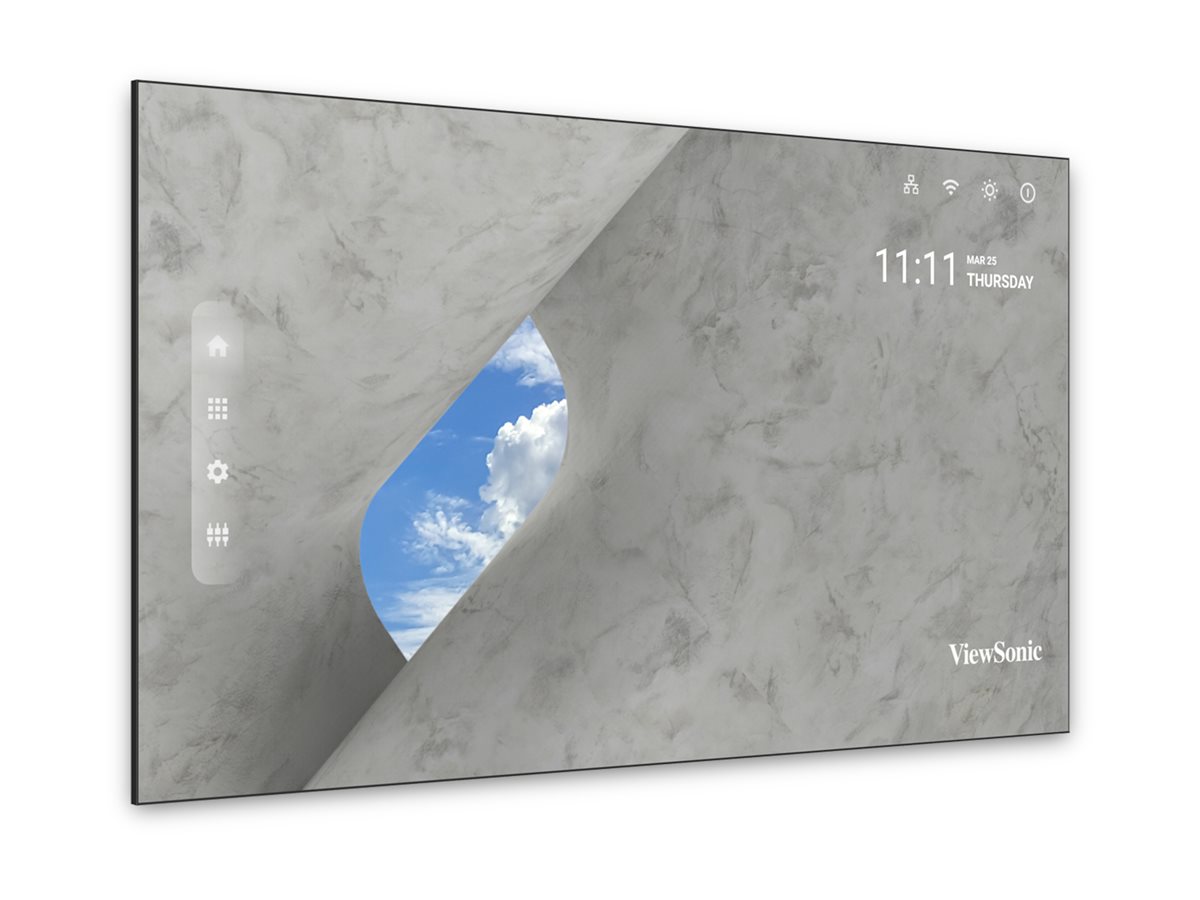

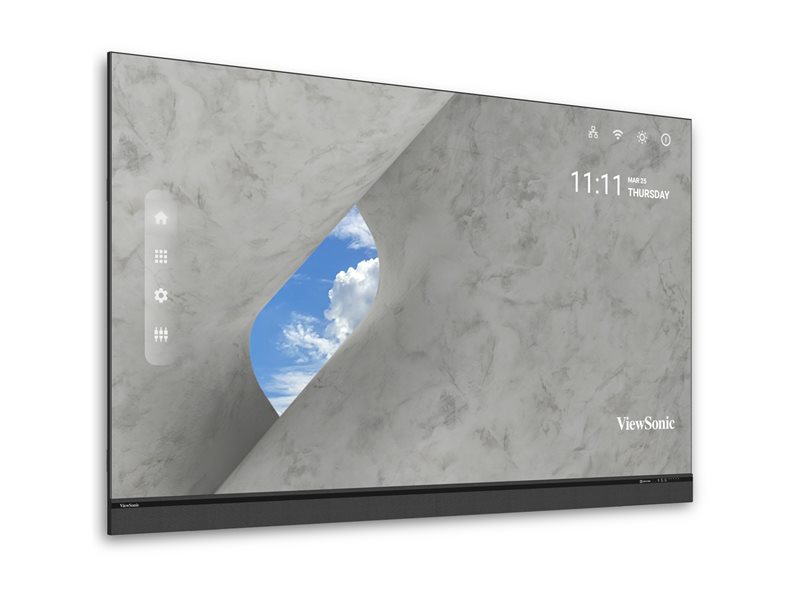

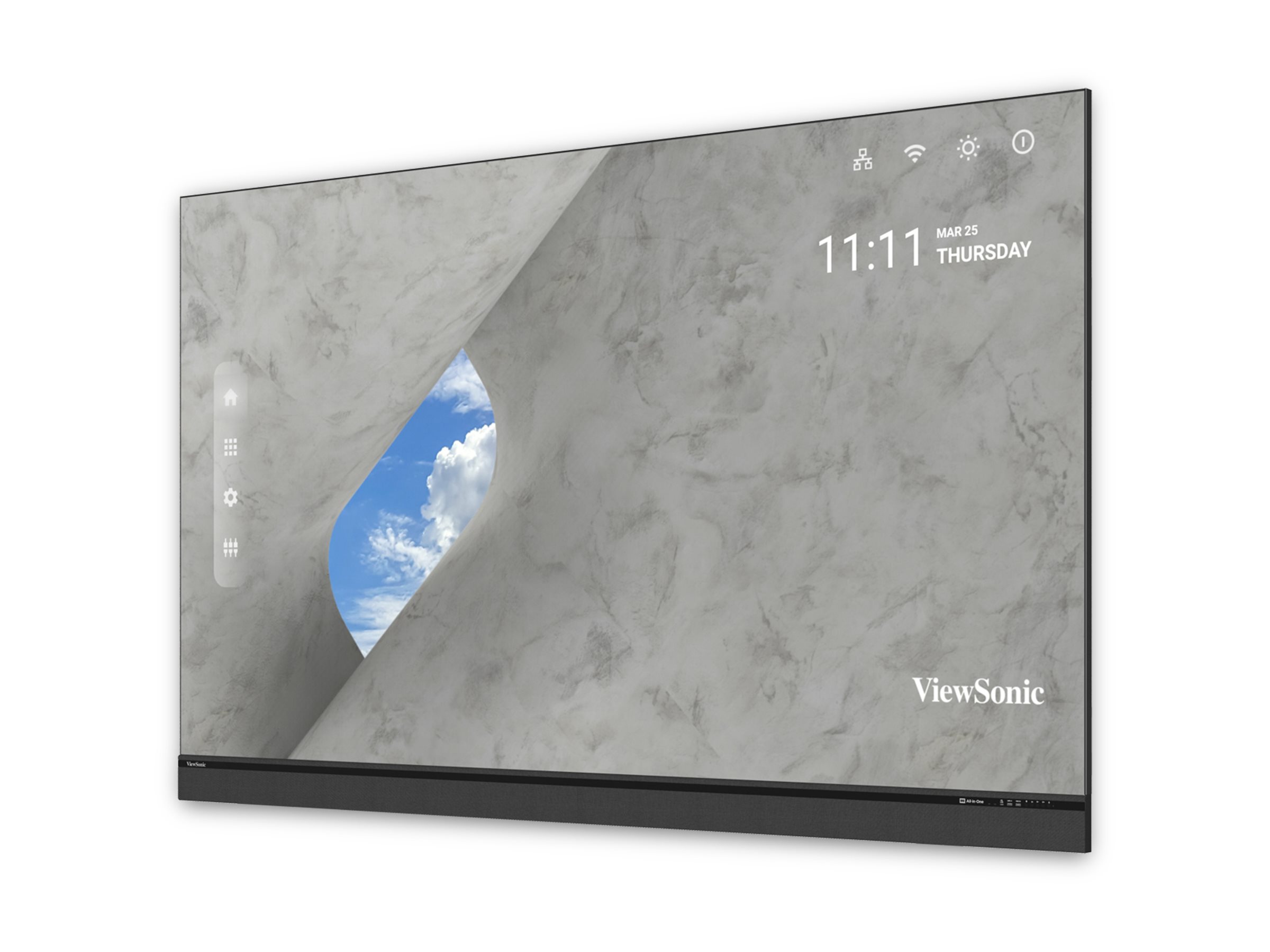

136" Diagonal Class LDP Series LED-backlit LCD display - digital signage - 4K UHD (2160p) 3840 x 2160 - Direct View LED
| Main Specifications | |
|---|---|
| Product Description | ViewSonic LDP136-071C LDP Series - 136" LED-backlit LCD display - 4K - for digital signage |
| Product Type | LED-backlit LCD flat panel display |
| Diagonal Class | 136" |
| Commercial Use | Yes - digital signage |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Frame Rate & Enhancement Technology | 3840 Hz Refresh Rate |
| Video Interface | HDMI |
| HDMI Ports Qty | 4 ports |
| Connectivity | LAN, Wi-Fi |
| LCD Backlight Technology | Direct View LED |
| Image Aspect Ratio | 16:9 |
| TV Tuner | No tuner |
| Picture Enhancements | 120% Rec.709 color gamut |
| Speaker System | 2 speakers |
| Storage Capacity | 32 GB (available 26 GB) |
| USB | Yes |
| Included Accessories | Remote control, wall mount, maintenance tool LD-MK-004, maintenance tool LD-MK-006 |
| Voltage | AC 100-120 V (50/60 Hz) |
| Power Consumption Operational | 550 Watt |
| Power Consumption Stand by | 0.5 Watt |
| Dimensions (WxDxH) | 118.6 in x 1.6 in x 72.2 in |
| Weight | 352.74 lbs |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | LED-backlit LCD flat panel display |
| Power Consumption Operational | 550 Watt |
| Diagonal Class | 136" |
| Commercial Use | Yes - digital signage |
| Series | LDP Series |
| Operating System | Android OS 9.0 |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Video Interface | HDMI |
| HDMI Ports Qty | 4 ports |
| Picture Enhancements | 120% Rec.709 color gamut |
| Design | Modular design |
| Width | 118.6 in |

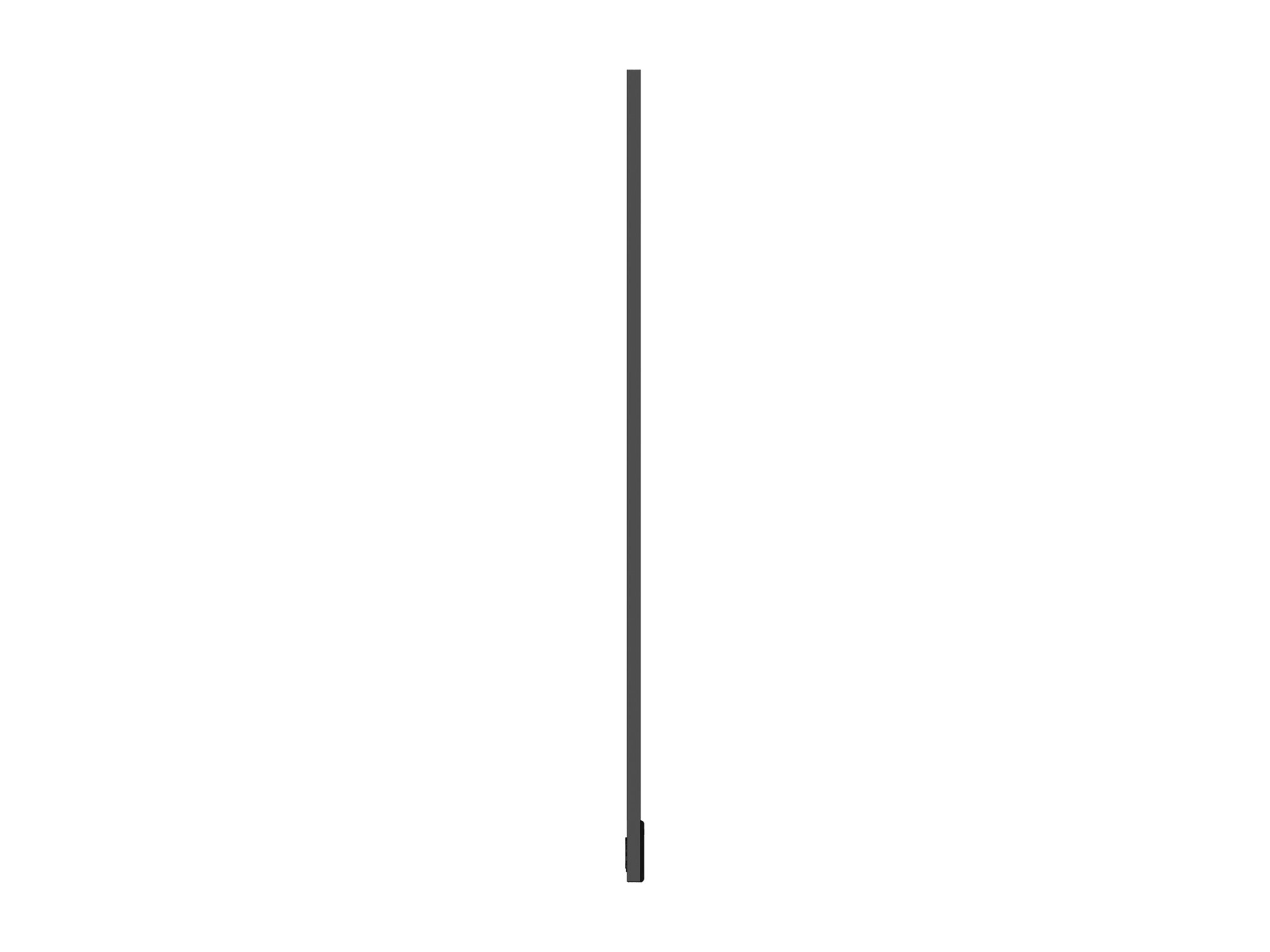

| Depth | 1.6 in |
| Height | 72.2 in |
| Weight | 352.74 lbs |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site |
| Miscellaneous | |
| Included Accessories | Wall mount, maintenance tool LD-MK-004, maintenance tool LD-MK-006 |
| Cables Included | Network cable ¦ IR extender cable |
| Compliant Standards | IP54 front, IK08 front, cTUVus, FCC, RoHS |
| Power | |
| Power Device | Power supply |
| Input Voltage | AC 100-120 V (50/60 Hz) |
| Power Consumption Stand by | 0.5 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Display | |
| Pixel Pitch | 0.78 mm |
| LED Type | Chip On Board (CoB) |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Image Aspect Ratio | 16:9 |
| Frame Rate & Enhancement Technology | 3840 Hz Refresh Rate |
| LCD Backlight Technology | Direct View LED |
| Image Contrast Ratio | 10000:1 |
| Brightness | 600 cd/m² |
| Viewing Angle | 170° |
| Viewing Angle (Vertical) | 170° |
| Backlight Life | 100,000 hours |
| Additional Features | Picture-in-picture (PIP), picture-by-picture (PBP), LAN Control, 13-bit LED grayscale, Hot-Swappable LED Modules |
| Connections | |
| Connector Type | 4 x HDMI input ¦ HDMI output ¦ USB 3.0 ¦ 2 x USB 2.0 ¦ 2 x LAN ¦ Infrared input ¦ USB-C (data only) ¦ 2 x audio line-out ¦ RS-232 ¦ LAN ¦ SPDIF output |
| Remote Control | |
| Type | Remote control |
| Audio System | |
| Speaker System | 2 speakers |
| Output Power / Total | 60 Watt |
| Speakers | 2 x speaker - 30 Watt |
| Dimensions & Weight (Shipping) | |
| Width (Shipping) | 78 in |
| Depth (Shipping) | 48 in |
| Height (Shipping) | 40.2 in |
| Weight (Shipping) | 599.65 lbs |
| Network & Internet Multimedia | |
| Connectivity | LAN, Wi-Fi |
| Dimensions & Weight Details | |
| Dimensions & Weight Details | Panel - 118.6 in x 1.6 in x 72.2 in x 352.7 lbs ¦ Panel with mount - 118.6 in x 2.4 in x 72.2 in |
| Stands & Mounts | |

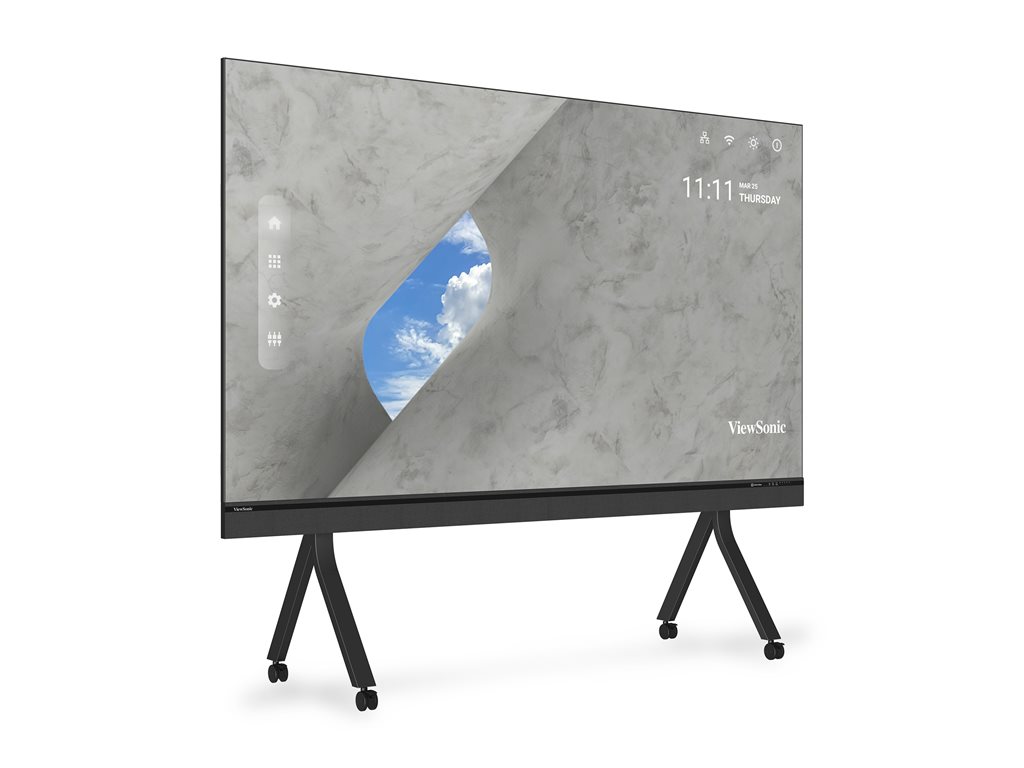

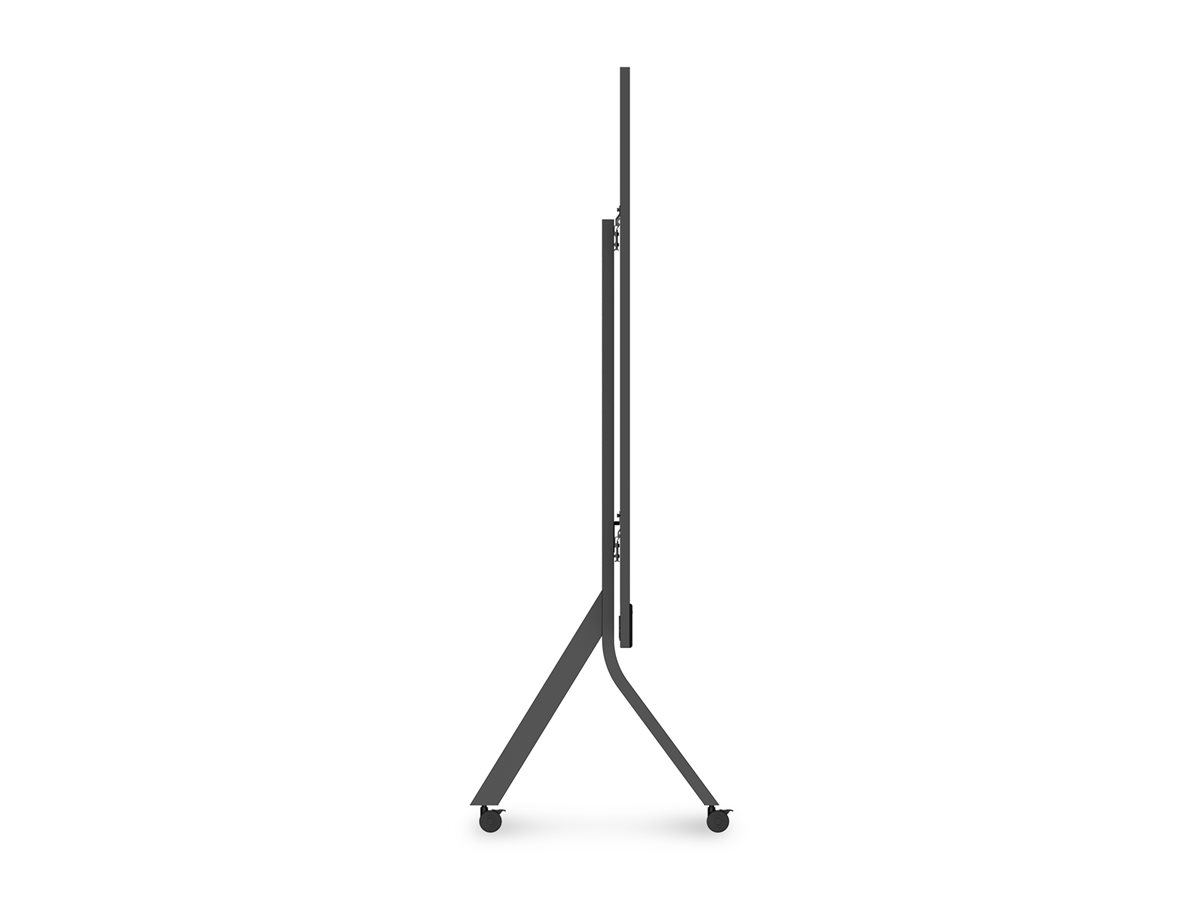

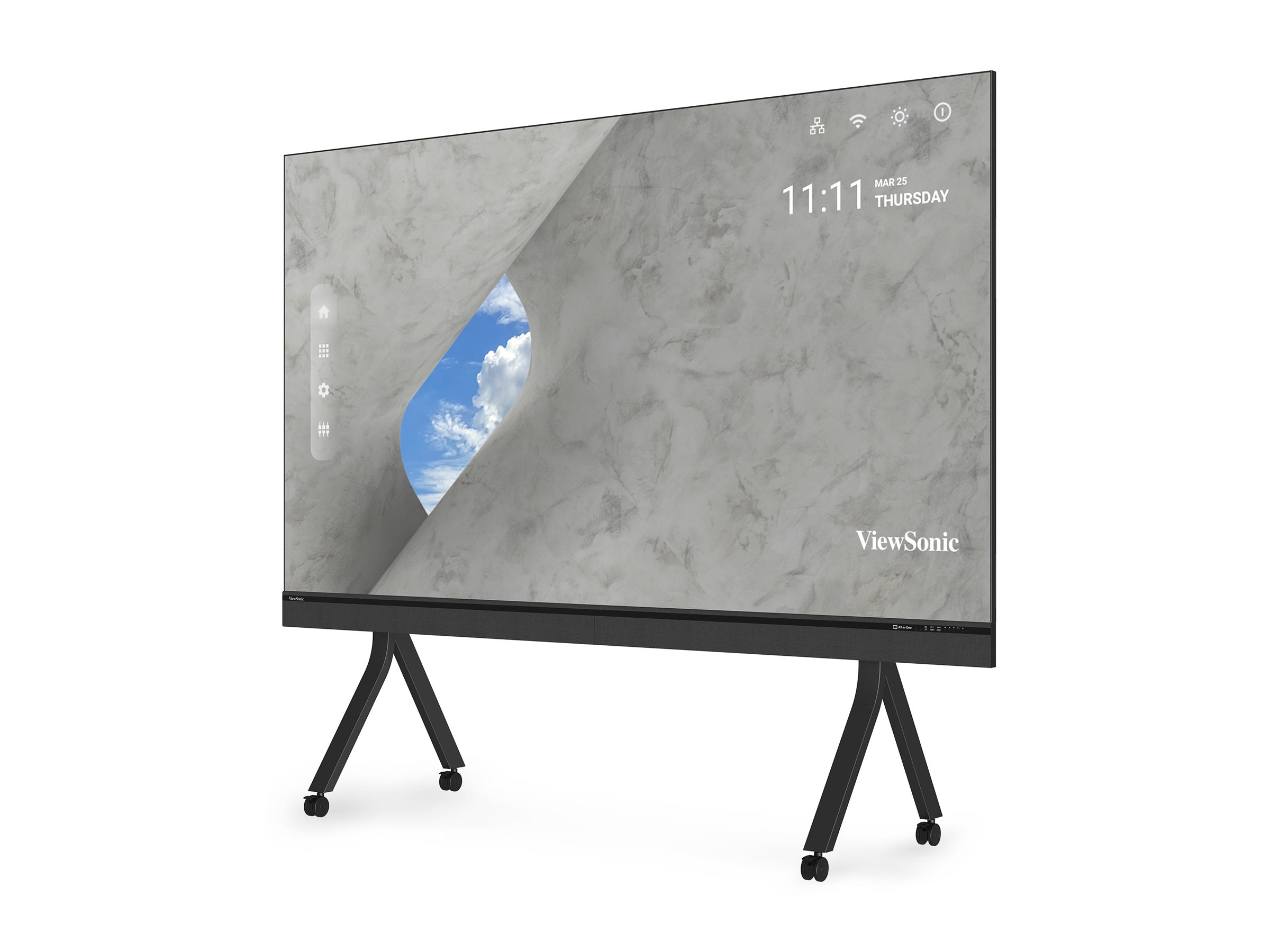

| Stand | Optional |
| Media Player | |
| USB Port | Yes |
| Configuration | Rockchip RK3399 - 4 GB - 32 GB (available 26 GB) - ARM Mali-T860MP4 |
