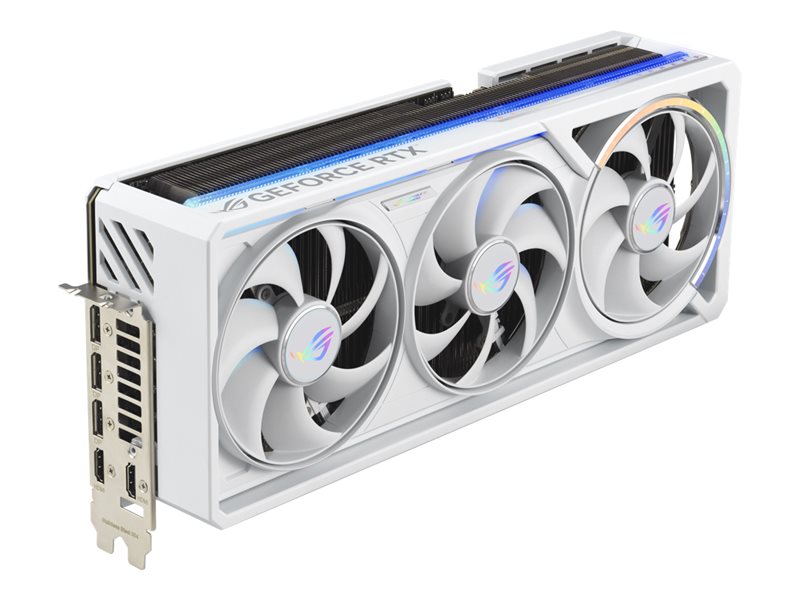

OC Edition - graphics card - GeForce RTX 5080 - 16 GB GDDR7 - PCI Express 5.0 - 2 x HDMI, 3 x DisplayPort - white
| Main Specifications | |
|---|---|
| Product Description | ASUS ROG Astral - OC Edition - graphics card - GeForce RTX 5080 - 16 GB - white |
| Device Type | Graphics card |
| Bus Type | PCI Express 5.0 |
| Graphics Engine | NVIDIA GeForce RTX 5080 - up to 1801 TOPS |
| Memory | 16 GB GDDR7 |
| Memory Speed | 30 Gbps |
| Boost Clock | 2760 MHz |
| Boost Clock (OC) | 2790 MHz |
| CUDA Cores | 10752 |
| Memory Interface | 256-bit |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 4 |
| Interfaces Details | 3 x DisplayPort ¦ 2 x HDMI |
| API Supported | OpenGL 4.6 |
| Dimensions (WxDxH) | 3 in x 14.1 in x 5.9 in |
| Enclosure Color | White |
| General | |
| Device Type | Graphics card |
| Bus Type | PCI Express 5.0 |
| Graphics Engine | NVIDIA GeForce RTX 5080 |
| Boost Clock | 2760 MHz |
| Boost Clock (OC) | 2790 MHz |
| CUDA Cores | 10752 |
| VR Ready | Yes |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 4 |
| Interfaces Details | 3 x DisplayPort ¦ 2 x HDMI |
| API Supported | OpenGL 4.6 |
| Features | 3.8-slot Fan Cooler, ASUS AURA SYNC support, ARGB Lighting, quad fan design, 5th gen Tensor Cores, 4th gen Ray Tracing Cores, NVIDIA DLSS 4, NVIDIA Reflex 2, NVIDIA Avatar Cloud Engine (ACE), NVIDIA G-Sync ready, NVIDIA Multi Frame Generation, 9th Gen NVIDIA Encoder, NVIDIA Blackwell GPU architecture, Axial-tech Fan Design, Vapor chamber cooling technology, MaxContact technology, phase-change thermal pad, ASUS GPU Guard, AUTO-EXTREME technology, ASUS FanConnect II, Dual Bios, HDCP |
| Memory | |
| Size | 16 GB |
| Technology | GDDR7 SDRAM |
| Memory Speed | 30 Gbps |
| Bus Width | 256-bit |
| Miscellaneous | |
| Included Accessories | Graphics card holder, hook-and-loop fastener, ROG magnet, ROG graphics card keycap, ROG PCB ruler, thank you card, 3 x 8 pin to 12VHPWR cable |
| Software Included | ASUS GPU Tweak III, MuseTree, Adobe Creative Cloud All Apps (1 month membership) |
| Compliant Standards | DisplayPort 2.1b, HDCP 2.3 |
| Width | 3 in |
| Depth | 14.1 in |
| Height | 5.9 in |
| Enclosure Color | White |
| System Requirements | |
| Required Power Supply | 850 W |
| Additional Requirements | 16 pin PCI Express power connector |
| Performance | |
| NPU Performance Up To (TOPS) | 1801 TOPS |
