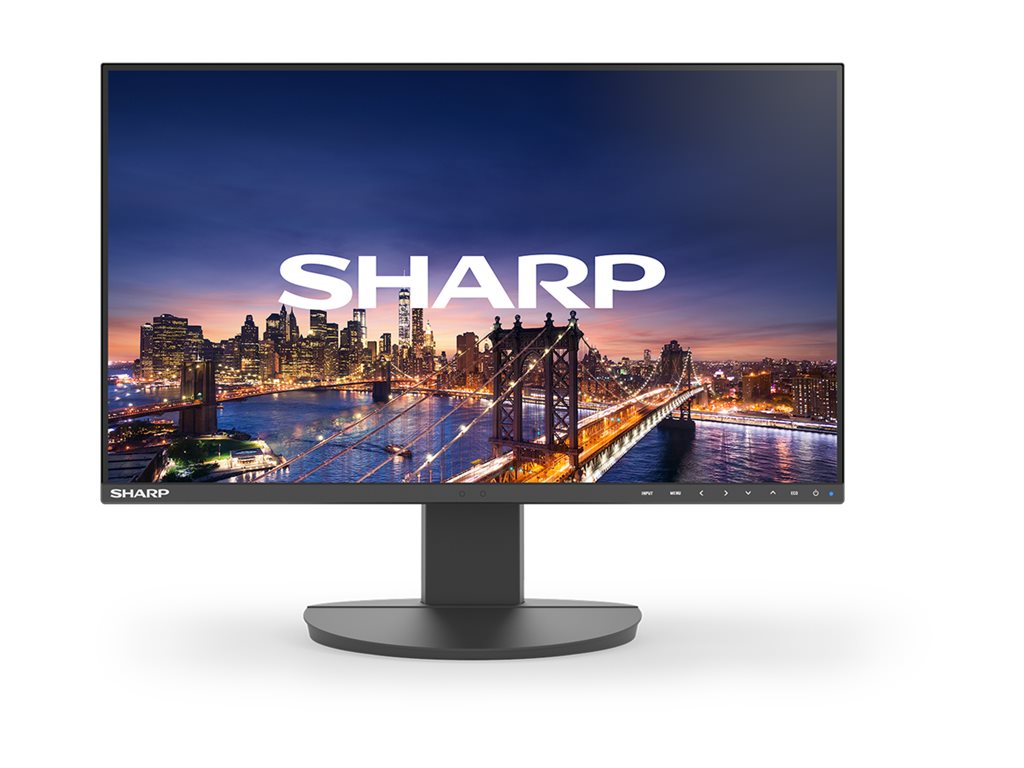

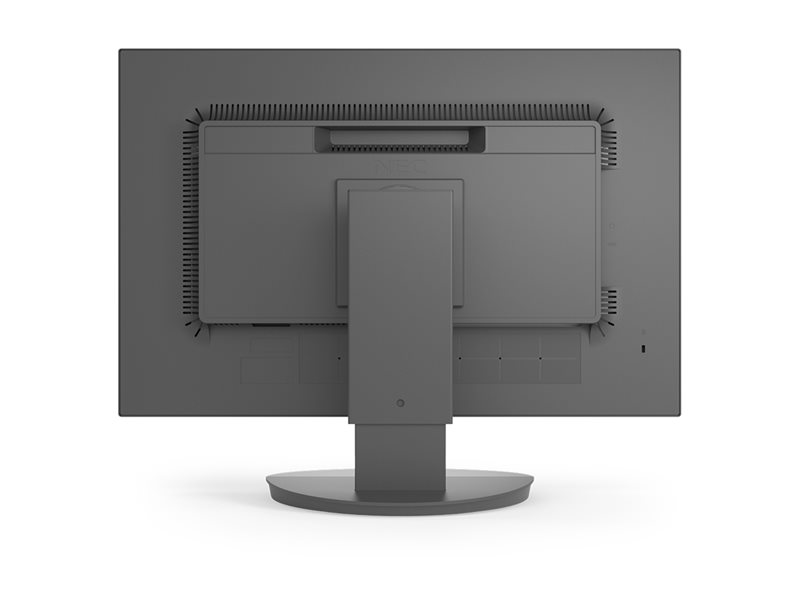

EA Series - LED monitor - 27" - 1920 x 1080 Full HD @ 60 Hz - AH-IPS - 240 cd/m² - 1000:1 - 6 ms - HDMI, VGA, DisplayPort, USB-C - speakers - black
| Main Specifications | |
|---|---|
| Product Description | Sharp MultiSync EA272F - EA Series - LED monitor - 27" |
| Device Type | LED-backlit LCD monitor - 27" |
| Energy Label QR Code URL | Https://eprel.ec.europa.eu/qr/2293395 |
| Energy Class | Class D |
| Features | USB 3.1 hub, USB-C hub, USB PD 65 watt |
| Panel Type | AH-IPS |
| Aspect Ratio | 16:9 |
| Native Resolution | Full HD 1920 x 1080 at 60 Hz |
| Pixel Pitch | 0.311 mm |
| Brightness | 240 cd/m² |
| Contrast Ratio | 1000:1 / 5000:1 (dynamic) |
| Response Time | 6 ms (typical) |
| Color Support | 16.8 million colors |
| Color Gamut | 102% sRGB, 75.5% Adobe RGB, 72% NTSC |
| Input Connectors | HDMI, VGA, DisplayPort, USB-C |
| Display Position Adjustments | Height, tilt, swivel, pivot (rotation) |
| Voltage | AC 100-240 V |
| Color | Black |
| Dimensions (WxDxH) - with stand (portrait orientation, lowest position) | 14.2 in x 9.8 in x 24.7 in |
| Weight | 20.28 lbs |
| Environmental Standards | ENERGY STAR Qualified |
| Compliant Standards | Plug and Play, EDID compatible, VESA DDCi, VESA DDC 2 Bi, EAC, ERP, ISO 9241-307 Class 1, PSB, RoHS, TUV Ergo, TUV GS, UL, C-UL, CSA, FCC Class B certified, WEEE |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Energy Label QR Code URL | Https://eprel.ec.europa.eu/qr/2293395 |
| Energy Class | Class D |
| Diagonal Size | 27" |
| Built-in Devices | USB 3.1 hub, USB-C hub |
| USB Power Delivery | 65 watt |
| Panel Type | AH-IPS |
| Aspect Ratio | 16:9 |
| Native Resolution | Full HD 1920 x 1080 at 60 Hz |
| Pixel Pitch | 0.311 mm |
| Brightness | 240 cd/m² |
| Contrast Ratio | 1000:1 / 5000:1 (dynamic) |
| Color Support | 16.8 million colors |
| Color Gamut | 102% sRGB, 75.5% Adobe RGB, 72% NTSC |
| Response Time | 6 ms (typical) |
| Vertical Refresh Rate | 55 - 75 Hz |
| Horizontal Refresh Rate | 31.5 - 83 kHz |
| Backlight Technology | LED backlight |
| Features | Flicker Free technology, Low Blue Light technology, Eco Mode, Auto Contrast, Carbon Footprint Meter, Carbon Savings Meter, ControlSync, DICOM Simulation, ErgoDesign, Human Sensor, ambient light sensor, Non-Touch-Auto-Adjustment (NTAA), One Touch Recovery, Auto Brightness Control, 24/7 operating mode |
| Color | Black |
| Dimensions (WxDxH) | 14.2 in x 9.8 in x 24.7 in - with stand (portrait orientation, lowest position) |
| Weight | 20.28 lbs |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years ¦ Limited warranty - backlight - 3 years |
| Miscellaneous | |
| Features | Security lock slot (cable lock sold separately) |
| Cables Included | 1 x DisplayPort cable ¦ 1 x ControlSync cable ¦ 1 x USB-C cable ¦ 1 x USB cable |
| Compliant Standards | Plug and Play, EDID compatible, VESA DDCi, VESA DDC 2 Bi, EAC, ERP, ISO 9241-307 Class 1, PSB, RoHS, TUV Ergo, TUV GS, UL, C-UL, CSA, FCC Class B certified, WEEE |
| Security Slot Type | Kensington security slot |
| Power | |
| Input Voltage | AC 100-240 V |
| Power Consumption SDR (On mode) | 15 kWh/1000h |
| Power Consumption (Typical) | 21 watt |
| Software / System Requirements | |
| Included Software | NaViSet |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 20 - 80% |
| Audio | |
| Type | Speakers - stereo |
| Output Power / Channel | 1 watt |
| Connectivity | |
| Interfaces | DisplayPort ¦ DisplayPort output ¦ HDMI ¦ USB-C ¦ 3 x USB 3.1 downstream ¦ USB 3.1 upstream ¦ VGA (HD-15) |
| Dimensions & Weight | |
| Dimensions & Weight Details | With stand (portrait orientation, lowest position) - width: 14.2 in - depth: 9.8 in - height: 24.7 in - weight: 20.3 lbs ¦ With stand (portrait orientation, highest position) - width: 14.2 in - depth: 9.8 in - height: 25.7 in - weight: 20.3 lbs ¦ With stand (lowest position) - width: 24 in - depth: 9.8 in - height: 14.7 in - weight: 20.3 lbs ¦ With stand (highest position) - width: 24 in - depth: 9.8 in - height: 20.8 in - weight: 20.3 lbs |
| Mechanical | |
| Display Position Adjustments | Height, tilt, swivel, pivot (rotation) |
| Tilt Angle | -5/+35 |
| Swivel Angle | 340 |
| Rotation Angle | 180 |
| Height Adjustment | 5.9 in |
| VESA Mounting Interface | 100 x 100 mm |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 8.0 |
