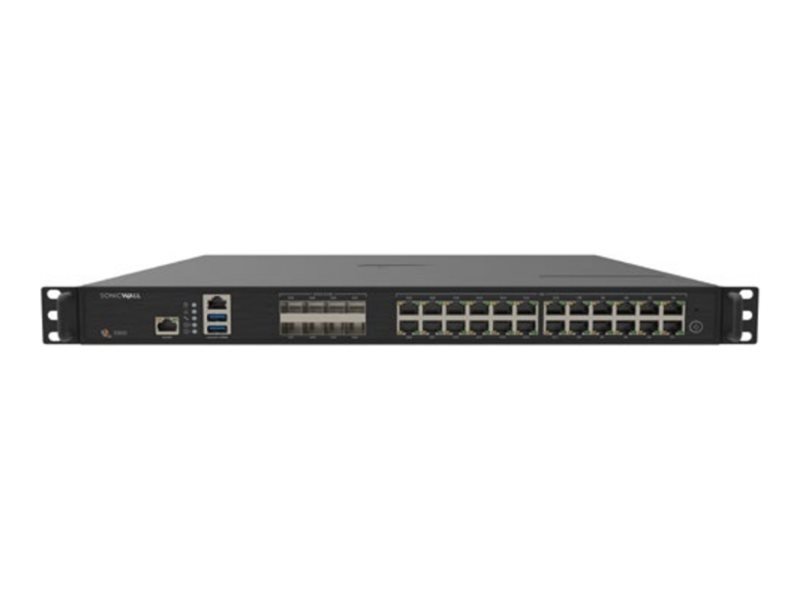

Security appliance - 24 ports - 2.5GbE, 5GbE, 10GbE - 1U - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | SonicWall Gen 8 NSa Series 5800 - security appliance |
| Device Type | Security appliance |
| Form Factor | Rack-mountable - 1U |
| Hard Drive | 256 GB x 1 |
| Ports Qty | 24 |
| Data Link Protocol | Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet |
| Performance | Firewall throughput: 30 Gbps ¦ Threat prevention throughput: 24 Gbps ¦ Application throughput: 24 Gbps ¦ IPS throughput: 24 Gbps ¦ Anti-malware throughput: 24 Gbps ¦ TLS/SSL inspection and decryption throughput: 8 Gbps ¦ VPN throughput (IPSec): 21 Gbps ¦ Connection rate: 240000 transactions per second |
| Capacity | Maximum number of VLANs: 512 ¦ Single Sign-On (SSO) users: 50000 ¦ Maximum number of access points: 512 ¦ SPI connections: 8000000 ¦ DPI connections: 5000000 ¦ TLS connections: 750000 ¦ VPN tunnels (site-to-site): 6000 ¦ IPSec VPN clients: 2000 (maximum 4000) ¦ SSL VPN licenses: 2 (maximum 1500) ¦ Authenticated users (internal database): 1000 |
| VoIP Protocols | SIP, H.323 v3, H.323 v4, H.323 v1, H.323 v2, H.323 v5 |
| OS Required | Windows 11, Windows 10, Android, Apple iOS, Apple MacOS X |
| Power | AC 100-240 V (50 - 60 Hz) |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 16.9 in x 18.1 in x 1.8 in |
| Weight | 16.31 lbs |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Security appliance |
| Height (Rack Units) | 1U |
| Width | 16.9 in |
| Depth | 18.1 in |
| Height | 1.8 in |
| Weight | 16.31 lbs |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Interfaces | 24 x 1000Base-T - RJ-45 ¦ 2 x USB 3.0 - Type A ¦ 1 x console - RJ-45 ¦ 1 x management - RJ-45 ¦ 8 x 1/2.5/5/10 Gigabit Ethernet - SFP+ |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, EMC, LVD, RoHS, C-Tick, VCCI Class A, MSIP, KCC Class A, UL, cUL, TUV GS, CB, Mexico CoC, WEEE, REACH, ANATEL, BSMI |
| Networking | |
| Form Factor | Rack-mountable |
| Ports Qty | 24 |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet |
| Network / Transport Protocol | TCP/IP, UDP/IP, ICMP/IP, IPSec, DHCP, PPPoE, L2TP, PPTP, HTTP, HTTPs |
| Routing Protocol | OSPF, RIP-1, RIP-2, BGP, static IP routing, policy-based routing (PBR), ECMP |
| Remote Management Protocol | SNMP 2, SNMP 3, SSH, CLI |
| Performance | Firewall throughput: 30 Gbps ¦ Threat prevention throughput: 24 Gbps ¦ Application throughput: 24 Gbps ¦ IPS throughput: 24 Gbps ¦ Anti-malware throughput: 24 Gbps ¦ TLS/SSL inspection and decryption throughput: 8 Gbps ¦ VPN throughput (IPSec): 21 Gbps ¦ Connection rate: 240000 transactions per second |
| Capacity | Maximum number of VLANs: 512 ¦ Single Sign-On (SSO) users: 50000 ¦ Maximum number of access points: 512 ¦ SPI connections: 8000000 ¦ DPI connections: 5000000 ¦ TLS connections: 750000 ¦ VPN tunnels (site-to-site): 6000 ¦ IPSec VPN clients: 2000 (maximum 4000) ¦ SSL VPN licenses: 2 (maximum 1500) ¦ Authenticated users (internal database): 1000 |
| Features | Advanced Threat Protection (ATP), SD-WAN support, Real-Time Deep Memory Inspection (RTDMI), Reassembly-Free Deep Packet Inspection (RFDPI), VPN support, URL filtering, content filtering, anti-spam protection, DNS filtering, DHCP server, DHCP relay, NAT support, Common Access Card (CAC) reader support, IPv6 support, High Availability, DDos attack prevention, IPv4 support, DNS proxy, Intrusion Prevention System (IPS), Stateful Packet Inspection (SPI), anti-malware protection, web threat protection, Jumbo Frames support, VLAN trunking, port mirroring, Quality of Service (QoS), Type of Service (ToS), Zero-touch provisioning (ZTP), load balancing, bandwidth control, Wi-Fi Multimedia (WMM) support, 3G/4G/LTE/5G USB Dongle Support, PAT support, Dead Peer Detection (DPD), NetFlow, IPFIX, anti-virus protection, DSCP Marking, Stateful switchover (SSO), Fast Roaming, Wireless Intrusion Detection System (WIDS), Wireless Intrusion Prevention System (WIPS), Mesh networking, beamforming technology |
| Encryption Algorithm | TLS 1.3, DES, Triple DES, 128-bit AES, 192-bit AES, 256-bit AES, MD5, SHA-1, ISAKMP, IKE |
| Authentication Method | SAML, LDAP, RADIUS, XAUTH authentication, TACACS+, internal user database |
| Compliant Standards | IEEE 802.3, IEEE 802.11k, IEEE 802.11r, IEEE 802.11v, IEEE 802.11s |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Power Redundancy | Optional |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Power Provided | 450 Watt |
| Software / System Requirements | |
| OS Provided | SonicOS 8.0 |
| OS Required | Windows 11, Windows 10, Android, Apple iOS, Apple MacOS X |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Processor / Memory / Storage | |
| Hard Drive | SSD 256 GB x 1 - M.2 |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 27.4 in |
| Shipping Depth | 23.4 in |
| Shipping Height | 8.3 in |
| Shipping Weight | 29.1 lbs |
| IP Telephony | |
| VoIP Protocols | SIP, H.323 v3, H.323 v4, H.323 v1, H.323 v2, H.323 v5 |
| IP Telephony Features | VoIP gatekeeper support, VoIP outbound bandwidth management |
