Video/audio/control/power extender - transmitter - HDBaseT - over CAT 5e/6/6a/7 - up to 230 ft
| Main Specifications | |
|---|---|

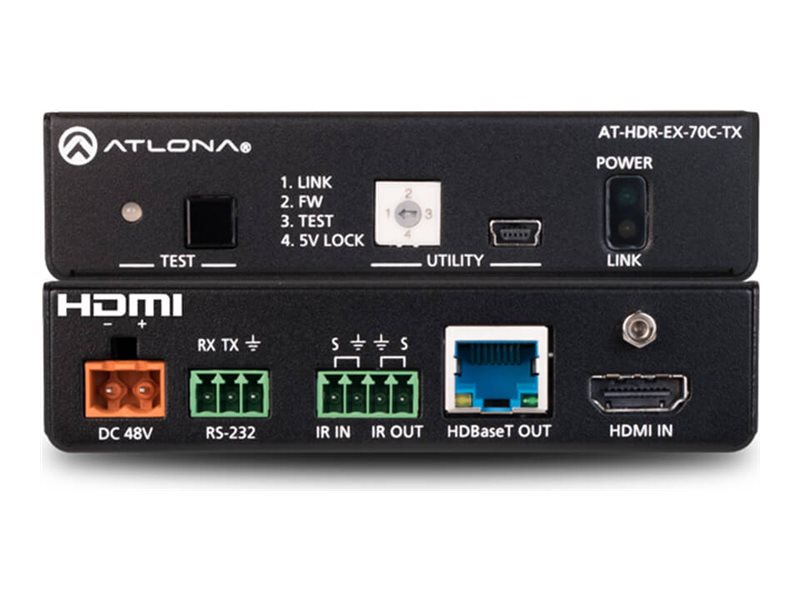

| Product Description | Atlona AT-HDR-EX-70C-TX - video/audio/control/power extender - HDBaseT |
| Device Type | Video/audio/control/power extender (transmitter) |
| Form Factor | Desktop / rack mountable |
| Data Link Protocol | HDBaseT |
| Transmission Medium | CAT 5e/6/6a/7 |
| Max Transfer Distance | 230 ft |
| Power | AC 100-240 V |
| Dimensions (WxDxH) | 4.3 in x 5 in x 1 in |
| Weight | 13.76 oz |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Video/audio/control/power extender (transmitter) |
| Form Factor | Desktop / rack mountable |
| Expansion / Connectivity | |
| Interfaces | 1 x HDBaseT output - RJ-45 female ¦ 1 x RS-232 (bi-directional) - 3 pin terminal block ¦ 1 x HDMI input - 19 pin HDMI Type A female ¦ 1 x IR (input / output) - 4 pin terminal block ¦ 1 x management - mini-USB Type B female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | NDAA Section 899, FCC, cULus, RoHS, CCC, RCM, HDCP 2.2 |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | HDBaseT |
| Max Transfer Distance | 230 ft |
| Status Indicators | Power, link, test mode |
| Features | Firmware upgradable, 10-bit Deep Color support, 12-bit Deep Color support, 4K60Hz support, 8-bit Deep Color support, Dolby Vision support, HDR10 support, Hybrid Log-Gamma (HLG) support, RGB 4:4:4, YUV 4:2:0, YUV 4:2:2, YUV 4:4:4, Dolby Atmos support, Dolby Digital Plus support, Dolby Digital support, DTS Digital Surround support, DTS:X support, DTS-HD Master Audio support, LPCM 2.0 support, LPCM 5.1 support, LPCM 7.1 support, 192 kHz audio sampling |
| Power | |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 6.07 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 20 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 4.3 in |
| Depth | 5 in |
| Height | 1 in |
| Weight | 13.76 oz |
