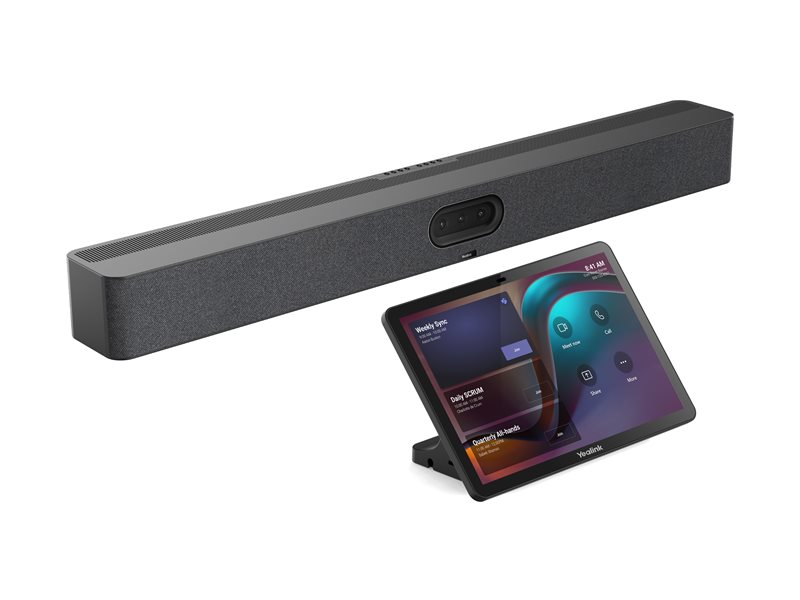

Video conferencing kit (CTP25 Touch Console, MeetingBar A50)
| Main Specifications | |
|---|---|
| Product Description | Yealink - video conferencing kit |
| Device Type | Video conferencing kit |
| Kit Content | CTP25 Touch Console, MeetingBar A50 |
| Dimensions (WxDxH) | 35.8 in x 4 in x 3.5 in |
| Weight | 18.74 lbs |
| Video Input | Triple digital video camera |
| Audio Input | 16-microphone array - MEMS-directional |
| Audio Output | Speaker(s) - stereo |
| Input Device | 10.1" touchscreen (wireless, wired) |
| Networking | Network adapter - Wi-Fi, Ethernet |
| General | |
| Device Type | Video conferencing kit |
| Kit Content | CTP25 Touch Console, MeetingBar A50 |
| Width | 35.8 in |
| Depth | 4 in |
| Height | 3.5 in |
| Weight | 18.74 lbs |
| Built-in Devices | 3 cameras, 16 microphone array, 4 x 5W speakers |
| Expansion / Connectivity | |
| Interfaces | 1 x SuperSpeed USB 3.0 - 9 pin USB Type A ¦ 1 x SuperSpeed USB 3.0 - Type B ¦ 1 x USB-C 2.0 - 24 pin USB-C ¦ 1 x network - RJ-45 ¦ 2 x Yealink VCH port - RJ-45 ¦ 1 x audio - line-out/line-in - mini-phone 3.5 mm ¦ 2 x audio / video - HDMI output - 19 pin HDMI Type A |
| Miscellaneous | |
| Mounting Kit | Included |
| Included Accessories | TV-clip mount, wall mount |
| Compliant Standards | Microsoft Teams certified, Zoom certification |
| Networking | |
| Type | Network adapter |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Wi-Fi, Ethernet |
| Software / System Requirements | |
| Software Included | Android 13 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 95% |
| Audio Output | |
| Type | Speaker(s) |
| Output Power / Channel | 20 Watt |
| Sound Output Mode | Stereo |
| Audio Input | |
| Type | 16-microphone array - integrated |
| Microphone Operation Mode | MEMS-directional |
| Input Device | |
| Type | 10.1" touchscreen |
| Connectivity Technology | Wireless, wired |
| Features | 1280 x 800 resolution, Bluetooth 5.0, Wi-Fi switch |
| Video Input | |
| Type | Triple digital video camera (color) - integrated |
| Digital Video Capture Resolution | 3840 x 2160 |
| Video Modes | 4K |
| Digital Zoom | 8 |
| Features | Microsoft MDEP compatible, 9 preset positions, electronic gimbal, 3 x 50 megapixels sensors, electric lens cap, lens correction control, IntelliFocus support, auto framing, speaker tracking, people counting, picture-in-picture capability, Smart Gallery, 10 m microphone pickup range, Qualcomm Snapdragon 8550 processor, AI noise reduction, secure boot, 2 x 41.6° HFOV / 31.8° VFOV Telephoto, 98° HFOV / 81° VFOV Wide, security lock slot (cable lock sold separately), reset button, Microsoft Teams compatible, Zoom compatible |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 20.94 lbs |
