Wireless router - WWAN 4-port switch - 1GbE - 4G
| Main Specifications | |
|---|---|

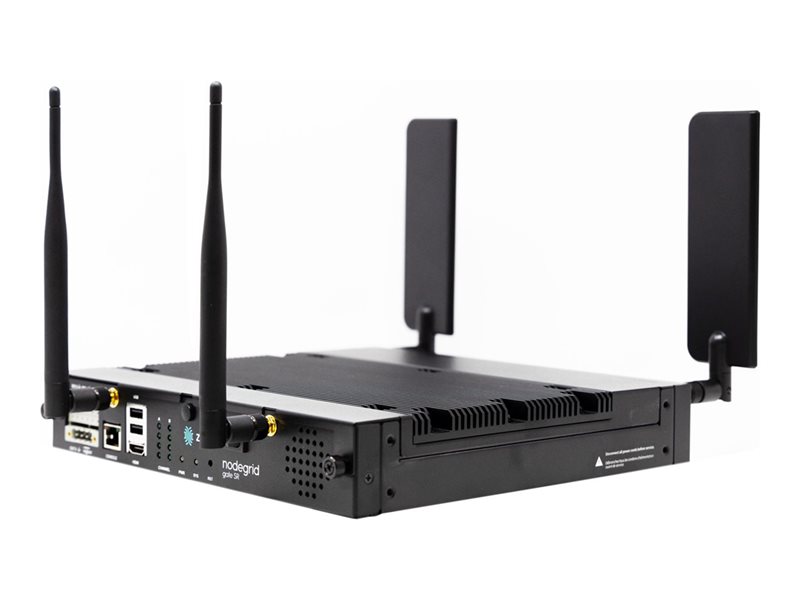

| Product Description | ZPE Nodegrid Gate SR - wireless router - WWAN - LTE - 4G - desktop |
| Device Type | Wireless router - wireless cellular modem - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| Cellular Protocol | LTE |
| Generation | 4G |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, LTE |
| Capacity | Simultaneous sessions: 1000+ |
| Network / Transport Protocol | TCP/IP, IPSec, HTTPs, IPv4, IPv6 |
| Remote Management Protocol | SNMP, Telnet, SSH-2 |
| Features | Port sharing, CLI management, port custom field support, port icon configuration, port search, break-over SSH support, web GUI management portal, device clustering across multiple Nodegrid units, direct access by port name, Zero Touch Auto Provisioning, NTP support, auto-discovery, user levels of access, global time zone support, SNMP support, 4096-bit encryption, VPN client, VPN Server, role based access control, password protection |
| Compliant Standards | X.509 |
| Power | DC 36 - 75 V |
| Dimensions (WxDxH) | 10.2 in x 9.5 in x 1.7 in |
| Weight | 31.74 oz |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wired, wireless |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, LTE |
| Capacity | Simultaneous sessions: 1000+ |
| Network / Transport Protocol | TCP/IP, IPSec, HTTPs, IPv4, IPv6 |
| Remote Management Protocol | SNMP, Telnet, SSH-2 |
| Encryption Algorithm | SSL, 4096-bit RSA, MD5, SHA, TLS |
| Authentication Method | X.509 certificates, LDAP, TACACS+, RADIUS, Kerberos |
| Features | Port sharing, CLI management, port custom field support, port icon configuration, port search, break-over SSH support, web GUI management portal, device clustering across multiple Nodegrid units, direct access by port name, Zero Touch Auto Provisioning, NTP support, auto-discovery, user levels of access, global time zone support, SNMP support, 4096-bit encryption, VPN client, VPN Server, role based access control, password protection |
| Compliant Standards | X.509, TLS v1.1, TLS v1.2, TLS v1.0, SSL, IP50, IEC 60950, IEC 62368, IEC 60068, EN 61000-3-2:2014, EN 61000-3-3:2013, IEC 61000-4-2:2008, IEC 61000-4-3:2006+A1:2007+A2:2010, IEC 61000-4-4:2012, IEC 61000-4-5:2014+A1:2017, IEC 61000-4-8:2009, IEC 61000-4-11:2004+A1:2017, EN 61000-4-2:2009, EN 61000-4-3:2006+A1:2008+A2:2010, EN 61000-4-4:2012, EN 61000-4-5:2014+A1:2017, EN 61000-4-6:2014+AC:2015, EN 61000-4-11:2004/A1:2017, EN 55032:2015/AC:2016, EN 55035:2017 |
| RAM | 32 GB DDR4 SDRAM |
| Hard Drive | 512 GB |
| Expansion / Connectivity | |
| Interfaces | Serial: 8 x RJ-45 ¦ 2 x 10GBase-T - SFP+ ¦ LAN: 5 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ LAN: 4 x 10Base-T/100Base-TX/1000Base-T (PoE+) - RJ-45 ¦ 2 x GPIO ¦ 1 x DO ¦ 2 x SuperSpeed USB 3.0 - 9 pin USB Type A ¦ 2 x USB 2.0 - 4 pin USB Type A ¦ 1 x HDMI - 19 pin HDMI Type A |
| Expansion Slots | 2 SIM |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | Mounting brackets |
| Power | |
| Voltage Required | DC 36 - 75 V |
| Power Consumption Operational | 45 Watt |
| Software / System Requirements | |
| OS Provided | Nodegrid OS (64-bit) |
| Software Included | Command Line Interface (CLI) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
| Communications | |
| Type | Wireless cellular modem |
| Cellular Protocol | LTE |
| Generation | 4G |
| Dimensions & Weight | |
| Width | 10.2 in |
| Depth | 9.5 in |
| Height | 1.7 in |
| Weight | 31.74 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 14.7 in |
| Shipping Depth | 13.7 in |
| Shipping Height | 7 in |
| Shipping Weight | 7.94 lbs |
| Antenna | |
| Antenna | External detachable |
| Antenna Qty | 4 |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
| Communications Technology | LTE Cat 12 |
