Graphics card - Arc Pro B60 - 24 GB GDDR6 - PCIe 5.0 x8 - 4 x DisplayPort
| Main Specifications | |
|---|---|
| Product Description | ASRock Creator - graphics card - Arc Pro B60 - 24 GB |
| Device Type | Graphics card |
| Bus Type | PCI Express 5.0 x8 |
| Graphics Engine | Intel Arc Pro B60 |
| Memory | 24 GB GDDR6 |
| Memory Speed | 19 Gbps |
| Core Clock | 2400 MHz |
| Memory Interface | 192-bit |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 4 |

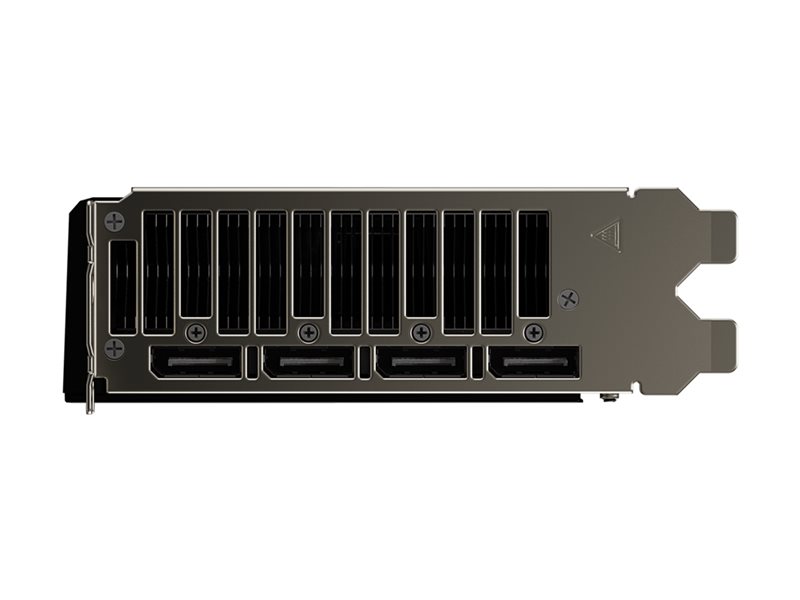

| Interfaces Details | 3 x DisplayPort (2.1 UHBR10) ¦ DisplayPort (2.1 UHBR 13.5) |
| Dimensions (WxDxH) | 1.5 in x 10.7 in x 4.4 in |
| General | |
| Device Type | Graphics card |
| Bus Type | PCI Express 5.0 x8 |
| Graphics Engine | Intel Arc Pro B60 |
| Core Clock | 2400 MHz |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 4 |
| Interfaces Details | 3 x DisplayPort (2.1 UHBR10) ¦ DisplayPort (2.1 UHBR 13.5) |
| Features | Intel Xe2 HPG Architecture, die cast metal shroud, Single Fan Design, Blower Fan, nickel plated copper base, metal backplate, 2-slot Fan Cooler, 0dB Technology, Super Alloy Power technology, 160 Intel XMX Engines, 20 Compute Units, HDCP |
| Memory | |
| Size | 24 GB |
| Technology | GDDR6 SDRAM |
| Memory Speed | 19 Gbps |
| Bus Width | 192-bit |
| Miscellaneous | |
| Compliant Standards | DisplayPort 2.1 |
| Width | 1.5 in |
| Depth | 10.7 in |
| Height | 4.4 in |
| Weight | 2.46 lbs |
| System Requirements | |
| Additional Requirements | 8 pin PCI Express power connector |
