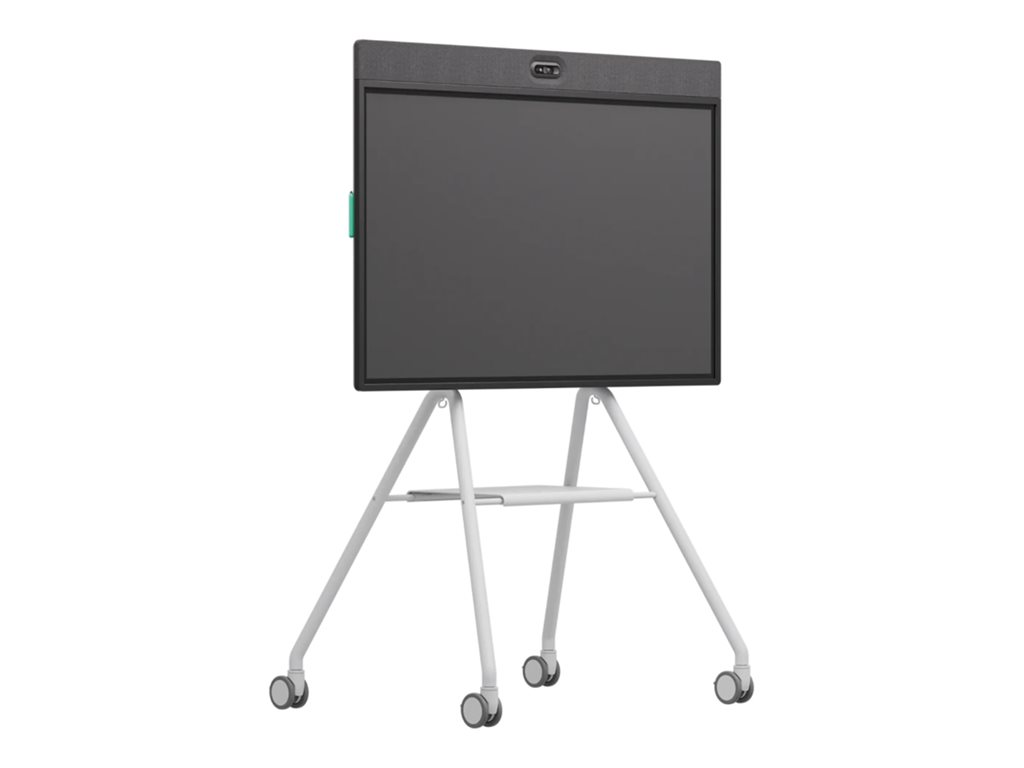

Video conferencing device - graphite - with Cart
| Main Specifications | |
|---|---|
| Product Description | Logitech Rally Board 65 - video conferencing device - with Cart |
| Device Type | Video conferencing device |
| Display | 65" 3840 x 2160 |
| Video Input | Digital video camera |
| Audio Input | Front facing microphone array and rear facing microphone array - beamforming |
| Audio Output | Speaker(s) |
| Networking | Network adapter - Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Bluetooth LE |
| Power | AC 100-240 V |
| System Requirements | Microsoft Windows 10 / 11, Android |
| Manufacturer Warranty | 2-year warranty |
| Bundled with | Cart |
| General | |
| Device Type | Video conferencing device |
| Dimensions & Weight Details | Main system - Width 59.1 in Depth 3 in Height 38.9 in Weight 101.4 lbs ¦ Main system with stand - Width 59.1 in Depth 15.6 in Height 41.4 in Weight 110.2 lbs ¦ Main system with cart - Width 59.1 in Depth 32 in Height 77.3 in Weight 209.4 lbs ¦ Cart - Weight 108 lbs |
| Built-in Devices | Front microphone array, rear microphone array, camera, dual speakers, dual tweeters, Ultra-Sonic emitter, motion sensor, environmental sensor, time-of-flight camera, ambient light sensor, depth sensor |
| Enclosure Color | Graphite |
| Bundled with | Cart |
| Expansion / Connectivity | |
| Interfaces | 1 x audio / video - HDMI output ¦ 1 x audio / video - HDMI input ¦ 3 x USB 3.1 - 9 pin USB Type A ¦ 1 x USB-C 3.1 - 24 pin USB-C ¦ 1 x audio - mini-phone 3.5 mm ¦ 1 x network ¦ 1 x network - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | 1 x USB active cable |
| Mounting Kit | Included |
| Included Accessories | 2 styluses, 2 tabletop legs, VESA mount (100mm), cable hook, assembly hardware and tools |
| Compliant Standards | AES-256, FSC |
| Networking | |
| Type | Network adapter |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Bluetooth LE |
| Network / Transport Protocol | IPv4, IPv6 |
| Features | FQDN proxy, IP proxy, PAC file proxy, BYOD mode, Public Key Infrastructure (PKI), symmetric key encryption, ARM TrustZone, AES encryption |
| Power | |
| Power Device | Power supply - internal |
| Voltage Required | AC 100-240 V |
| Software / System Requirements | |
| OS Required | Microsoft Windows 10 / 11, Android |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 10 - 95% |
| Audio Output | |
| Type | Speaker(s) |
| Output Power / Channel | 8 Watt |
| Total Harmonic Distortion (THD) | <2% |
| Audio Input | |
| Type | Front facing microphone array and rear facing microphone array - integrated |
| Microphone Operation Mode | Beamforming |
| Frequency Response | 90 - 16000 Hz |
| Display | |
| Diagonal Size | 65" |
| Native Resolution | 3840 x 2160 |
| Image Aspect Ratio | 16:9 |
| Image Brightness | 400 cd/m² |
| Image Contrast Ratio | 5000:1 |
| Monitor Features | Touch screen, 20-point IR touch, anti-fingerprint, anti-glare, integrated cable management |
| Video Input | |
| Type | Digital video camera (color) - integrated |
| Digital Video Capture Resolution | 3840 x 2160 |
| Video Modes | 4K, 1440p, 1080p, 900p, 720p, 480p |
| Digital Zoom | 4 |
| Camera Mechanical Design | Pan / tilt / zoom |
| Features | Microsoft Teams compatible, Zoom compatible, Google Meet compatible, RightSound 2 technology, RightSight 2 technology, AI noise reduction, motorized privacy shutter, +19° / -19° tilt, motorized tilt, 115.7° field of view (diagonal), 103.3° field of view (horizontal), 60.7° field of view (vertical), time-of-flight sensor, 20.3 megapixels resolution, Depth Blur technology |
| Video Output | |
| Supported Display Graphics | UHD (3840 x 2160) |
| Digital Video Standard | High-Definition Multimedia Interface (HDMI) |
