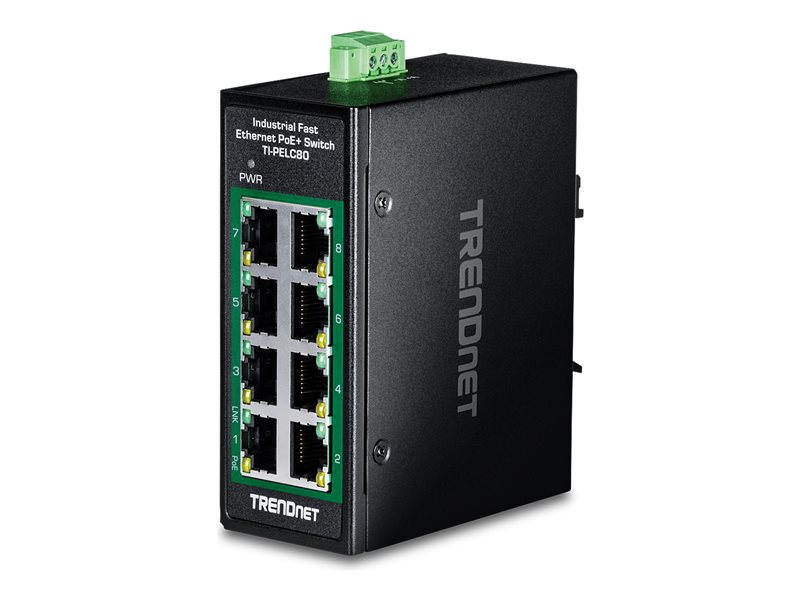

Version V1.xR - switch - industrial, mini - 8 x 10/100 (PoE+) - DIN rail mountable, wall-mountable - PoE+ (200 W) - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | TRENDnet TI-PELC80 - Version V1.xR - switch - industrial, mini - 8 ports - TAA Compliant |
| Device Type | Switch - 8 ports |
| Subtype | Fast Ethernet |
| Ports | 8 x 10/100 (PoE+) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 200 W |
| Performance | Switching capacity: 1.6 Gbps ¦ Forwarding performance (64-byte packet size): 1.19 Mpps |
| Capacity | RAM buffer: 1 MB |
| MAC Address Table Size | 1K entries |
| Features | Hardened, metal housing, LED status indicators, half duplex mode, full duplex mode, auto-negotiation, store and forward, 6KV ESD Protector, rugged, vibration-resistant, shock-resistant, PoE pin assignment, mini size, ground points, automatic address learning, automatic address aging |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at |
| Power | DC 48 - 56 V |
| Dimensions (WxDxH) | 1.5 in x 3.9 in x 3.2 in |
| Weight | 11.99 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Switch - 8 ports |
| Enclosure Type | DIN rail mountable, wall-mountable |
| Subtype | Fast Ethernet |
| Ports | 8 x 10/100 (PoE+) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 200 W |
| Performance | Switching capacity: 1.6 Gbps ¦ Forwarding performance (64-byte packet size): 1.19 Mpps |
| Capacity | RAM buffer: 1 MB |
| MAC Address Table Size | 1K entries |
| Features | Hardened, metal housing, LED status indicators, half duplex mode, full duplex mode, auto-negotiation, store and forward, 6KV ESD Protector, rugged, vibration-resistant, shock-resistant, PoE pin assignment, mini size, ground points, automatic address learning, automatic address aging |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at |
| Status Indicators | Link/activity, PoE, power |
| Expansion / Connectivity | |
| Interfaces | 8 x 10/100 Base-TX (PoE+) RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | DIN-rail mounting kit, wall mounting kit, removable terminal block |
| MTBF | 560,321 hours |
| Compliant Standards | NDAA, IP30, FCC, IEC 60068-2-27, EN 60068-2-31, EN 60068-2-6, IEC 61000-4-2, IEC 61000-4-4 |
| TAA Compliant | Yes |
| Power | |
| Power Device | External power adapter (not included) |
| Voltage Required | DC 48 - 56 V |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 167 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 1.5 in |
| Depth | 3.9 in |
| Height | 3.2 in |
| Weight | 11.99 oz |
