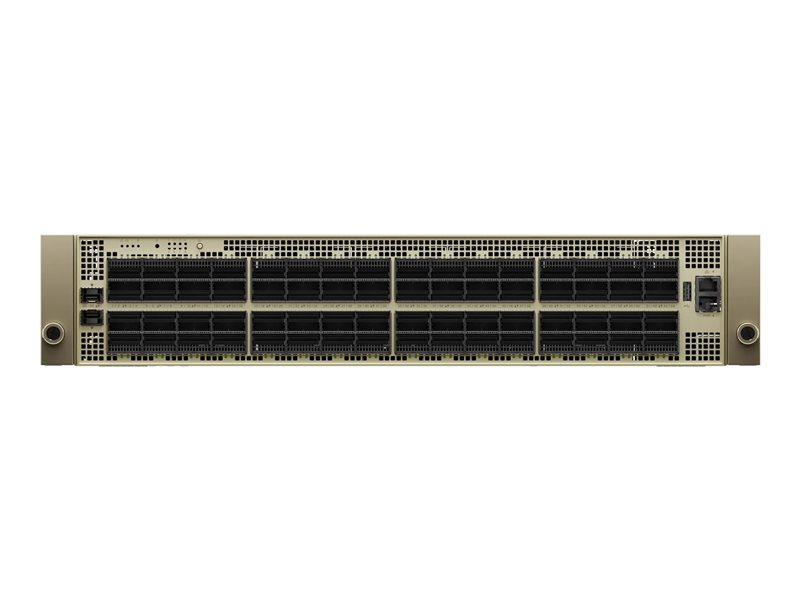

Switch - 64 x 800 Gigabit OSFP + 1 x 25 Gigabit SFP28 - front to back airflow - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | NVIDIA Spectrum-4 SN5000 Series SN5610 - switch - 66 ports - rack-mountable |
| Device Type | Switch - 66 ports |
| Enclosure Type | Front to back airflow rack-mountable 2U |
| Subtype | 800 Gigabit Ethernet |
| Ports | 64 x 800 Gigabit OSFP + 1 x 25 Gigabit SFP28 |
| Performance | Throughput: 51.2 Tbps |
| Power | AC 200-240 V |
| Dimensions (WxDxH) | 16.9 in x 31 in x 3.4 in |
| Weight | 59.3 lbs |
| General | |
| Device Type | Switch - 66 ports |
| Enclosure Type | Front to back airflow rack-mountable 2U |
| Subtype | 800 Gigabit Ethernet |
| Ports | 64 x 800 Gigabit OSFP + 1 x 25 Gigabit SFP28 |
| Performance | Throughput: 51.2 Tbps |
| Processor | X AMD EPYC 3251 |
| RAM | 32 GB |
| Flash Memory | 80 GB |
| Expansion / Connectivity | |
| Interfaces | 64 x 10/25/50/100/200/400/800GBase-X OSFP ¦ 2 x 1/10/25GBase-X SFP28 |
| Expansion Slots | PCI Express 3.0 x4 |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| Compliant Standards | CB, cTUVus, CU, S Mark, FCC, ICES, RCM, BSMI, KCC, CCC, RoHS |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 4 |
| Voltage Required | AC 200-240 V |
| Power Consumption Operational | 900 Watt |
| Software / System Requirements | |
| Software Included | Cumulus Linux |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 85% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 10 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 16.9 in |
| Depth | 31 in |
| Height | 3.4 in |
| Weight | 59.3 lbs |
