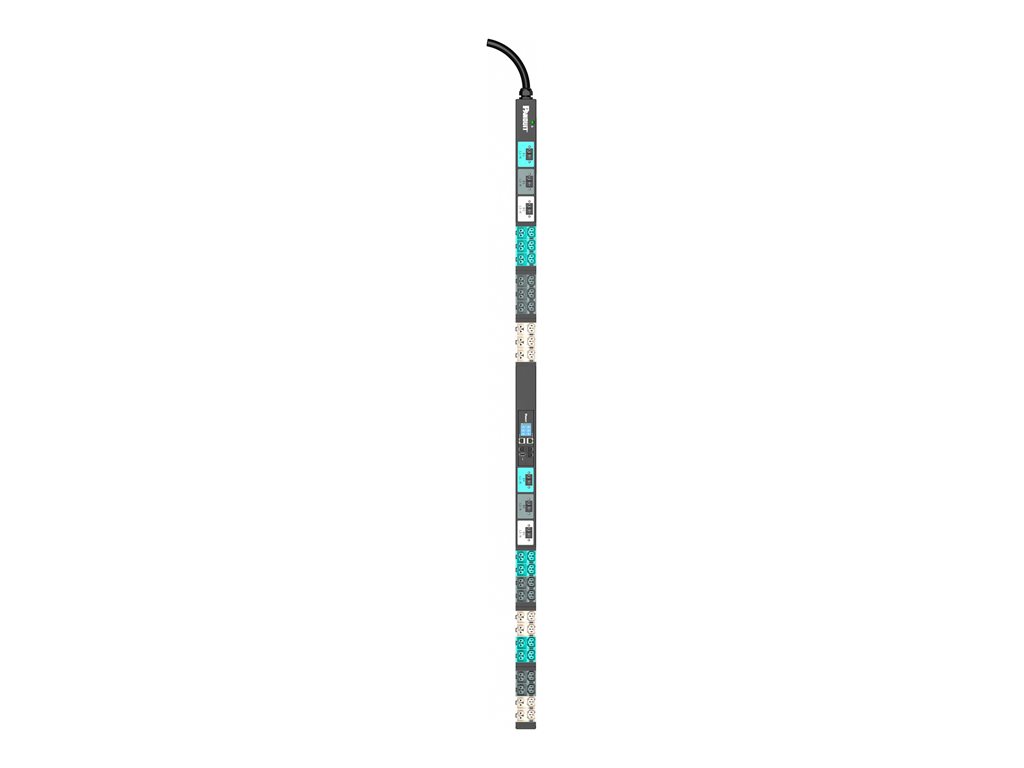

Power distribution unit (rack-mountable) - input monitored - AC 240 V - 17300 VA - 3-phase - Ethernet 10/100/1000 - input: NEMA L22-30P - output connectors: 42 (21 x IEC 60320 C13/C15, 21 x IEC 60320 C13/C15/C19/C21) - 0U - 10 ft cord - United States, Canada - black
| Main Specifications | |
|---|---|
| Product Description | Panduit EL2P Intelligent - power distribution unit - input monitored - 17300 VA |
| Device Type | Power distribution unit - rack-mountable |
| Cord Length | 10 ft |
| Rack Size | 0U |
| Localization | United States, Canada |
| Input Wiring | 3-phase |
| Input Voltage | AC 240 V |
| Output Voltage | AC 240 V |
| Power Capacity | 17300 VA |
| Input Connectors | 1 x power NEMA L22-30P |
| Output connectors | 21 x power IEC 60320 C13/C15 ¦ 21 x power IEC 60320 C13/C15/C19/C21 |
| Networking | Ethernet 10/100/1000 |
| Color | Black |
| Dimensions (WxDxH) | 2.3 in x 3 in x 70.1 in |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Cord Length | 10 ft |
| Color | Black |
| Localization | United States, Canada |
| Expansion / Connectivity | |
| Interfaces | 2 x management (Gigabit Ethernet) - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Cables Included | Power cable - integrated - 10 ft |
| Rack Mounting Kit | Included |
| Features | Vertical orientation |
| Compliant Standards | CB, NRTL, RoHS, REACH, IPv6 Ready, Redfish API |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000 |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 140 °F |
| Power Device | |
| Input Voltage | AC 240 V |
| Input Wiring | 3-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L22-30P |
| Power Output Connectors Details | 21 x power IEC 60320 C13/C15 ¦ 21 x power IEC 60320 C13/C15/C19/C21 |
| Output Voltage | AC 240 V |
| Max Electric Current | 30 A |
| Power Capacity | 17300 VA |
| Circuit Protection | Circuit breaker |
| Dimensions & Weight | |
| Width | 2.3 in |
| Depth | 3 in |
| Height | 70.1 in |
