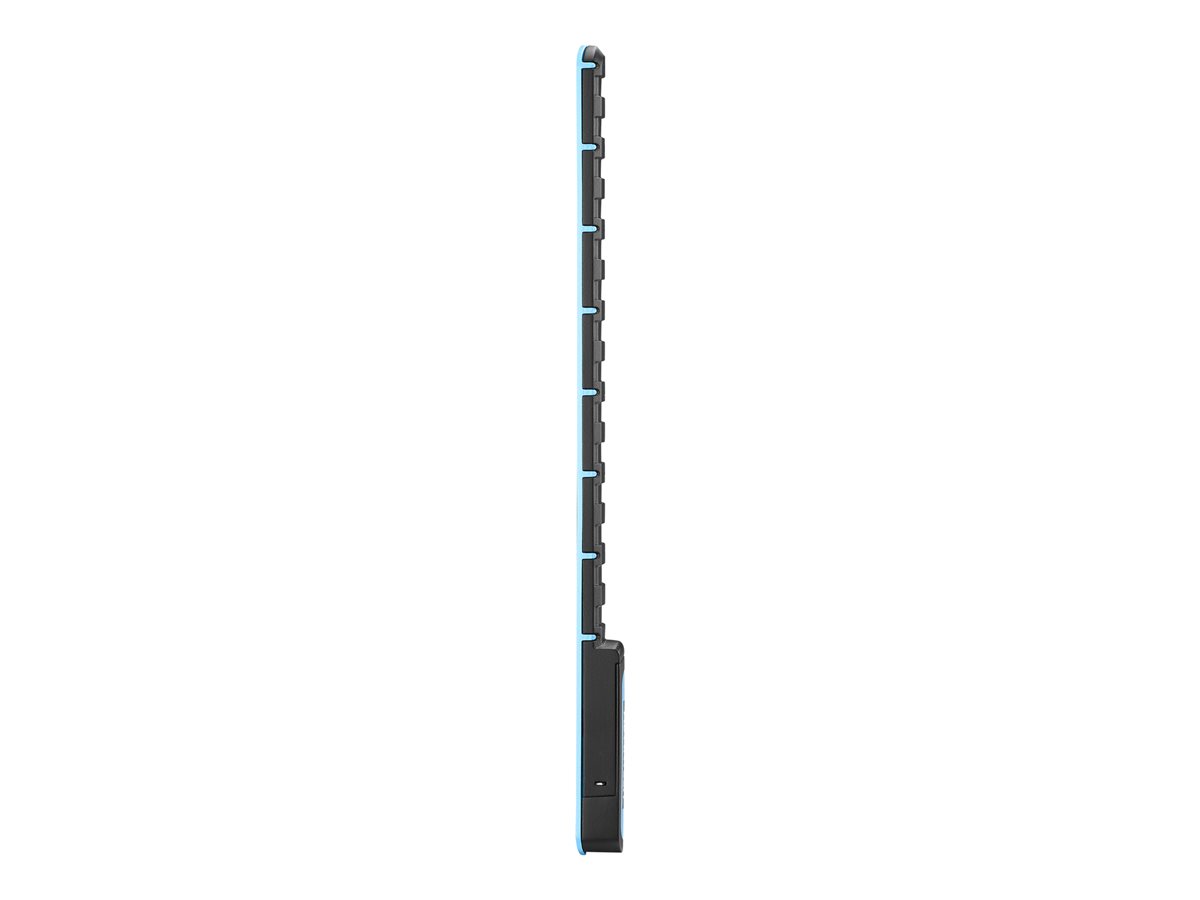

Light monitoring sensor - wired - serial RS-485
| Main Specifications | |
|---|---|
| Product Description | Advantech WISE-S100 - light monitoring sensor |
| Product Type | Light monitoring sensor |
| Integrated Sensors | 8 ambient light sensors |
| Power Source | Hardwired |
| Connectivity | Wired - serial RS-485 |
| Dimensions (WxDxH) | 0.6 in x 8.7 in x 0.5 in |
| General | |
| Product Type | Light monitoring sensor |
| Integrated Sensors | 8 ambient light sensors |
| Power Source | Hardwired |
| Connectivity Technology | Wired - Modbus, RS-485 |
| Features | LED indicators, 15% accuracy, 12 bit resolution Modbus TCP/RTU gateway |
| Miscellaneous | |
| Product Material | Polycarbonate (PC) |
| Compliant Standards | FCC Class A certified |
| Environmental Parameters | |
| Min Operating Temperature | -13 °F |
| Max Operating Temperature | 158 °F |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 0.6 in |
| Depth | 8.7 in |
| Height | 0.5 in |
