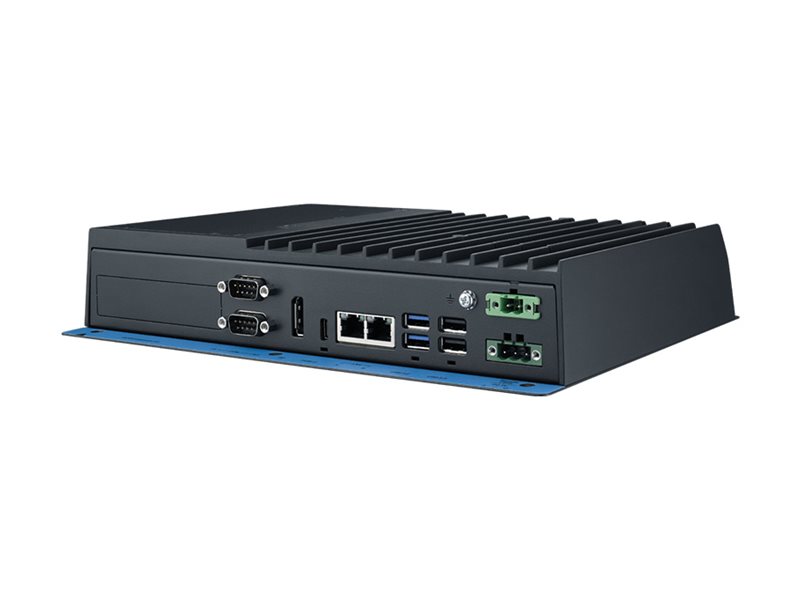

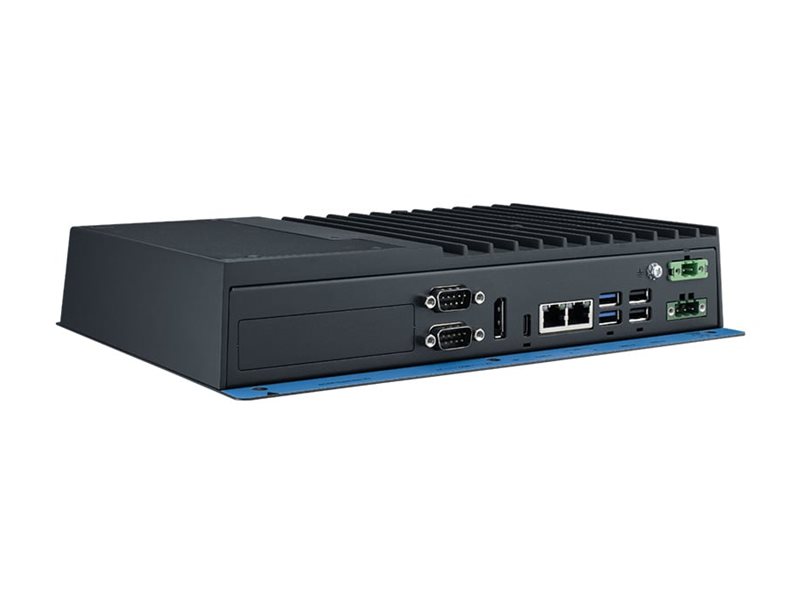

Computing box Core i5 i5-1335UE / up to 4.5 GHz - RAM 0 GB - no HDD - Intel Iris Xe Graphics - Gigabit Ethernet, 2.5 Gigabit Ethernet - monitor: none
| Main Specifications | |
|---|---|
| Product Description | Advantech TPC-B520 - computing box Core i5 i5-1335UE 1.3 GHz - 0 GB - no HDD |
| Type | Personal computer - computing box |
| Processor | Intel Core i5 (13th Gen) i5-1335UE / 1.3 GHz (up to 4.5 GHz, (10-core) |
| Cache Memory | 12 MB |
| Cache Per Processor | 12 MB |
| RAM | 0 GB (installed) / 32 GB (max) - DDR5 SDRAM |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Graphics Controller | Intel Iris Xe Graphics |
| Networking | 1GbE, 2.5GbE |
| Dimensions (WxDxH) | 10.6 in x 8 in x 2 in |
| Weight | 6.17 lbs |
| General | |
| Type | Personal computer |
| Product Form Factor | Computing box |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Expansion / Connectivity | |
| Bays | 1 internal 2.5" |
| Slots | 1 (total) / 1 (free) x M.2 Type B - 2280 ¦ 1 (total) / 1 (free) x M.2 Type E - 2230 |

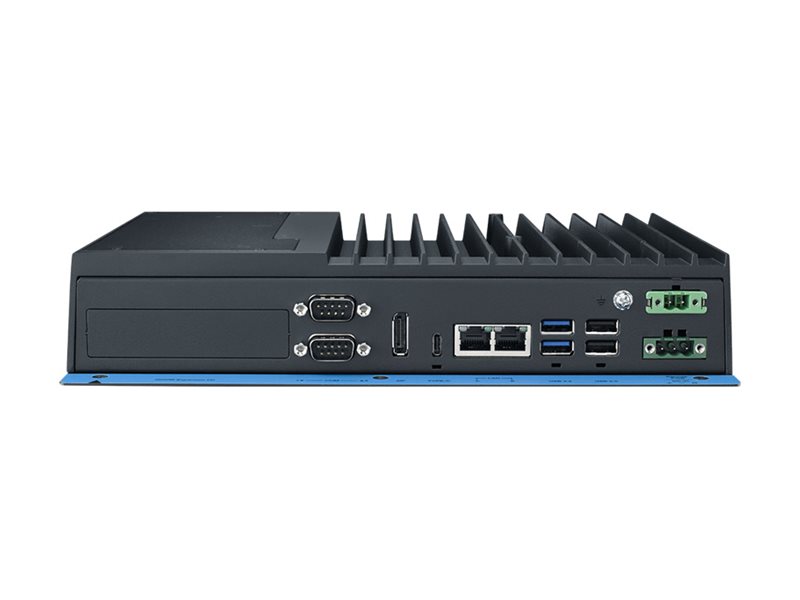

| Interfaces | 2 x USB 2.0 ¦ 2 x LAN (2.5Gigabit Ethernet) ¦ 2 x serial ¦ 2 x USB 3.1 ¦ 1 x USB-C ¦ 1 x DisplayPort output |
| Miscellaneous | |
| Compliant Standards | BIS, BSMI, CB, CCC, EMI FCC Class A, RoHS, UL, IP66 front |
| RAM | |
| Installed Size | 0 GB (installed) / 32 GB (max) |
| Technology | DDR5 SDRAM |
| Effective Memory Speed | 2400 MHz 4800 MT/s |
| Form Factor | SO-DIMM 288-pin |
| Networking | |
| Ethernet Ports | 2 x 2.5 Gigabit Ethernet |
| Ethernet Controller | Intel I226-V |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Power | |
| Voltage Required | 19 - 24 V |
| Power Consumption Operational | 29 watt |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 0 - 95% RH (non-condensing) |
| Cache Memory | |
| Installed Size | 12 MB |
| Cache Per Processor | 12 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel Iris Xe Graphics |
| Video Interfaces | DisplayPort |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 10.6 in |
| Depth | 8 in |
| Height | 2 in |
| Weight | 6.17 lbs |
| Card Reader | |
| Supported Flash Memory Cards | Nano SIM Card |
| Processor / Chipset | |
| CPU | Intel Core i5 (13th Gen) i5-1335UE |
| Clock Speed | 1.3 GHz |
| Max Turbo Speed | 4.5 GHz |
| Number of Cores | 10-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
