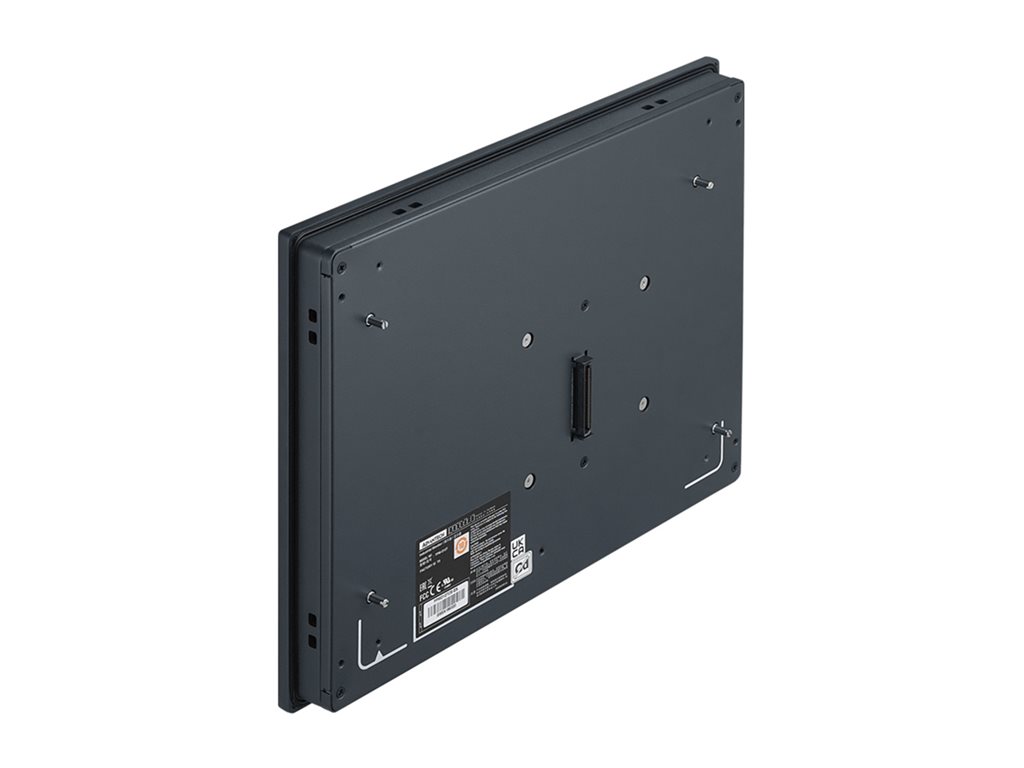

LED monitor - 12" - open frame - touchscreen - 1024 x 768 XGA - 1000 cd/m² - 1000:1
| Main Specifications | |
|---|---|
| Product Description | Advantech FPM-D12T-HE - LED monitor - 12" |
| Device Type | LED-backlit LCD monitor - 12" - touchscreen |
| Features | Touchscreen |
| Aspect Ratio | 4:3 |
| Native Resolution | XGA 1024 x 768 |
| Brightness | 1000 cd/m² |
| Contrast Ratio | 1000:1 |
| Color Support | 16.7 million colors |
| Screen Coating | Anti-glare |
| Dimensions (WxDxH) | 12.3 in x 1.1 in x 9.4 in |
| Weight | 5.29 lbs |
| Compliant Standards | FCC Class A certified, UL, BSMI, CCC, IP66 |
| General | |
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Diagonal Size | 12" |
| Aspect Ratio | 4:3 |
| Native Resolution | XGA 1024 x 768 |
| Brightness | 1000 cd/m² |
| Contrast Ratio | 1000:1 |
| Color Support | 16.7 million colors |
| Horizontal Viewing Angle | 178 |
| Vertical Viewing Angle | 174 |
| Screen Coating | Anti-glare |
| Backlight Technology | LED backlight |
| Features | Projected Capacitive Touch (P-CAP) technology |
| Dimensions (WxDxH) | 12.3 in x 1.1 in x 9.4 in |
| Weight | 5.29 lbs |
| Miscellaneous | |
| Backlight Life | 50,000 hours |
| Compliant Standards | FCC Class A certified, UL, BSMI, CCC, IP66 |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 140 °F |
| Input | |
| Type | Touchscreen - touchscreen |
| Movement Detection Technology | Capacitance intelligence (PCAP) |
